Need IBIS Model of CYCLONE II EPLD

Please provide IBIS model of CYCLONE II EPLD part number.

3 Replies

  • ak6dn's avatar
    ak6dn
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    If you have the QuartusII 13.0sp1 tools installed (which is the last version to support the CycloneII family) you can use the tool to generate IBIS (or HSPICE) simulation models for specific I/O cells you select.

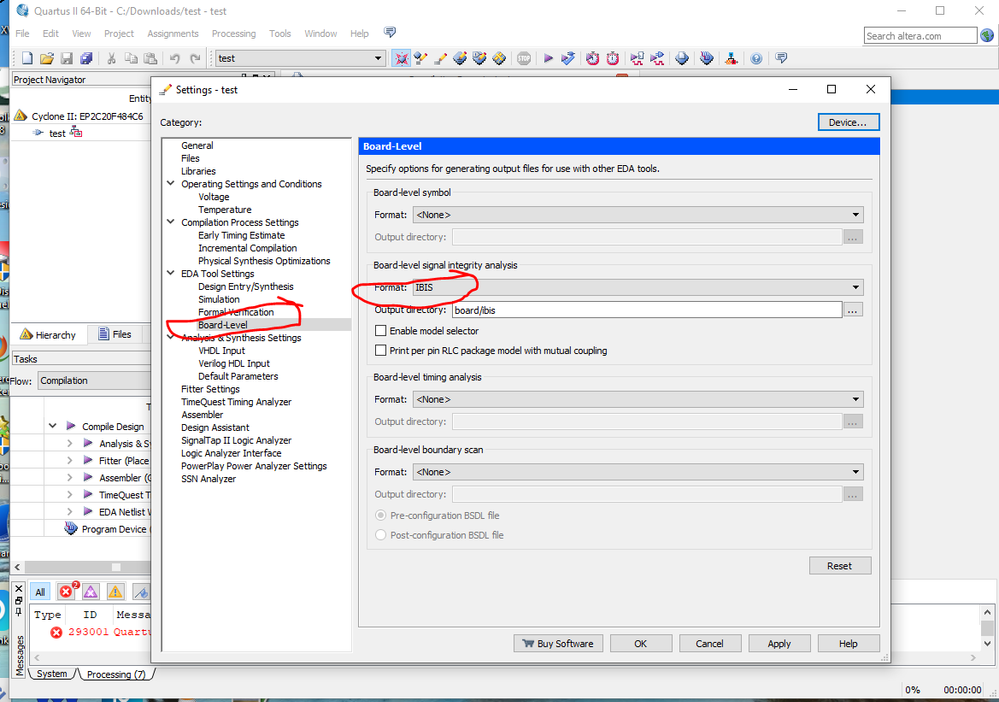

    Under assignments / settings setup for IBIS models and then use the tool to generate them for your design.

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hello Simran,


    Have you tried the method mentioned by @ak6dn ? Do you get the IBIS model for the device?


    Regards,

    Aqid Ayman


  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    We do not receive any response from you to the previous question/reply/answer that have been provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
