New ContributorI am using Max 10 device 10M40DAF484C8G in my design. It is a 484-Pin FineLine Ball-Grid Array (FBGA) - Wire Bond. In the package Information the tolerance for body dimension is not provided for footprint creation (for assembly tolerance). How and where to get the information?
Thanks,
Madhura
ContributorHi Madhura,
Thank you for contacting Intel Community. Sorry to let you know that Intel FPGA do not provide support for PCB footprint symbols for FPGA and CPLD device families, similar to configuration devices.
However, we will continue the support by providing the schematic symbol which you can download from the link above. You could have the schematic symbol in .olb format from the link below:
Thank you
Regards,
Chia Ling
Occasional ContributorHi Madhura,

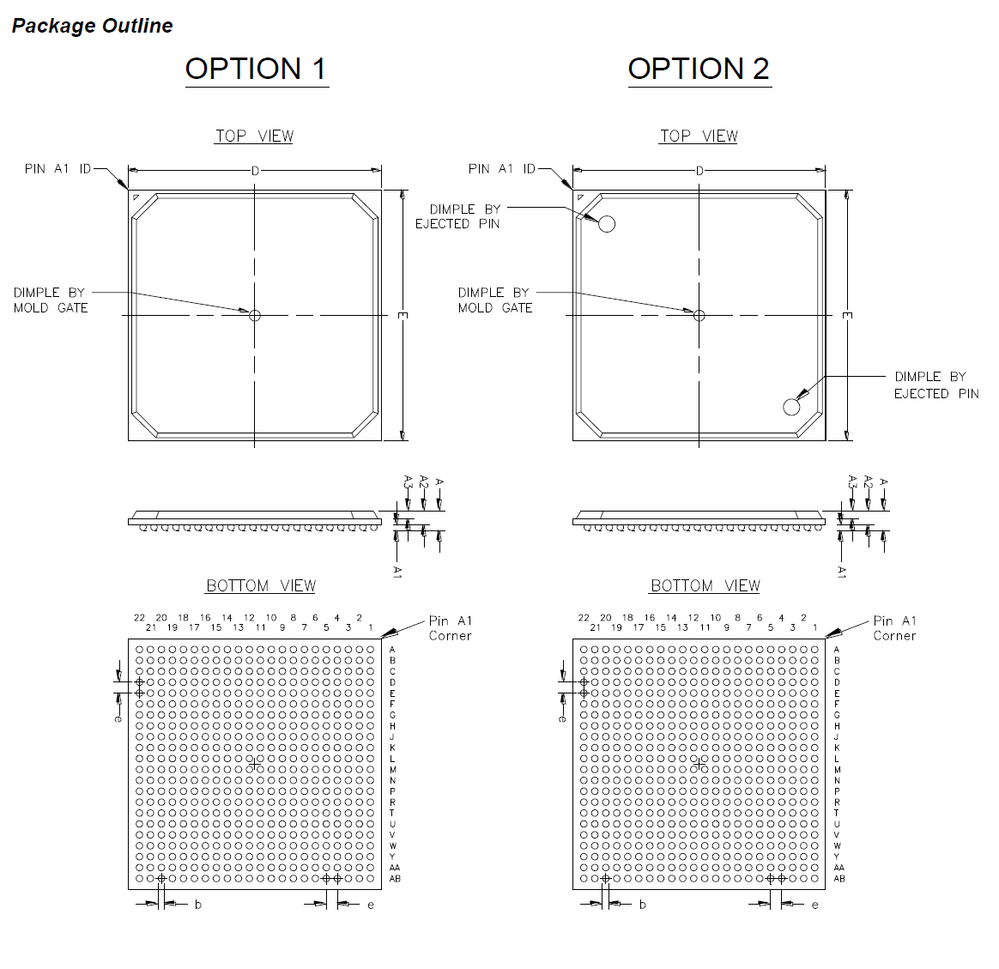

I assume the question is about the BSC meaning in case of a package outline dimension and not connected with a PCB footprint symbol library.

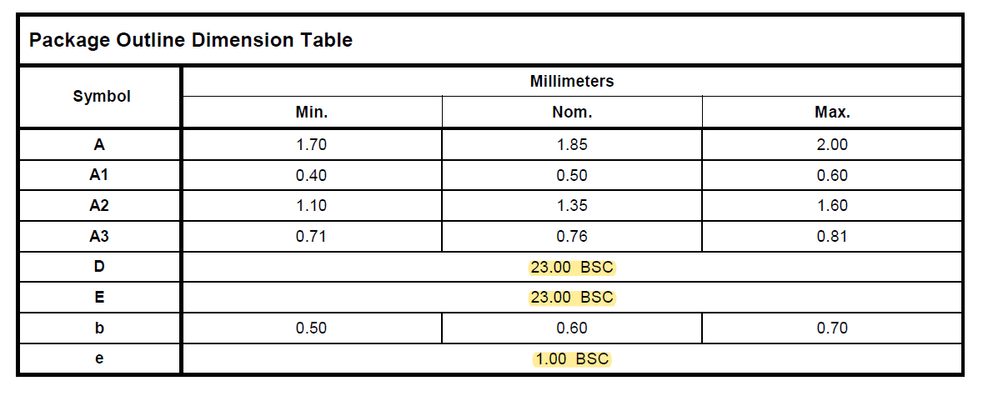

BSC means basic spacing between centers. For further information I would recommend to check to the following web pages:
- https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/rd07152011_585.html
- https://www.xilinx.com/support/answers/8393.html
Regards,
Martin
