Is it possible to simulate with the ModelSim Altera Edition (free) the On-Chip Flash Intel FPGA IP? I am able to simulate with questa-sim at my work place, but I get an error (below) when trying to simulate at home with the free version.

Hi Kermit,

Yes, files will be encrypted.

Regarding error

You must compile Altera simulation model files before simulating an Altera design.

You can use any of the following methods to compile Altera simulation models.

To compile all required libraries at once with EDA Simulation Library Compiler, follow these steps:

1. On the Tools menu, click Launch EDA simulation library compiler.
2. Under EDA simulation tool, in the Tool name box, select a simulation tool. The Executable location box displays the location of the simulation tool you specified. You must set this location before you can run the EDA Simulation Library Compiler.
3. Under Library families, select one or more family names and move them to the Selected families list.
4. Under Library language, select VHDL, Verilog, or both.
5. In the Output directory field, specify a location in which to store the compiled libraries.
6. Click Start Compilation.

Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

Regards

Anand

Anand,

Thanks for getting back to me. I am using Quartus Prime Lite edition 18.1 with the Modelsim-Altera (free) simulator and I am not allowed to Launch EDA simulation Library compiler. I get the following message:

I have created a test fpga that shows the problem I am having. To keep the size smaller, you will have to

1. Unzip the file testfpga.zip to your c drive .

2. Use quartus prime lite 18.1 to open the project testfpga.qpf

3. Compile the project

4. Simulate with Tools/Run Simulation Tool/RTL Simulation and you should see the problem.

5. I am able to compile the individual IP OK, but vsim has the problem not being able to access fiftyfivenm_ver, etc

Yes, You can check that in transcript.

modelsim_ase(Altera Starter Edition).

Okay,

Please read msim_setup.tcl file. Your design testfpga is having two IP we have to use both msim_setup.tcl and create a simple script like below and use.

in msim_setup.tcl add under Elaborate session add => -L dual_boot_0 -L onchip_flash_0

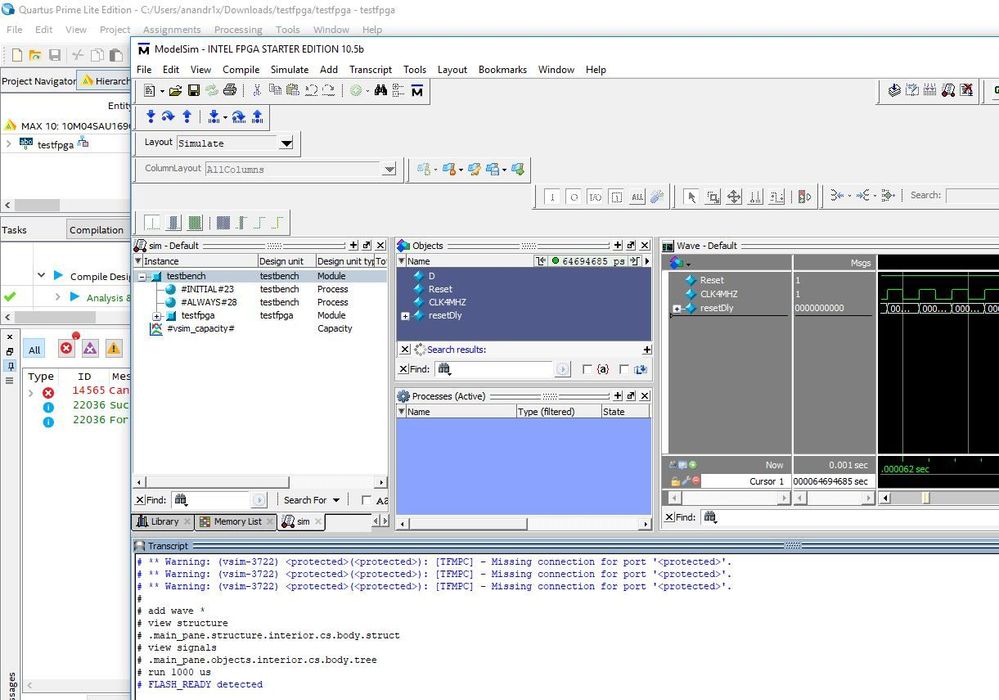

Commands which i ran in modelsim

source C:/Users/anandr1x/Downloads/testfpga/dual_cfg_ip/simulation/mentor/msim_setup.tcl

source C:/Users/anandr1x/Downloads/testfpga/flash_ip/simulation/mentor/msim_setup.tcl

vlog C:/Users/anandr1x/Downloads/testfpga/testbench.v

vlog C:/Users/anandr1x/Downloads/testfpga/testfpga.v

set TOP_LEVEL_NAME testbench

com

elab

Regards

Anand

Thanks for your patience Anand. I unzipped the file and ran the commands exactly as you have indicated with the same result: "# ** Error: (vsim-3033) c:/testfpga/flash_ip/synthesis/submodules/altera_onchip_flash.v(309): Instantiation of 'altera_onchip_flash_block' failed. The design unit was not found.# Time: 0 ps Iteration: 0 Instance: /testbench/testfpga/flash_ip/onchip_flash_0 File: c:/testfpga/flash_ip/synthesis/submodules/altera_onchip_flash.v"

It also couldn't find dual_cfg_ip. The transcript is attached.

Kindly redo the project and check.
