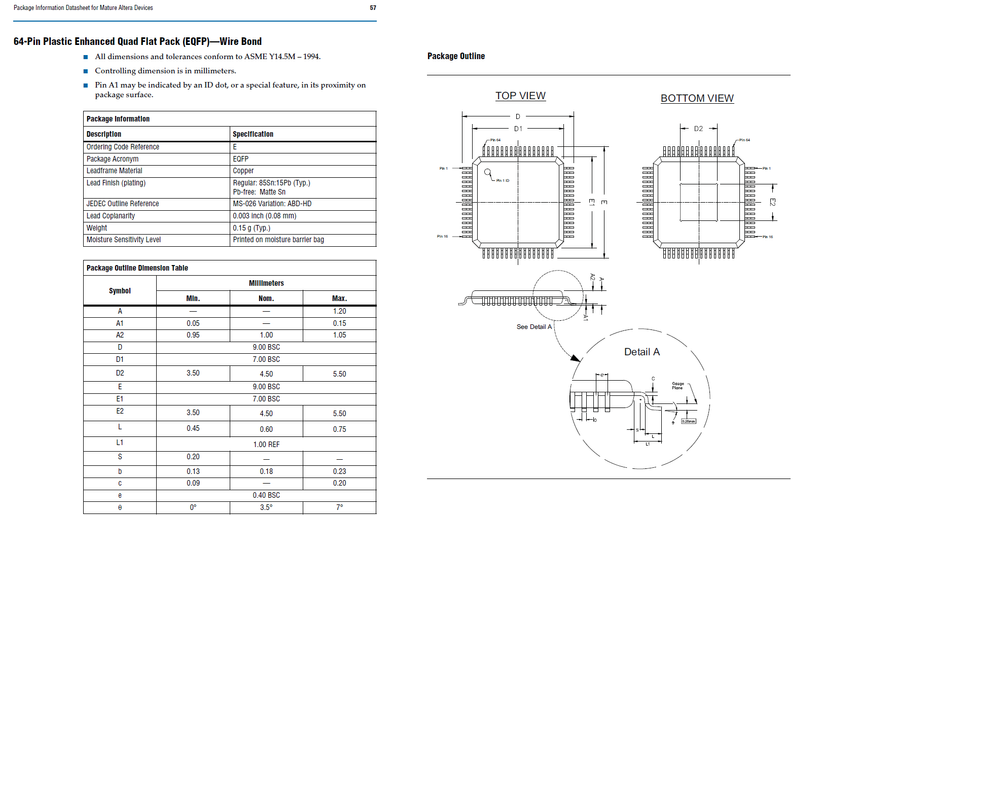

I need the landing pattern for the device 5M160Z 64EQFP

Hi Ralph,

Sorry to let you know that Intel FPGA do not provide support for PCB footprint symbols for FPGA and CPLD device families, similar to configuration devices.

However, we will continue the support by providing the schematic symbol which you can download from the link above. You could have the schematic symbol in .olb format from the link below:

https://www.intel.com/content/www/us/en/programmable/support/support-resources/download/board-layout-test/pcb/pcb-cadence.html

Regards,

Aim
