I need the landing pattern for the device 5M160Z 64EQFP

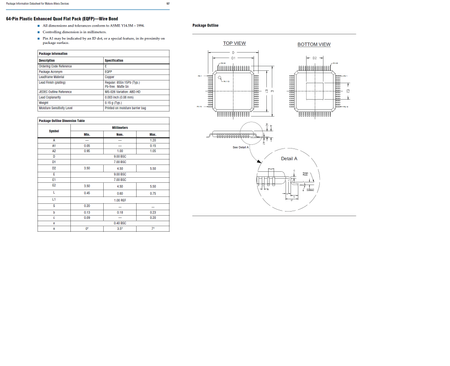

I like to use the 5M160ZE64I5N in 64EQFP package, but there is no information available. Could you please provide me a datasheet for the footprint? Thanks
NurAiman_M_Intel's avatar
NurAiman_M_Intel
Icon for Super Contributor rankSuper Contributor
6 years ago

Hi Ralph,

Sorry to let you know that Intel FPGA do not provide support for PCB footprint symbols for FPGA and CPLD device families, similar to configuration devices.

However, we will continue the support by providing the schematic symbol which you can download from the link above. You could have the schematic symbol in .olb format from the link below:

https://www.intel.com/content/www/us/en/programmable/support/support-resources/download/board-layout-test/pcb/pcb-cadence.html

Regards,

Aim
