Help with running Intel High Level Synthesis Design Example on Windows

Hi,

I am trying to run an Intel HLS Compiler design example on Windows by following the "Running an Intel® HLS Compiler Design Example (Windows)" guide.

I tried the "counter" and "QRD" examples and was able to build the "test-x86-64" version but not the "test-fpga" version. I am using Intel Quartus Prime Pro 21.4 and my card is the Agilex IA-840F FPGA card.

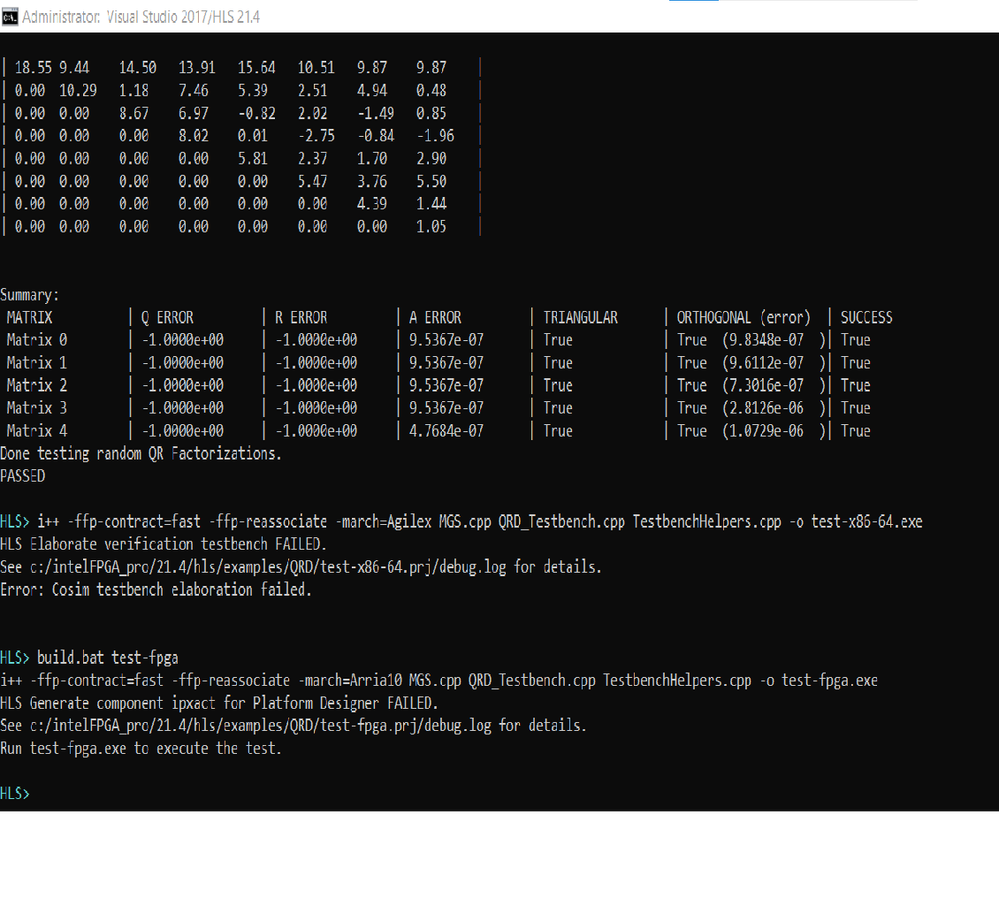

The error I get when I execute "build.bat test-fpga" is:

i++ -ffp-contract=fast -ffp-reassociate -march=Arria10 MGS.cpp QRD_Testbench.cpp TestbenchHelpers.cpp -o test-fpga.exe

HLS Generate component ipxact for Platform Designer FAILED.

See c:/intelFPGA_pro/21.4/hls/examples/QRD/test-fpga.prj/debug.log for details.

Run test-fpga.exe to execute the test.

Since my card isn't the Arria10, I tried executing:

i++ -ffp-contract=fast -ffp-reassociate -march=Agilex MGS.cpp QRD_Testbench.cpp TestbenchHelpers.cpp -o test-x86-64.exe

but I get the following error:

HLS Elaborate verification testbench FAILED.

See c:/intelFPGA_pro/21.4/hls/examples/QRD/test-x86-64.prj/debug.log for details.

Error: Cosim testbench elaboration failed.

I'm not sure how I should proceed from here and am hoping that I may receive some assistance on the next steps to successfully build and execute the examples here. Thanks.

Regards,

Dayana

  • Dayana's avatar
    Dayana
    2 years ago

    Thanks for your help Hareesh.

    Just a summary:

    1. The error:
      HLS Generate component ipxact for Platform Designer FAILED.
      was solved by downloading and installing the Intel Arria 10 Device Support from https://www.intel.com/content/www/us/en/software-kit/706105/intel-quartus-prime-pro-edition-design-software-version-21-4-for-windows.html under the Individual Files, Devices section.
    2. The error:
      Error: Cosim testbench elaboration failed
      &
      # ** License Issue: License request for intelqsimstarter feature failed
      # ** License Issue: Cannot checkout an uncounted license within a Windows Terminal Services guest session. (C:\flexlm\LR-118484_License.dat)
      # ** Error: Failure to obtain a Verilog simulation license. Unable to checkout 'intelqsimstarter' license.
      # ** Error: Error loading design
      was solved by running the HLS test example on the local computer instead of remotely as I am using a fixed license and a floating license is needed for remote use.

8 Replies

  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,


    Thank you for posting your issue here. please give me some time. I trying to duplicate your issue.


    Thanks,



  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

    sorry for the delay. I am also facing the same issue. just give me some more time to solve the problem.

  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

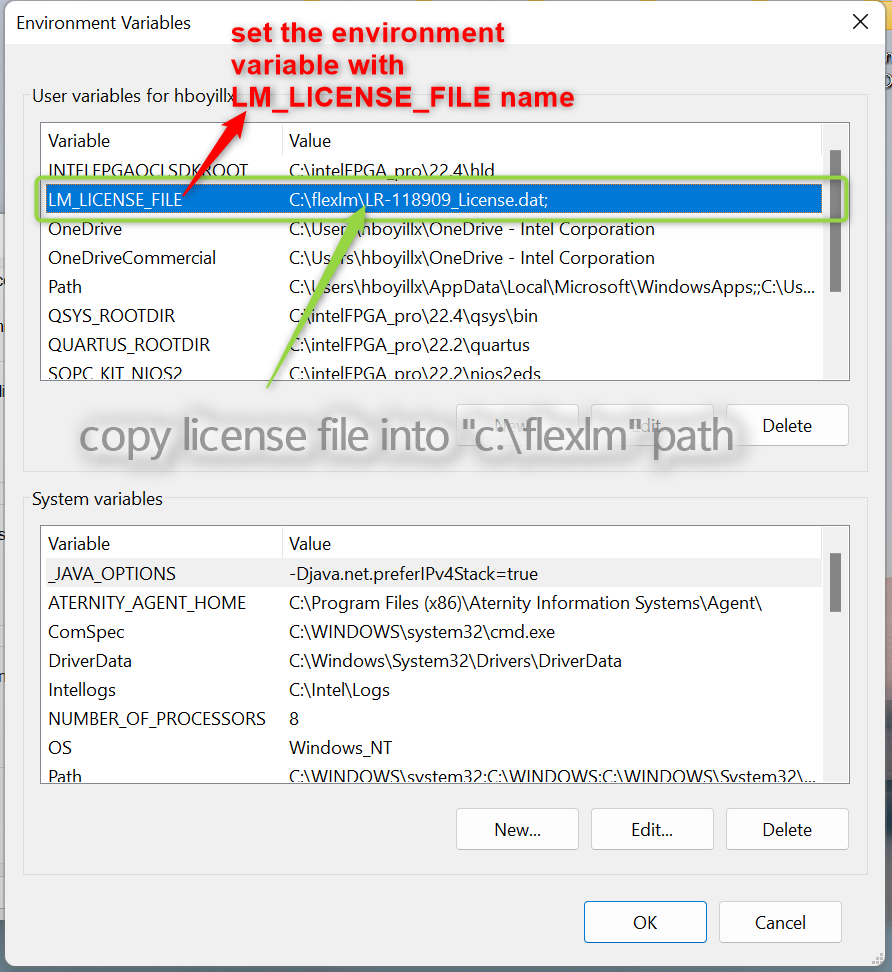

    actually, it's LM_LICENSE_FILE environment variable issue. please follow the below steps to set environment variable.

    in windows, START menu => view advanced system settings

    system properties will pop up. in this window

    Advanced => Environment Variables

    Environment Variables window will pop up

    in that widow, under the User variables for "user_neme" click on new.

    there give LM_LICENSE_FILE in Variable name option. next, click on browse the file and select your license file.

    after completing these steps open the cmd window and try to execute the example project.

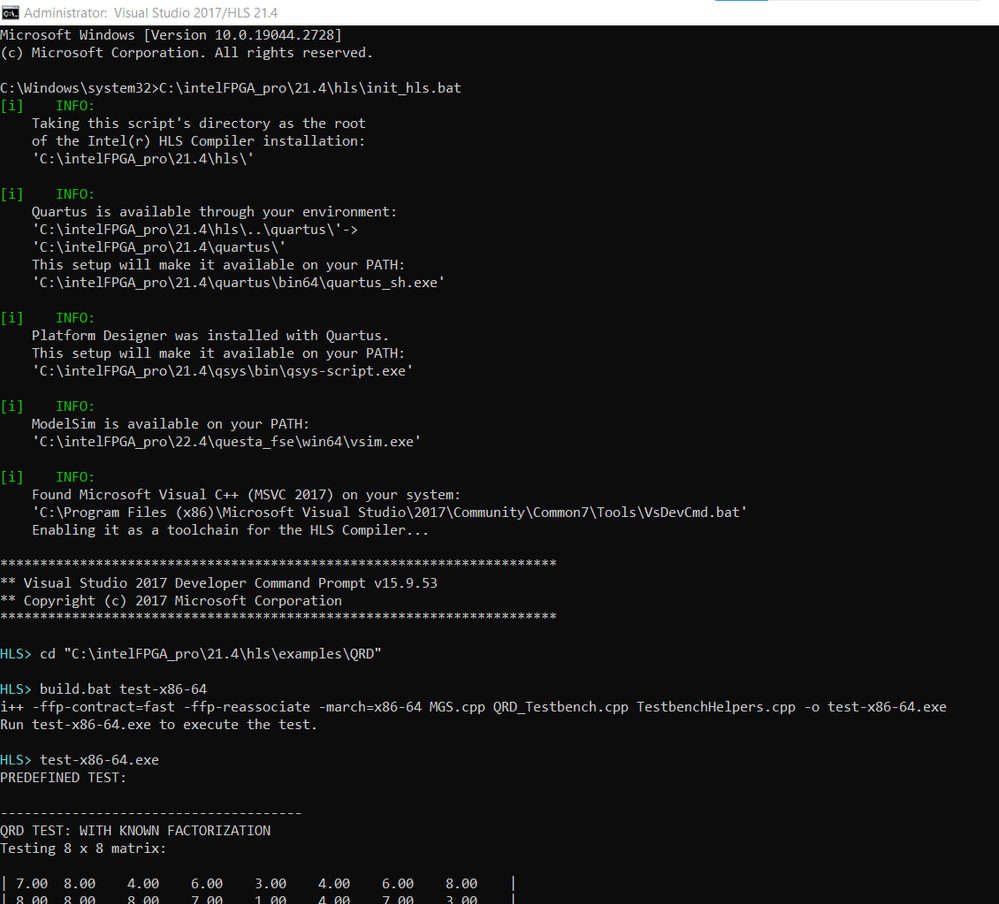

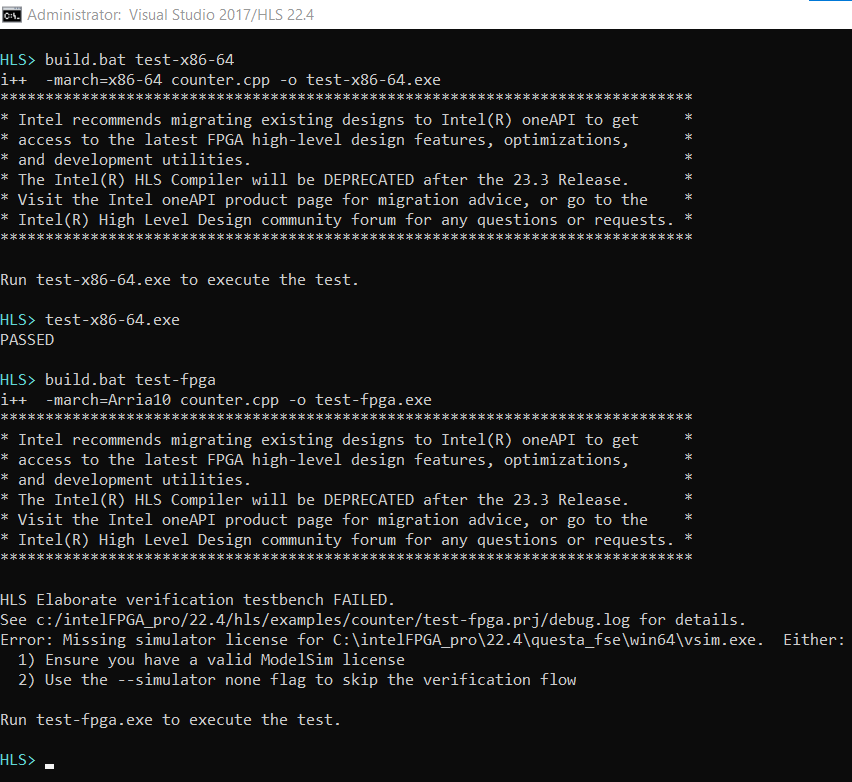

    i attached my complete steps screenshots and cmd terminal log file. please follow these steps and update the status of the issue.

  • Dayana's avatar
    Dayana
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi Hareesh,

    I have 2 generated licenses. It seems like one is for Quartus Prime Pro and the other one is for Quartus Prime Pro and Questa.

    LR-118484 - Questa*-Intel® FPGA Starter Edition SW-QUESTA, Intel® Quartus® Prime Software SW-ONE-QUARTUS

    LR-107533 - Intel® Quartus® Prime Software SW-ONE-QUARTUS

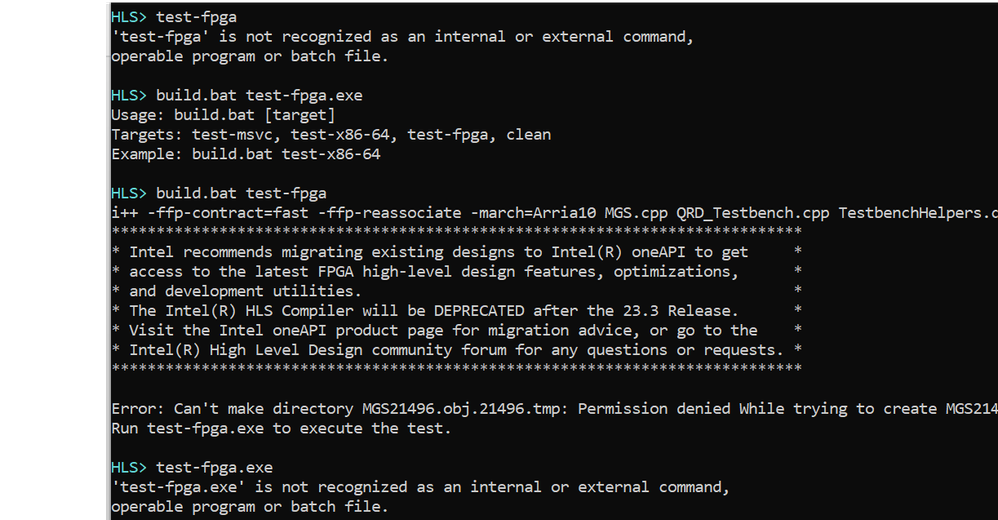

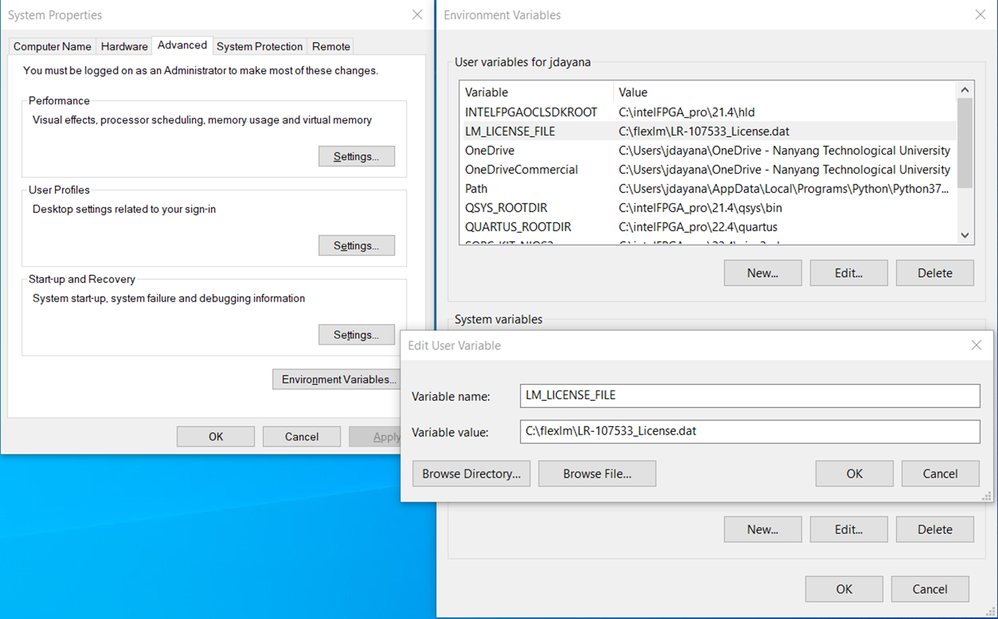

    When I tried using LR-107533.dat, I get the following result:

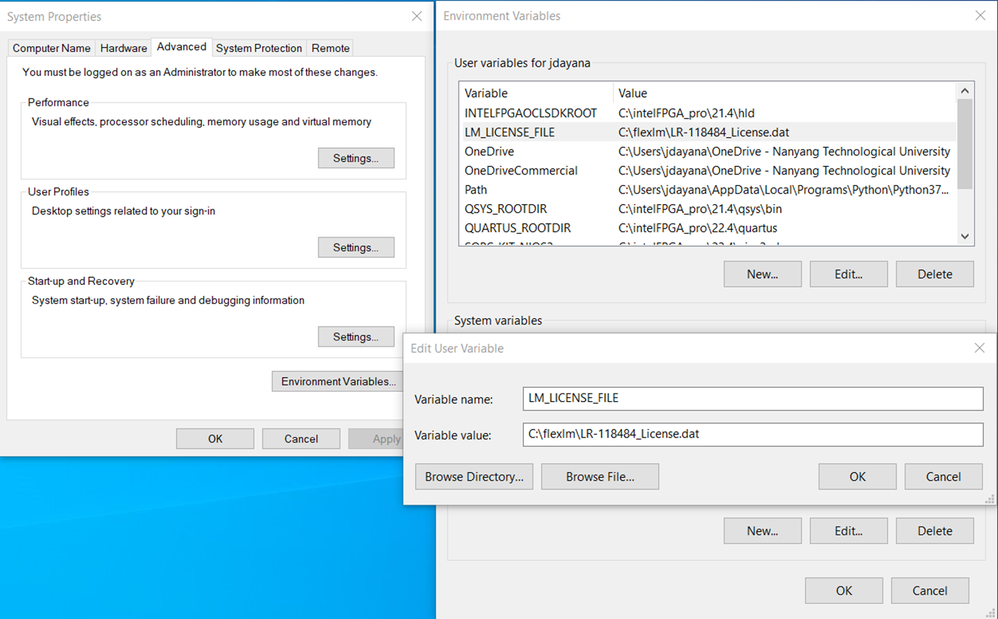

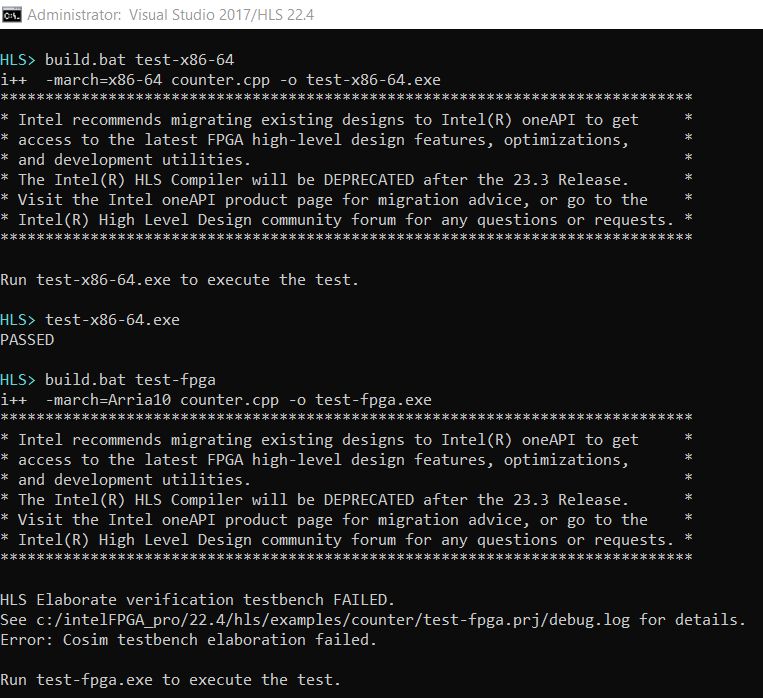

    When I use LR-118484, I get the following result:

    Is there something that I am doing wrong?

    I have added the debug files for your reference.

    Thanks.

    Regards,

    Dayana

  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

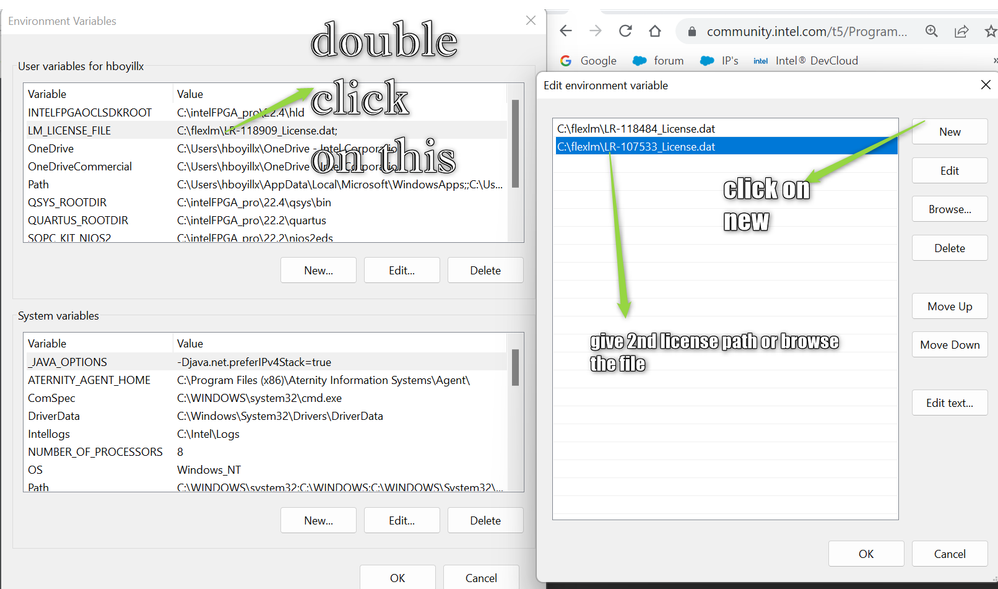

    it's environment variable issue only. please follow bellow steps. after that also if you facing an issue please tell me your free time. I will arrange a call to guide you.

  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,

    i didn't receive any response from you after posting the message. can you please update the status of your issue?

  • Dayana's avatar
    Dayana
    Icon for New Contributor rankNew Contributor
    2 years ago

    Thanks for your help Hareesh.

    Just a summary:

    1. The error:
      HLS Generate component ipxact for Platform Designer FAILED.
      was solved by downloading and installing the Intel Arria 10 Device Support from https://www.intel.com/content/www/us/en/software-kit/706105/intel-quartus-prime-pro-edition-design-software-version-21-4-for-windows.html under the Individual Files, Devices section.
    2. The error:
      Error: Cosim testbench elaboration failed
      &
      # ** License Issue: License request for intelqsimstarter feature failed
      # ** License Issue: Cannot checkout an uncounted license within a Windows Terminal Services guest session. (C:\flexlm\LR-118484_License.dat)
      # ** Error: Failure to obtain a Verilog simulation license. Unable to checkout 'intelqsimstarter' license.
      # ** Error: Error loading design
      was solved by running the HLS test example on the local computer instead of remotely as I am using a fixed license and a floating license is needed for remote use.
