Ethernet suggestion

Hi,

I am using a Cyclone V SoC FPGA and I would like to inquire about the feasibility of using this component for Ethernet communication at speeds of at least 2.5Gbps.

I am open to using either the HPS or the FPGA Fabric.

I would appreciate any related suggestions, peripheral components, simple architectures, or design examples that you can provide for reference.

Thank you very much.
Configuration

12 Replies

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    Unfortunately, we don't have support for 2.5G ethernet support from the HPS or FPGA side on Cyclone V SX device.


    On Cyclone V SX SoC FPGA, at HPS side you can use ethernet only 10/100/1000 Mbps.

    https://www.intel.com/content/www/us/en/docs/programmable/683126/21-2/ethernet-media-access-controller.html


    But in Cyclone 10 GX device, you can use the 2.5G ethernet.

    https://www.intel.com/content/www/us/en/docs/programmable/683054/20-1/about-the-1g-2-5g-5g-10g-multi-rate.html


    Regards

    Tiwari


    • ochiang's avatar
      ochiang
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi Jeet14,

      thank you for your reply,

      I saw in the documentation that both the Cyclone V Transceiver Native PHY IP Core and the Custom PHY IP Core support GIGE-2.5Gbps PCS. Can't these be used to implement 2.5Gbps Ethernet?

    • ochiang's avatar
      ochiang
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi Tiwari,

      Thank you for your reply,

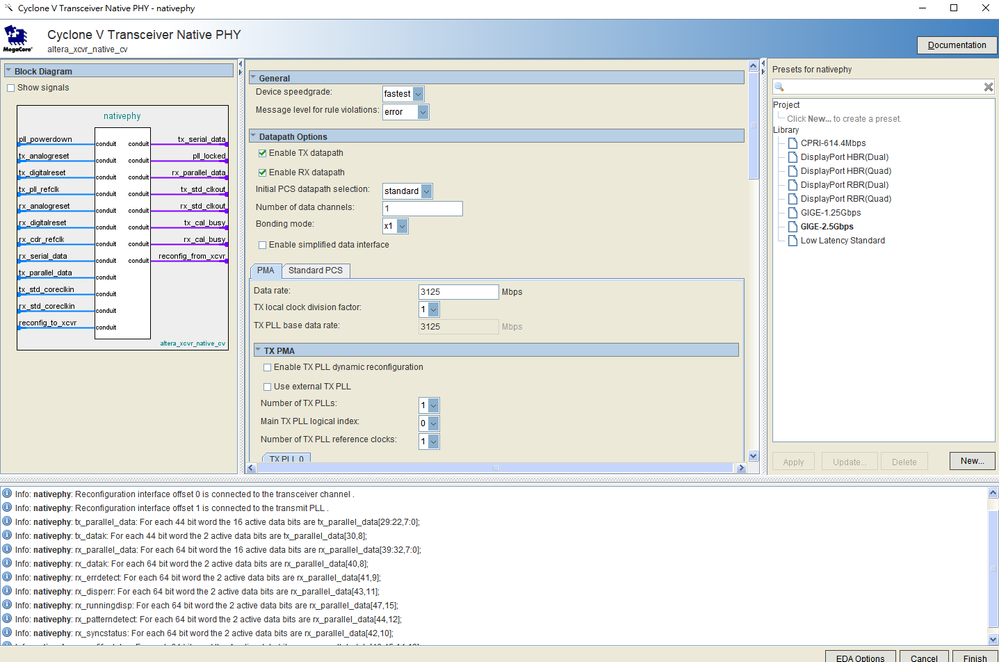

      I instantiated a Native PHY IP within the Cyclone V SX and used the IP Library to set GIGE-2.5Gbps. I can see that the IP sets the Data rate to 3125Mbps on the PMA configuration page (as shown in the image). Doesn't this indicate that the Cyclone V SX is capable of 2.5Gbps Ethernet?

      Thank you very much.

    • ochiang's avatar
      ochiang
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi Tiwari,

      thank you for your reply,

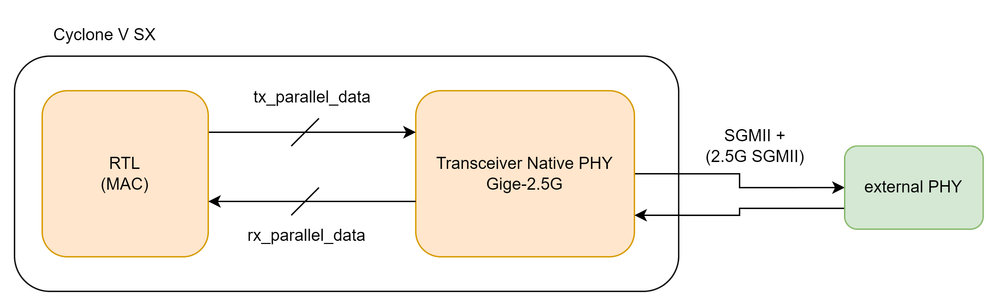

      So, can I implement a simple Ethernet frame processing (MAC Layer) in RTL, then connect the RTL to the Native PHY, and use an external PHY component like SGMII+ (e.g., GPY211) to achieve 2.5G Ethernet? Is this feasible?

      Thank you very much.

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    Yes, you need to write RTL logic for MAC+PCS & MDIO logic as well for external PHY's then you can directly connect it with XCVR Native PHY 2.5G.


    Regards

    Tiwari


    • ochiang's avatar
      ochiang
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi Tiwari,

      I am very grateful for your information; it has been very helpful to me.

      However, I have some additional questions. There is already a Standard PCS within the Native PHY. When I select GigE 2.5G, it sets up to enable PCS 8b/10b. How is this different from the PCS you mentioned? Specifically, what additional PCS functionality do I need to implement? Could you provide some hints?

      Are you referring to handling things like Ordered-sets?

      Thank you very much.

  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    You need to define the interface like RX/TX 16-bit GMII in the RTL MAC and connect it to PCS 8b/10b.


    Regards

    Tiwari


  • Jeet14's avatar
    Jeet14
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    Please let me know if you have any other query on this.


    Regards

    Tiwari


    • ochiang's avatar
      ochiang
      Icon for New Contributor rankNew Contributor
      1 year ago

      Hi Tiwari,

      Thank you very much for your help. I will continue to research some items related to PCS. Thank you.
