CycloneIV-E external ADC parallel interface timings

All ports location are pcb driven, no chance to modify them.

Other than these, I didn't find other relevant assignments that could upset the fitter:

set_global_assignment -name CYCLONEIII_CONFIGURATION_SCHEME "PASSIVE SERIAL"
set_global_assignment -name GENERATE_RBF_FILE ON
set_global_assignment -name RESERVE_DATA1_AFTER_CONFIGURATION "USE AS REGULAR IO"
set_global_assignment -name RESERVE_FLASH_NCE_AFTER_CONFIGURATION "USE AS REGULAR IO"
set_global_assignment -name SIMULATION_MODE FUNCTIONAL
set_global_assignment -name POWER_USE_TA_VALUE 50
set_global_assignment -name PHYSICAL_SYNTHESIS_COMBO_LOGIC OFF
set_global_assignment -name PHYSICAL_SYNTHESIS_REGISTER_RETIMING ON
set_global_assignment -name CYCLONEII_OPTIMIZATION_TECHNIQUE SPEED
set_global_assignment -name TIMING_ANALYZER_DO_REPORT_TIMING ON
set_global_assignment -name TIMING_ANALYZER_DO_CCPP_REMOVAL OFF
set_global_assignment -name SYNCHRONIZER_IDENTIFICATION "FORCED IF ASYNCHRONOUS"
set_global_assignment -name PHYSICAL_SYNTHESIS_REGISTER_DUPLICATION ON
set_global_assignment -name ROUTER_LCELL_INSERTION_AND_LOGIC_DUPLICATION ON
set_global_assignment -name ROUTER_TIMING_OPTIMIZATION_LEVEL NORMAL
set_global_assignment -name QII_AUTO_PACKED_REGISTERS AUTO
set_global_assignment -name FITTER_EFFORT "AUTO FIT"
set_global_assignment -name ROUTER_CLOCKING_TOPOLOGY_ANALYSIS OFF
set_global_assignment -name FLOW_ENABLE_RTL_VIEWER ON
set_global_assignment -name PHYSICAL_SYNTHESIS_EFFORT NORMAL
set_global_assignment -name TIMING_ANALYZER_REPORT_SCRIPT_INCLUDE_DEFAULT_ANALYSIS OFF
set_global_assignment -name ADV_NETLIST_OPT_SYNTH_WYSIWYG_REMAP ON
set_global_assignment -name POST_FLOW_SCRIPT_FILE "quartus_sh:post_build.tcl"
set_global_assignment -name OPTIMIZATION_MODE BALANCED
set_global_assignment -name OPTIMIZE_HOLD_TIMING "ALL PATHS"
set_global_assignment -name PHYSICAL_SYNTHESIS_ASYNCHRONOUS_SIGNAL_PIPELINING ON
set_global_assignment -name OPTIMIZE_POWER_DURING_SYNTHESIS "NORMAL COMPILATION"
set_global_assignment -name HDL_MESSAGE_LEVEL LEVEL3
set_global_assignment -name FITTER_AGGRESSIVE_ROUTABILITY_OPTIMIZATION AUTOMATICALLY
set_global_assignment -name AUTO_DELAY_CHAINS_FOR_HIGH_FANOUT_INPUT_PINS ON
set_global_assignment -name MUX_RESTRUCTURE OFF
set_global_assignment -name STATE_MACHINE_PROCESSING AUTO
set_global_assignment -name NUM_PARALLEL_PROCESSORS ALL
set_global_assignment -name PLACEMENT_EFFORT_MULTIPLIER 1
set_global_assignment -name ENABLE_OCT_DONE OFF
set_global_assignment -name ENABLE_CONFIGURATION_PINS OFF
set_global_assignment -name ENABLE_BOOT_SEL_PIN OFF
set_global_assignment -name STRATIXV_CONFIGURATION_SCHEME "PASSIVE SERIAL"
set_global_assignment -name CYCLONEII_RESERVE_NCEO_AFTER_CONFIGURATION "USE AS REGULAR IO"
set_global_assignment -name SAFE_STATE_MACHINE ON
set_global_assignment -name SYNTH_PROTECT_SDC_CONSTRAINT ON
set_global_assignment -name AUTO_SHIFT_REGISTER_RECOGNITION OFF
set_global_assignment -name REMOVE_REDUNDANT_LOGIC_CELLS ON
set_global_assignment -name ALLOW_ANY_ROM_SIZE_FOR_RECOGNITION ON
set_global_assignment -name ALLOW_ANY_RAM_SIZE_FOR_RECOGNITION ON
set_global_assignment -name ALLOW_ANY_SHIFT_REGISTER_SIZE_FOR_RECOGNITION ON
set_global_assignment -name ALLOW_SHIFT_REGISTER_MERGING_ACROSS_HIERARCHIES ALWAYS
set_global_assignment -name PHYSICAL_SYNTHESIS_COMBO_LOGIC_FOR_AREA OFF
set_global_assignment -name PHYSICAL_SYNTHESIS_MAP_LOGIC_TO_MEMORY_FOR_AREA ON
set_global_assignment -name AUTO_RAM_RECOGNITION OFF
set_global_assignment -name OPTIMIZE_TIMING "NORMAL COMPILATION"
set_global_assignment -name FINAL_PLACEMENT_OPTIMIZATION NEVER

I've relaxed the fitter effort and this result in ~100ps of slack improvement, not a big deal yet.

Chip planner still shows this scenario; the blocks in red contain the adc interface logic with failing paths:

The first of failing paths looks like this in technology map viewer:

Going down the rabbit hole in property editor I can see "Input pin to Input Register Delay" set to 5:

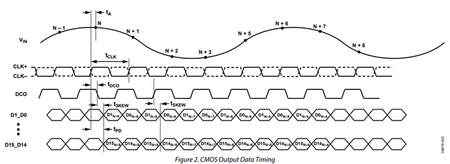

Does this ring a bell? The value is the same for all the failing paths, both for rising and falling clock edges (adc behaves like-ish a ddr device, odd bits can be lathed during rising edge of adc clk, even can be lathed during falling edge).

In assignment editor I specified that adc_clk should be a fast output register and adc_data a fast input register:

This result in actual DDIOOUTCELL usage for clock out, but a regular register for input:

No ignored assignment message in compilation report, but fitter decided not to accept the suggestion and use a regular register.

Could this be the issue?

This is how I (tried to) constrain the input timings, bearing the ddr-ish behavior:

#input delay constraints (ddr)

set_input_delay -clock { ad9266_clk } -max $ad9266_dco_delay_max [get_ports {rf_in_adc_dco}]
set_input_delay -clock { ad9266_clk } -min $ad9266_dco_delay_min [get_ports {rf_in_adc_dco}]
set_input_delay -clock { ad9266_clk } -clock_fall -max $ad9266_dco_delay_max [get_ports {rf_in_adc_dco}] -add_delay
set_input_delay -clock { ad9266_clk } -clock_fall -min $ad9266_dco_delay_min [get_ports {rf_in_adc_dco}] -add_delay
set_input_delay -clock { ad9266_clk } -max $ad9266_data_delay_max [get_ports {rf_in_adc_data[*]}]
set_input_delay -clock { ad9266_clk } -min $ad9266_data_delay_min [get_ports {rf_in_adc_data[*]}]
set_input_delay -clock { ad9266_clk } -clock_fall -max $ad9266_data_delay_max [get_ports {rf_in_adc_data[*]}] -add_delay
set_input_delay -clock { ad9266_clk } -clock_fall -min $ad9266_data_delay_min [get_ports {rf_in_adc_data[*]}] -add_delay

Is something wrong?
