CTLE AC gain equivalent values in db for Arria 10 Transceiver tool kit

Question

Hi,
I am using Arria 10 GX dev kit.we are using transceivers in our project. In transceiver tool there is an option for changing CTLE AC GAIN in terms of Numeric /numbers. I need to know how much it changes in terms of db.

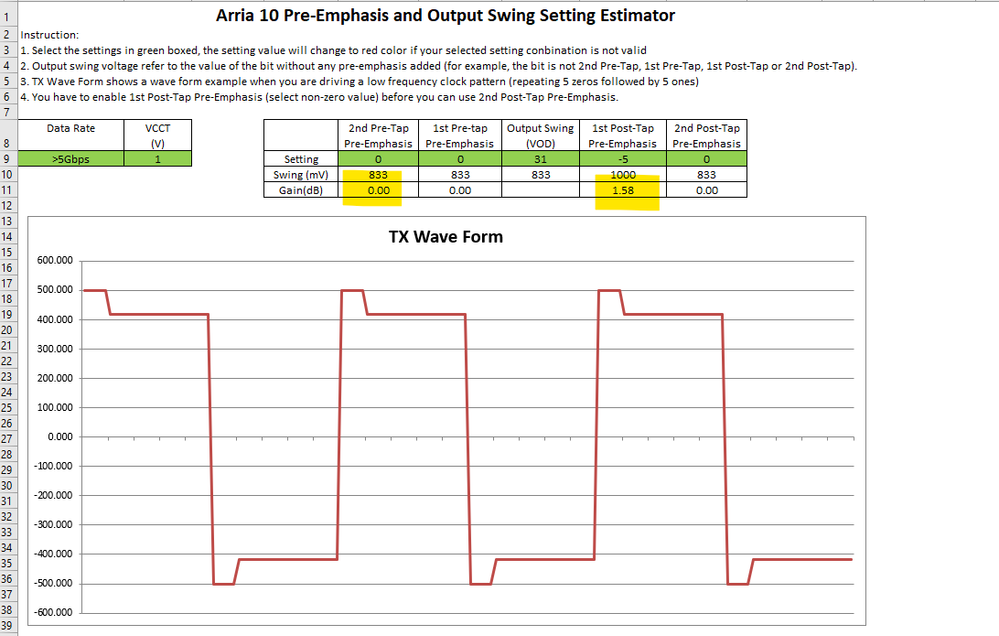

As arria 10 register map excel sheet, shows only for transmitter parameter.

Please share the document/excel sheet for RX analog parameters.where to find the values RX analog parameters in terms of db.

Regards,
Rajesh

ash_r_intel · Answer

Hi,There is no similar sheet for the Rx side. However, you may use tools like Transceiver Toolkit to view the impact of the changes to TX parameters on RX side.The CTLE gain at RX in dB depends upon the data rate and the setting. Values can be found in the datasheet: https://www.intel.com/content/www/us/en/docs/programmable/683771/current/transceiver-specifications-for-gx-sx.htmlRegards

rk_athram · Answer

Thank  you @Ash_R_Intel
