Arria 10 GX FPGA Development Kit flash in unprogrammable state

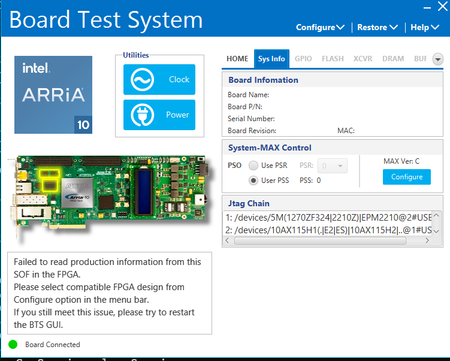

Hi, I have the Arria 10 GX FPGA Development kit. Part numbers: Arria 10 (10AX115S2F45), MAX V (5M2210ZF256), Flash (CFI_2Gb). All switches are at factory default positions per 3.2. Default Switch a...
Configuration
FakhrulA_altera's avatar
FakhrulA_altera
Icon for Regular Contributor rankRegular Contributor
10 months ago

Hi quent.


Thanks for the detailed info. Based on your description, it looks like the flash contents may be corrupted, which is causing the boot failure (D16 red LED). Since the Board Test System isn’t recognizing the board correctly, we recommend using the Quartus Prime Programmer Pro to load the factory recovery (.jic) file.

You can download the full development kit package from here - https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/arria/10-gx.html. Look for the factory recovery .jic file inside the installer package and program it via JTAG mode.


Let us know if you need help locating the file or setting up the switches correctly.


Best regards,

Fakhrul
