What is the ESD rating for A3CZ100BM16AE7S I/O pins (and HSIO true differential pins if they are different)?
Do they require external ESD protection, and if so, are there any guidelines on selection of an appropriate device?

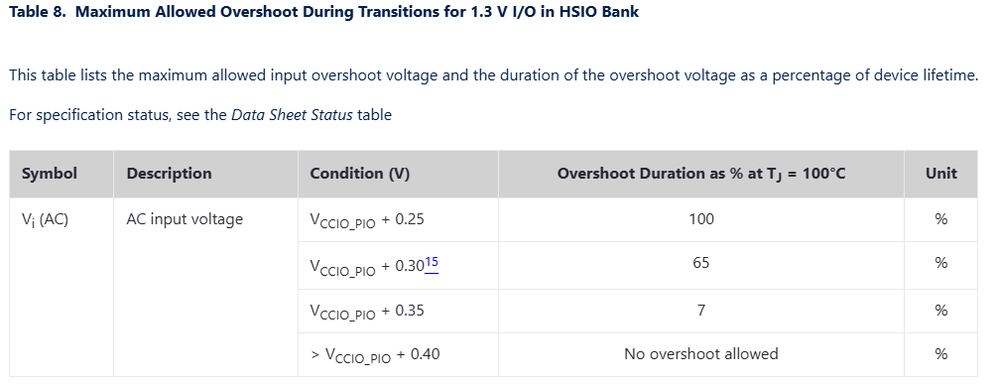

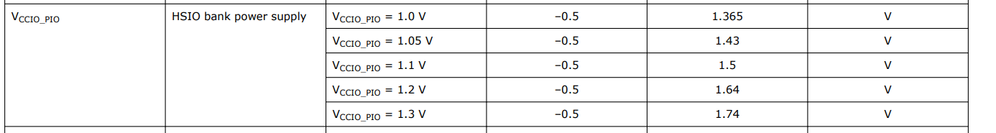

I intend to use some of the true differential receiver/transmitters for LVDS comms on a 1.3V bank, and found the information shown below about maximum ratings and maximum overshoots implying the maximum voltage on those pins can't exceed ~1.75V, but finding an ESD diode which doesn't breakdown at 1.3V, and clamps before 1.75V is an impossible task, so what is an acceptable clamping voltage?
3 Replies
AqidAyman_AlteraRegular Contributor
Hi, let me check if we have this information internally.
- AqidAyman_Altera
Hi,
Unfortunately, this is internal information.
You will need to provide us with the CNDA number and your information first before I can provide the information to you.
Regards,
Aqid
- AqidAyman_Altera
Hi,
May I know if you have any updates?
Do you have a valid CNDA with Altera?
If you wish to share the information, please share it with me through private message.
Regards,
Aqid
