warnings on fitter for design

Hi Team,

I have compiled the design with ddr3,nios ii processor, avalon mm and other ip interfaces. I have used the ddr3 memory with 400 mhz and other interface uses afi_half_clk like that I have connected in qsys system. for fitter i have warnings. Can you please give solution for these warnings.

Warning (15400): WYSIWYG primitive "Mux24:inst|Mux24_cpu:cpu|Mux24_cpu_cpu:cpu|Mux24_cpu_cpu_nios2_oci:the_Mux24_cpu_cpu_nios2_oci|Mux24_cpu_cpu_nios2_ocimem:the_Mux24_cpu_cpu_nios2_ocimem|Mux24_cpu_cpu_ociram_sp_ram_module:Mux24_cpu_cpu_ociram_sp_ram|altsyncram:the_altsyncram|altsyncram_qid1:auto_generated|ram_block1a11" has a port clk0 that is stuck at GND

similar warnings are listed more in warnings tab.

Fpga Devkit

4 Replies

  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hello SERMASWATHIKA,


    By observing the warning messages, it's look like the clock signals are not assigned to any pins.

    Can you check if all signals in the design have been assigned to pin location?


    Regards,

    Adzim


    • SERMASWATHIKA's avatar
      SERMASWATHIKA
      Icon for Contributor rankContributor
      1 year ago

      Hi,

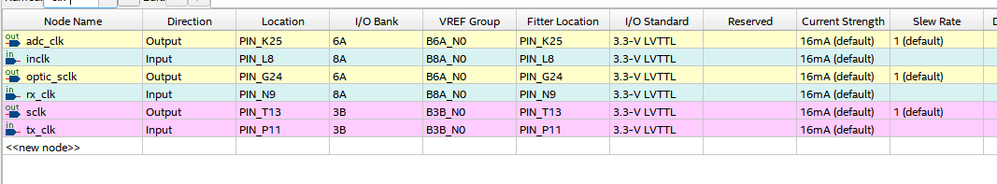

      i have checked the pin assignment file. Clocks are assigned properly. i have added the snippet for clock assignment, please check and give your review

  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hi SERMASWATHIKA,


    I'm sorry for the delay to respond in this forum.


    From my observation, the warning messages are telling about the clock port is not used so it's connected to GND.

    If you already assigning all pins, then it's should be okay.

    Unless there are some floating pins in your design, the Quartus will identify it as unused pin then connected to GND.


    There should be some IPs in your design, can you identify which IP that causing this warning by removing the IP?

    This should be able to isolate this issue.


    Thanks & Regards,

    Adzim


  • AdzimZM_Altera's avatar
    AdzimZM_Altera
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    As we do not receive any response from you on the previous reply that we have provided, I now transition this thread to community support. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
