The programming time of the 10M50DAF256 in ISP clamp mode

Question

Hi,

we are using the 10M50DAF256 in the ISP clamp mode.

For Programming this device in the Clamp mode it is taking too long time Approximately 15Min. is there any solution to program it in the lesser time.

Thanks

Krishna.

kbvr · Answer

Hi WolfGang,We rebuilt the PCB to resolve the  Programming issue, now the unit will be programmed in normal mode. we are not using the ISP mode now.Thanks &amp; RegardsKrishna Prasad BVR

shafiqy_intel · Answer

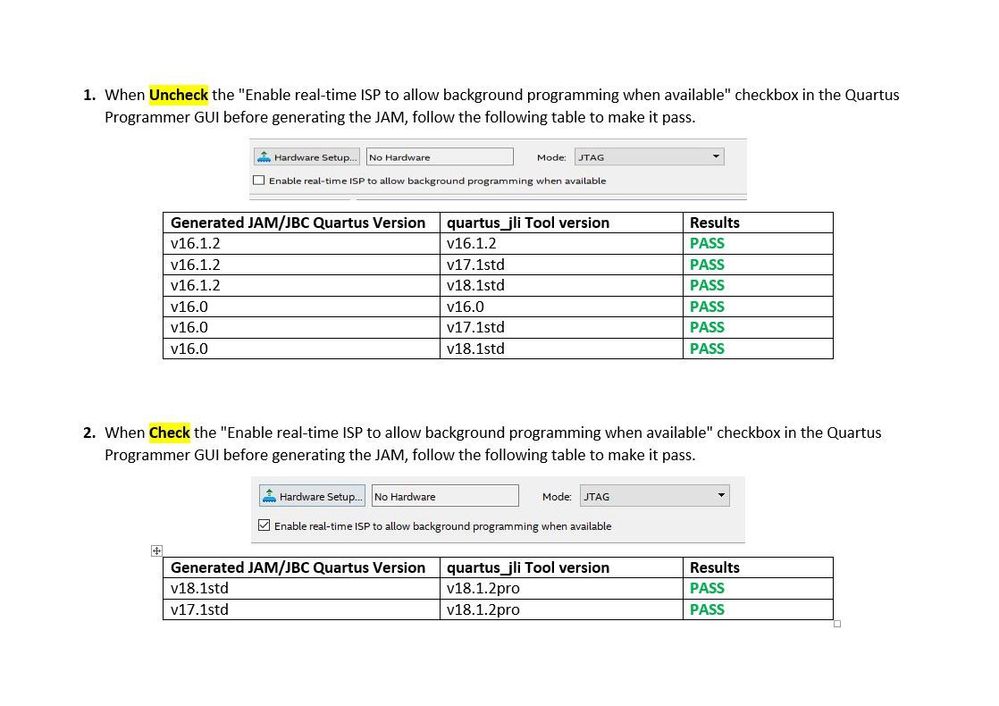

Hi KBVR,If I not mistaken the issue is caused by Quartus Prime update version.We will update the new KDB for this issue in near future. And this bug is scheduled to be fixed in a future release of the Intel Quartus Prime software.In the meantime, please refer to the attachment picture for workaround:I hope this will help.Thanks.😉

kbvr · Answer

Thanks for Quick response.

As per max10 Configuration guide In system programming time for 10M50 is 52.9 Sec.

but in my board it is taking too long time i.e 14min. please see the below info it is started at 13:21 ended at 13:35. is it hardware issue or tool issue?

and observed it is taking more time at performing verification process ( 209021)

Info (209060): Started Programmer operation at Mon Sep 30 13:21:15 2019

Info (209017): Device 1 contains JTAG ID code 0x031050DD

Info (209044): Erasing MAX 10 configuration device(s)

Info (209023): Programming device(s)

Info (209021): Performing verification on device(s)

Info (209023): Programming device(s)

Info (209011): Successfully performed operation(s)

Info (209061): Ended Programmer operation at Mon Sep 30 13:35:44 2019

Thanks & Regards

Krishna

shafiqy_intel · Answer

Hi Krishna,May I know which Quartus version you are using?Can your try it with Standard version?Thanks

kbvr · Answer

Hello WolfGang ,

Currently I am using the Qurtus prime lite 18.0. to day I tried with the standard edition 18.1.  No change in the programming timming (14 min). Itried from the command shell and the GUI.

Please find the log files below.

NIOS command shell:
krbvr@BTIS1000082900 /cygdrive/c/BVRK
$ quartus_jli -a program -c1  18_1.jam
Info: *******************************************************************
Info: Running Quartus Prime Jam Tools
    Info: Version 18.1.0 Build 625 09/12/2018 SJ Standard Edition
    Info: Copyright (C) 2018  Intel Corporation. All rights reserved.
    Info: Your use of Intel Corporation's design tools, logic functions
    Info: and other software and tools, and its AMPP partner logic
    Info: functions, and any output files from any of the foregoing
    Info: (including device programming or simulation files), and any
    Info: associated documentation or information are expressly subject
    Info: to the terms and conditions of the Intel Program License
    Info: Subscription Agreement, the Intel Quartus Prime License Agreement,
    Info: the Intel FPGA IP License Agreement, or other applicable license
    Info: agreement, including, without limitation, that your use is for
    Info: the sole purpose of programming logic devices manufactured by
    Info: Intel and sold by Intel or its authorized distributors.  Please
    Info: refer to the applicable agreement for further details.
    Info: Processing started: Thu Oct 03 12:49:13 2019
Info: Command: quartus_jli -a program -c 1 18_1.jam
Device #1 IDCODE is 031050DD
full-chip erasing Max 10 FPGA device(s) ...
programming Max 10 FPGA CFM0 block at sector 5 ...
programming Max 10 FPGA UFM block at sector 1 ...
programming Max 10 FPGA UFM block at sector 2 ...
programming Max 10 FPGA UFM block at sector 3 ...
programming Max 10 FPGA UFM block at sector 4 ...
verifying Max 10 FPGA CFM0 block at sector 5 ...
verifying Max 10 FPGA UFM block at sector 1 ...
verifying Max 10 FPGA UFM block at sector 2 ...
verifying Max 10 FPGA UFM block at sector 3 ...
verifying Max 10 FPGA UFM block at sector 4 ...
programming Max 10 FPGA DSM block ...
DONE
Exit code = 0... Success
Info: Quartus Prime Jam Tools was successful. 0 errors, 0 warnings
    Info: Peak virtual memory: 129 megabytes
    Info: Processing ended: Thu Oct 03 13:03:18 2019
    Info: Elapsed time: 00:14:05
    Info: Total CPU time (on all processors): 00:01:33

From GUI:

Pof file by enabling the ISP :
Info (209060): Started Programmer operation at Thu Oct 03 11:02:13 2019
Info (209017): Device 1 contains JTAG ID code 0x031050DD
Info (209044): Erasing MAX 10 configuration device(s)
Info (209023): Programming device(s)
Info (209021): Performing verification on device(s)
Info (209023): Programming device(s)
Info (209011): Successfully performed operation(s)
Info (209061): Ended Programmer operation at Thu Oct 03 11:16:45 2019

Thanks &amp; Regards
Krishna
