Stratix 10 - 1G/2.5G Ethernet Design Example for Stratix10 Tx Signal Integrity Dev Kit

Hi all,

I downloaded the design example file below from Intel design store.

"Stratix 10 - 1G/2.5G Ethernet Design Example"

I'm currently working with Stratix 10 Tx signal integrity Dev Kit.

After compilation, I tried to program the code onto the FPGA and failed it.

I tried to change the device to my current one, but I couldn't find my d

evice from the list.

What I'm wondering is I downloaded this file with filter of "Stratix 10 Tx dev. kit", but looks like it is not suitable for my dev. kit.

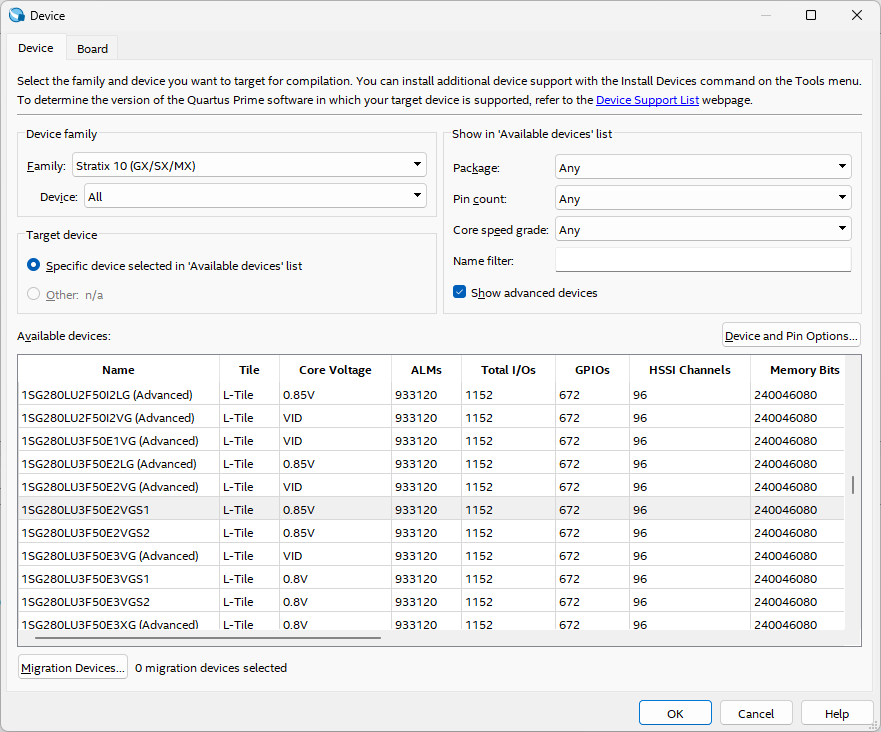

As seen from the following image, the Family is specified for only GX/SX/MX, not TX.

How can I change the device to my device?

Fpga Devkit

9 Replies

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,


    Thanks for submitting the issue. Allow me have some time to look into the issue and I will get back to you with findings.


    Best regards,

    zying


  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi,


    May I know the Quartus version and OPN number of the device that you are using?


    Best regards,

    zying


    • Junyong's avatar
      Junyong
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Thank you for reply, ZiYing.

      The version of Quartus Prime Pro is 17.1.0 which is the version specified in the example file.

      How can I find the OPN number?

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi Junyong,


    You may select the OPN number that you want to use in here. May I know what's the OPN number that you want to use?

    Best regards,

    zying


  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi junyong,


    If you are using the TX dev kit, please do ensure the OPN number that you use has the number 1ST value. According the picture that you shared, you are using the wrong OPN number which are not matching with your dev kit. You need ensure that your OPN number matching with your dev kit.


    Best

    Best regards,

    Zi Ying


    • Junyong's avatar
      Junyong
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Hi Zi Ying,

      First of all, thank you for your reply.

      The OPN is ordering part number, isn't it?

      Yes. that's why I left this. Although I downloaded this example file from Intel design store with filtered "Stratix 10 Tx Dev Kit", the specified part numbers in Quartus Prime Pro didn't include any devices starting with TX.

      That's my question.

      Best Regards,

      Junyong

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi Junyong,


    I think is website error and need feed back to the team. The OPN should be same as the document specified.

    Best regards,

    zying


    • Junyong's avatar
      Junyong
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      Thank you for reply, Ziying.

      Yes, looks like it should be modified.

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi junyong,


    Since no hear any feedback from you, I am now close the case. If you have any question after the case closed, please do feel free to submit another issue.
