Part#EK-10M08E144 power connection

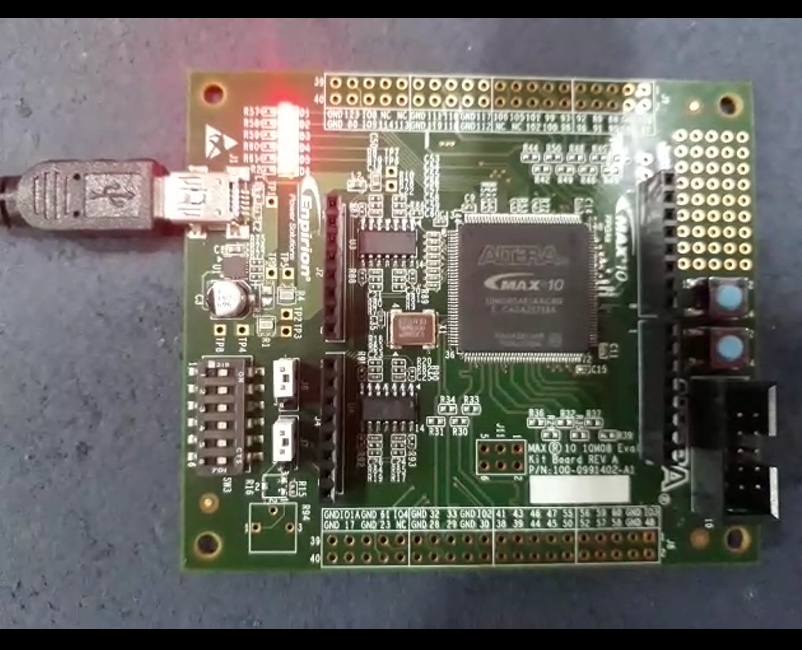

When the customer connect USB cable to EK-10M08E144, red LEDs turned on continuously. Per datasheet, When powered correctly, a pre-programmed design blinks LEDs D1 through D5 ON half a second then OFF half a second. Is this product out of order? or how should the customer proceed? please help to advise. Thank you. Dan.lee@mouser.com

1 Reply

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi Dunn,

    Board is pre-programmed with different design.

    MAX 10 FPGA (10M0S, 144-EQFP) Evaluaion Kit User Guide is not been updated,The pre-programmed design is connection between SW3 (1 - 5) and led (D1 - D5).

    You can change SW3 state to see the difference.

    Sorry for the inconveniences caused.

    Regards

    Anand
