Part#EK-10M08E144 power connection

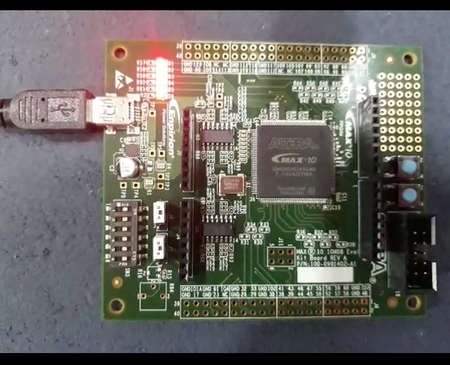

When the customer connect USB cable to EK-10M08E144, red LEDs turned on continuously. Per datasheet, When powered correctly, a pre-programmed design blinks LEDs D1 through D5 ON half a second then OF...
AnandRaj_S_Intel's avatar
AnandRaj_S_Intel
Icon for Regular Contributor rankRegular Contributor
7 years ago

Hi Dunn,

Board is pre-programmed with different design.

MAX 10 FPGA (10M0S, 144-EQFP) Evaluaion Kit User Guide is not been updated,The pre-programmed design is connection between SW3 (1 - 5) and led (D1 - D5).

You can change SW3 state to see the difference.

Sorry for the inconveniences caused.
