Memory size in Cyclone 10 LP 10CL120YF484

Hi

When the nios compilation completes there will be a statistic of the Nios binary.

For a start you could take a look at the bootmethod for the Nios.

https://www.intel.com/content/www/us/en/docs/programmable/726952/22-1-21-2-0/processor-booting-methods.html

Regards

Jingyang, Teh

@JingyangTeh_Altera

Thank you!

how about the rest questions above?

I paste them as follows:

1) Could you please help to tell me what is the maximum memory size that I could use?

2) In Eclipse--> right click on project --> Make Targets-->Build-->mem_init_generate, "nios_core_RAM.hex" whose size is 289KB and "nios_core_ROM.hex" whose size is 193KB are generated, my question is:

what size of RAM and ROM should I set in Platform Designer?

3) what is the calculation formula to calculate RAM and ROM size using "nios_core_RAM.hex" and "nios_core_ROM.hex"?

4) Do you have a tool to statistics all RAM and ROM used in nios_core.map file?

Hi

If you are running the Nios on place in the on chip memory size.

In the Platform Designer, the on chip memory size is adjustable and its maximum size is dependable on the design you have in hand.

To answer the question of 1,2&3, you could set a size that is slightly bigger than the size generated. In your case you could set the on chip memory size to be 300KB.

When you generate the hex file using the script in Eclipse, if it could not fit into the on chip memory, it will generate an error.

What kind of statistic tool that you are looking at? Do you have an example?

Regards

Jingyang,Teh

@JingyangTeh_Altera

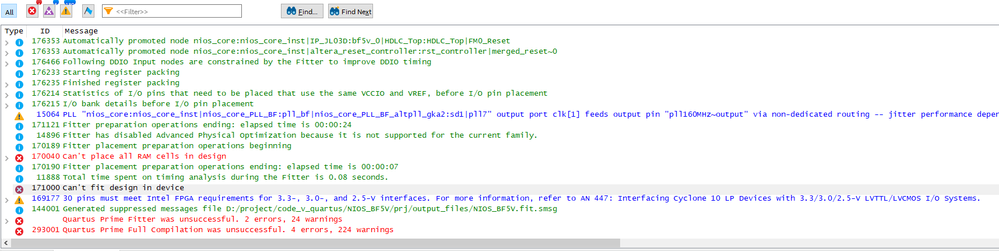

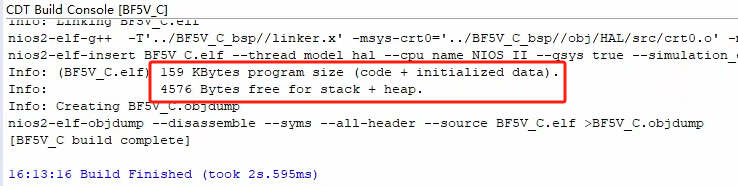

1) please see the following picture. when I build the C code, I was told 159Kbytes code and initialized data. however, I set 120KBytes RAM and 80KBytes ROM. why the NIOS core is able to run the code that is bigger than 80KBytes ROM?

2) when I set 120KByte RAM, I was always told 4576Bytes free for stack +heap. when set 160KBytes RAM, I was also told 4576Bytes free for stack +heap. That is very weird.

3) The tool I am looking for is to count the .data, .bss, .rodata and .text total size that all obj files take. is there a tool?

Hi

Which boot method are you using right now?

Regards

Jingyang, Teh

Hi

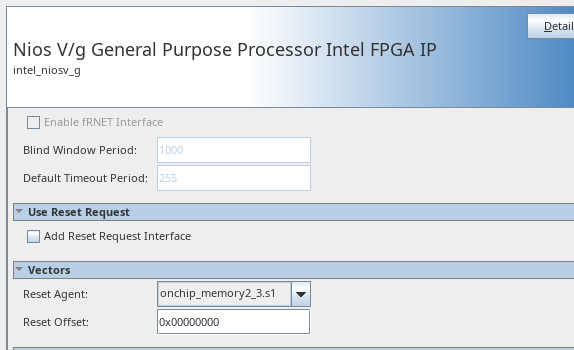

Could you take a look at the vector option that you have selected under the NiosV settings.

The screenshot below.

For booting from on chip memory, the vectors should be set to on chip memory.

https://www.intel.com/content/www/us/en/docs/programmable/726952/25-1/hardware-design-flow-37139.html

Could you try taking a look at the link below for a step by step to create a NiosV project.

https://community.intel.com/t5/Nios-V-II-Embedded-Design-Suite/Nios-V-Processor-Installation-and-Hello-World-Execution-Part-1/m-p/1552554#M52380

Regards

Jingyang, Teh

Hi

Did you go through the link in the previous comment?

Do you have any follow up question?

Regards

Jingyang, Teh
