MAX 10 - Internal ADCs - analog inputs configuration

Hi,

We want to run the internal ADCs on the 10M25DAF256I7G FPGA.

In this device, there are 2 dedicate analog inputs called "ANAIN1" and "ANAIN2", and 16 pins for analog input or I/O (under bank 1A) called "ADC[1..2]IN[1..8]".

The plan is to use part of the 16 pins as analog input and the other as I/O.

ADC_VREF = 2.5[v]

VCCIO1A = 3.3[v]

Note - In our design, all I/Os should be configured as "3.3-V LVTTL".

Is this design correct?


Thanks.

Fpga Devkit

1 Reply

  • Mengzhe's avatar
    Mengzhe
    Icon for Occasional Contributor rankOccasional Contributor
    2 years ago

    Hi,

    • For 'The plan is to use part of the 16 pins as analog input and the other as I/O'

    As mentioned in Intel® MAX® 10 Analog to Digital Converter User Guide:

    'If you use bank 1A for ADC, you cannot use the bank for GPIO.'

    so other pins cannot be used as I/O.

    • ADC_VREF = 2.5[v]

    That's right.

    • VCCIO1A = 3.3[v]

    Refer to Intel® MAX® 10 FPGA Device Family Pin Connection Guidelines:

    'If you enable the ADC feature, connect VCCIO1A and VCCIO1B to 2.5 V.'

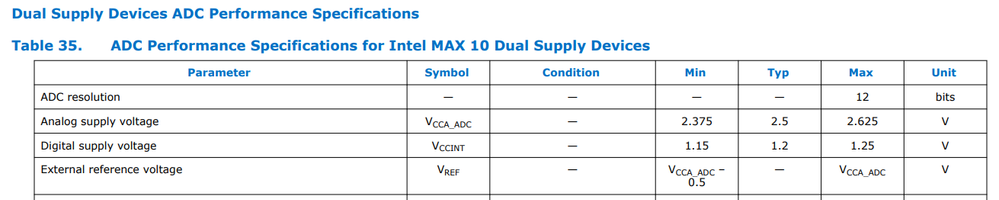

    Besides, for ADC, power supply VCCA_ADC and VCCINT are needed.

    BR,

    Mengzhe
