Occasional ContributorI'm generating a POF for CFI_2Gb (auto-detect shows 2*CFI_1Gb) and it fails to get written on the flash device. Erase was successful though.
Is there a document that shows how to program the Flash Devices on board?
Frequent ContributorHi JBayl,

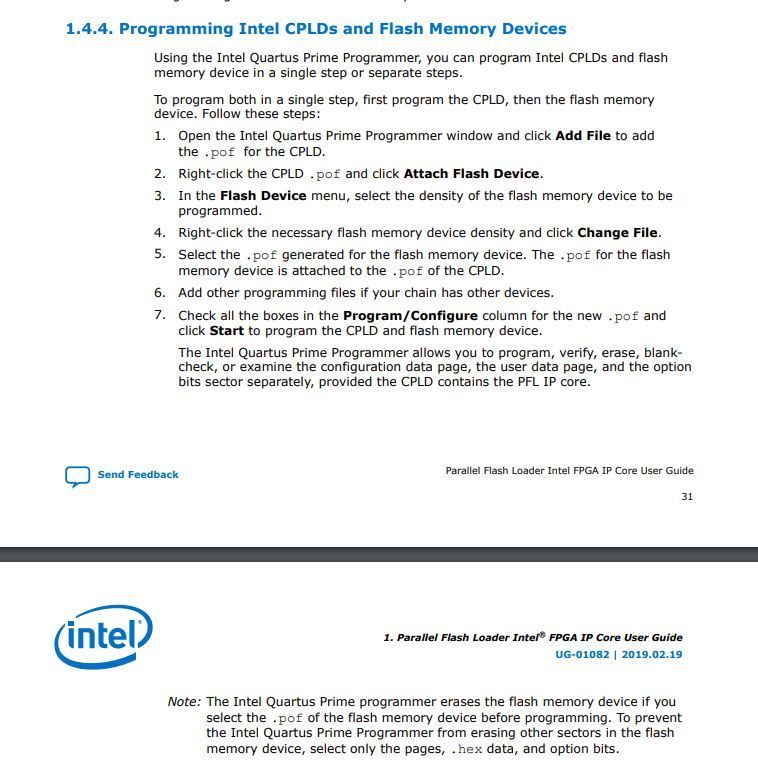

Have you tried this step?:
Cheers
Occasional ContributorHi,
My questions is specific for the Cyclone 10 GX development board. I can erase the NOR flash successfully but it fails when it goes into Programming. Are there extra steps in programming the 2*CFI_1Gb? The POF i'm generating is for 2Gb.
r/joel
Frequent ContributorHi JBayl,

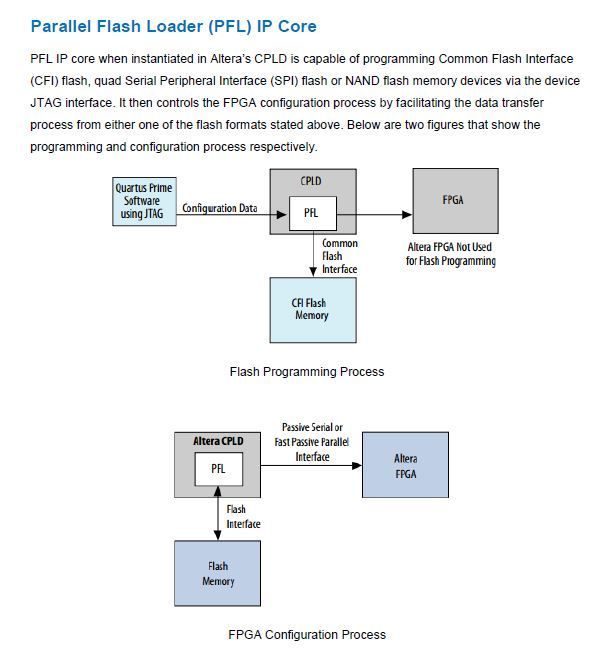

Basically, 2*CFI_1gb flash device is used to configure the FPGA in passive serial (PS) or fast passive parallel (FPP) scheme.
Thus, you need to instantiate PFL IP in MAX 10 device.
If you think this mode is complicated for you, you can used Active Serial (AS) mode. You can use EPCQL1024F24IN flash device for AS mode.
Cheers
Occasional ContributorHi Shafiq,
I think the PFL IP is still in the Max10 because Quartus can erase the 2*CFI flash but fails whenever its in the programming step. I've selected 1Gb and 2Gb for the sof to pof conversion and both generated POF aren't working. Is there a special step for "2*CFI"?
AS4 configuration works OK and I've been using it for development. What I'd like to do is restore to the development board to its factory default.
r/joel
Frequent ContributorHi JBayl,
If you want to restore the original MAX 10 design, go to <installation directory>\cyclone-10-gx-kit-collateral\examples\system_max10 and program the max10.pof.
Kit collateral link = https://www.intel.com/content/dam/altera-www/global/en_US/support/boards-kits/cyclone10/cyclone-10-gx-kit-collateral.zip
This will help you to restore the development board to its factory default.
Cheers
