EPF6016QC240 VCCIO level query

As the FPGA(EPF6016QC240-3) powered up with 5V, am curious about the output voltage levels from the FPGA, are they going to be 5V outputs too ?

Atleast from datasheet it shows they will be at 5V level outputs(Pls refer attachment).

I could not find PIN out document for the FPGA EPF6016QC240-3?

Can you pls clarify both queries ?

Fpga Devkit

4 Replies

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    Since this is legacy devices, I do not have much information to share here.

    However, I found the device pin out information. Please refer to the link below for the pinout of the device:

    https://www.intel.com/content/www/us/en/content-details/676623/epf6016-device-pin-outs-pdf-format.html


    Below link of the relevant documentation of the device:

    https://www.intel.com/content/www/us/en/support/programmable/support-resources/devices/flex-6000-support.html


  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    I hope the previous response was sufficient to help you proceed. As we do not receive any response from you on the previous reply have been provided, please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you by replying to this thread.


    Otherwise, it was really appreciated if you can take the evaluation survey and rate me for the excellent support you experienced. If you feel your dissatisfied with the support experience, please allow me to correct it or please let me know the cause so that I can improve your future support experience.


  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,

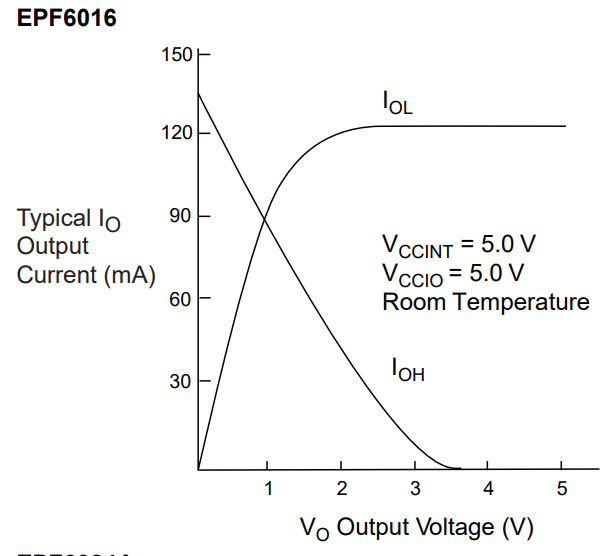

    there's more information about Voh in the datasheet, see Figure 18:

    According to the diagram, Voh doesn't comply with 5V CMOS Vih requirements. Notices that there's only 5V TTL but no 5V CMOS Voh spec in operation conditions. It's most likely possible to raise Voh with an external pull-up resistor.

  • Vinayk's avatar
    Vinayk
    Icon for New Contributor rankNew Contributor
    2 years ago

    Thank you for sharing the replies.

    With the pin out information, I understand the device has the VCCIO pins, in the design as we used 3.3V for the VCCIO pins, it's obvious to have the output voltage levels aligned to the same voltage level, which would be 3.3V.

    Thank you
