Cyclone V GND pins

In one of our projects, which used 5CGXFC5F6M11I7N (Cyclone V) during the layout had been done mistake. How affected on FPGA if up to 4 GND balls are not connected?

3 Replies

  • AminT_Intel's avatar
    AminT_Intel
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hello,

    I am sorry to hear of what happened. Does your FPGA shows any abnormal activities?

    Thanks

    • DimaBA's avatar
      DimaBA
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello.

      No, the FPGA doesn't show any abnormal behavior.

      Before I give waiver for next PCB assemblies, I just want be sure that won't be any issues with FPGA.

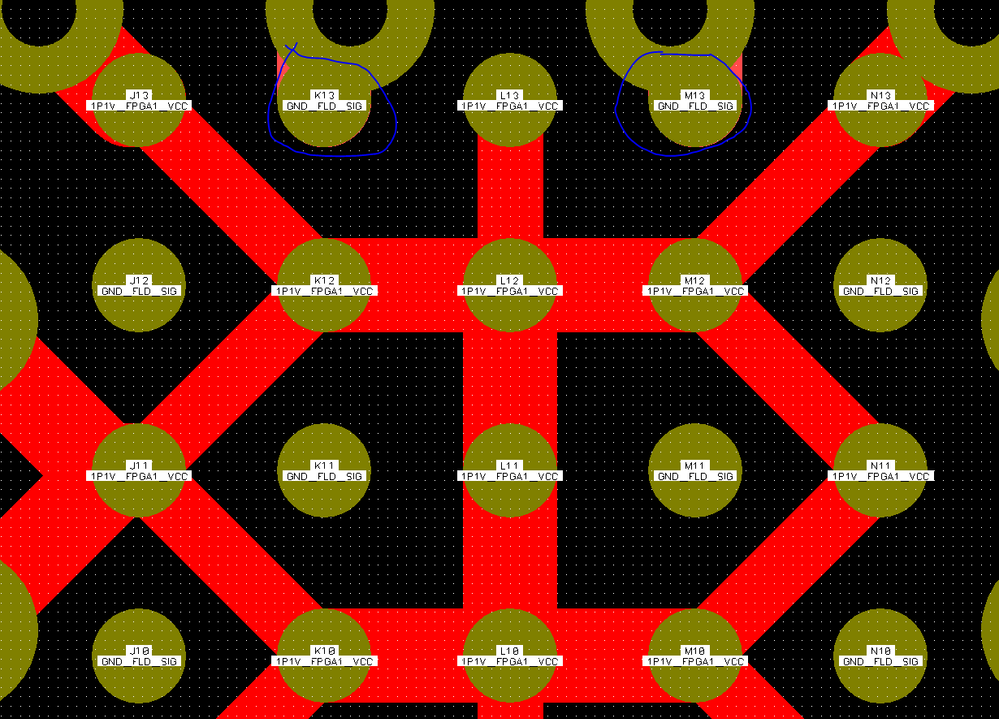

      Attached2 of 4 problem pads

      • AminT_Intel's avatar
        AminT_Intel
        Icon for Regular Contributor rankRegular Contributor
        5 years ago

        Hello,

        It seems like your FPGA is working fine. Sometimes FPGA can be damaged over long-term period like example when you set the voltage out of specs.

        Thank you.
