Bootup stuck at starting lighttpd web server: lighttpd

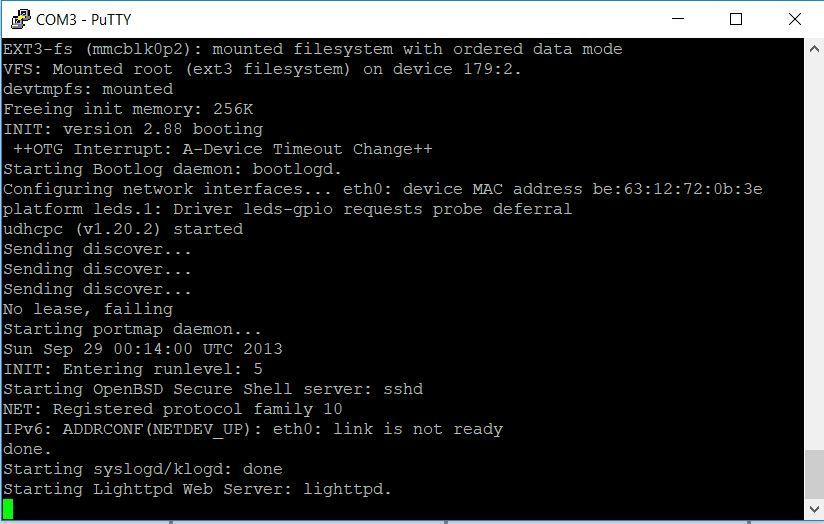

​Hello, i have successfully compiled my very simple counter design and made .rbf file. I copied .rbf file onto FAT partition of my SD card and plugged it into my cyclone V socket board. But the boot stuck at the point as shown in fig. I tried almost every combination of SW6 settings. But either the Linux is boot up successfully and my FPGA is not configured or my FPGA is configured but my Linux boot is stuck at the point as shown in the figure. I am using microSD card image as provided by TERASIC (the factory microsd image). I also tried using every .rbf configuration (FPP, compressed, uncompressed) but I am stuck here. Can anyone help me what do I do?

  • FawazJ_Altera's avatar
    FawazJ_Altera
    6 years ago

    Hello,

    Even if you change the FPGA image (any customization), you still can use the sdcard after updating the following files:

    1- rbf file, remove the old and replace it with the new one.

    2- update uboot and preloader.

    3- update the device tree.

    I would suggest to backup the sdcard image first, you can use win32diskimager to read your sdcard, and store the factory image.

    After that, you can generate the new rbf file, uboot and preloader with device tree.

    This link will help you to check how to update the files above:

    https://rocketboards.org/foswiki/Main/GettingStarted

    Select your board, select your quartus version, and then select the flow.

    You might not be able to see your board in the list, you can select Cyclone V SoC.

    Thanks
