Help with using I/O channels in OpenCL

I'm having issues using IO channels in OpenCL using the DE1SOC board from Terasic, I've modified the BSP and added in a basic LED controller to test it but still cannot make the LED light up, here is a list of files i've modified.

  • I've modified the system.qsys to include the controller and hooked up the clk and reset signals to the kernel, along with exporting the output so that it can be attached in the top.v file.

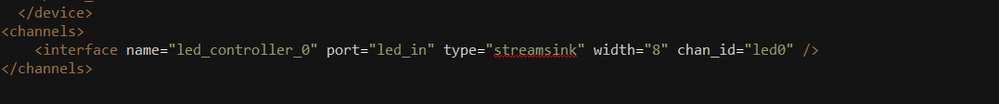

  • I've added the IO interface to the board.xml file so that it can correctly detect where to output the channel data to.

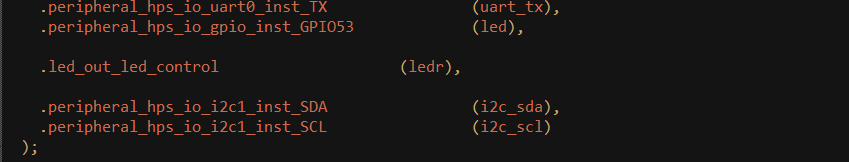

  • I've modified the top.v and .qsf file so that the led_controller output is connected to the right pin

I'm attaching the picture of the places where I've modified the original bsp files and including the verilog model of the led_controller.

4 Replies

  • JSell4's avatar
    JSell4
    Icon for New Contributor rankNew Contributor
    7 years ago

    Any help would be greatly appreciated, I'm relatively new to this.

  • FawazJ_Altera's avatar
    FawazJ_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago
    Hello, Kindly allow me some time to investigate about this request thanks
  • FawazJ_Altera's avatar
    FawazJ_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    7 years ago

    Hello,

    Did you try hooking led_in to a direct switch and make sure rest of the circuit works fine and the LED lights up successfully?

    Once you have confirmed this, how are you connecting the led_in[0] to the AVST intf generated by the compiler? Is it connect to the valid or the databus.

    Thanks
