FIM and BMC Firmware not available on Acceleration Board A10

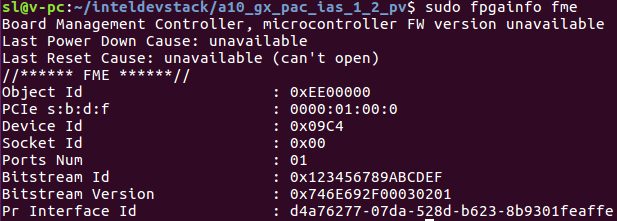

I was installing OPAE on host machine, my PC, for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA and encounted the attached problem when ruuning the following command

$ sudo fpgainfo fme

Any helpful suggestion ?

Thanks

  • JohnT_Altera's avatar
    JohnT_Altera
    5 years ago

    Hi,


    Since your PAC card is from 1.0Beta version, you will need to update it to 1.1 version before proceeding to 1.2.


    So you will need to update the board to 1.1 PV before updating to 1.2 PV. Sorry for the inconvenience.


    Follow the "Identifying and Updating FIM" section of the 1.1PV version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA to first update to 1.1PV FIM (dcp_1_1.rpd).

    Note: • It is acceptable to leverage the 1.2 OPAE packages when following the FIM update instructions from the 1.1PV version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA.

    • 1.1PV runtime download package can be located here. For access to the previous version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA, refer to the "Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA Archives" section.

    2. Follow the instructions in the "Updating FPGA Flash and BMC Firmware" section in the current version of this document


43 Replies

Show More
  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,

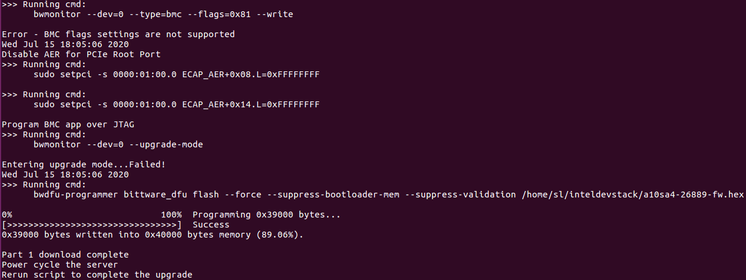

    From the screen shot provided, it looks like the update is performing the update on the wrong PCIe. Could you try to performed "sudo setpci -s 0000:01:00.0 ECAP_AER+0x08.L=0xFFFFFFFF"?


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      I tried this command but nothing happened.

      Should I try to remove the card and set it on another PCIe interface?

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    It looks like you are able to set it without any issue.


    The previous error you observed is due to the incorrect PCIe bus used. May I know if you are selecting the correct bus when you performed the update?


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi,

      What do you mean by selecting correct bus? I didn't do anything about PCIe bus. And how to check it?

      By the way, what I'm doing is quite urgent and it has already delayed. Is there any better way to improve the efficiency of communication?

      Thanks!

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    HI,


    If you look into the error when you performed the update on the FIM and BMC, it is performing "sudo setpci -s 0000:00:01.0 ECAP_AER+0x08.L=0xFFFFFFFF" where the correct PCI to use based on your system is "sudo setpci -s 0000:01:00.0 ECAP_AER+0x08.L=0xFFFFFFFF"


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago
      Okay, sorry I missed that. So should I write this bus fixed in the script?
    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      After I wrote fixed the bus, the script can run till finished but during the process there were some errors which I was not sure the first part of upgrade conpleted.

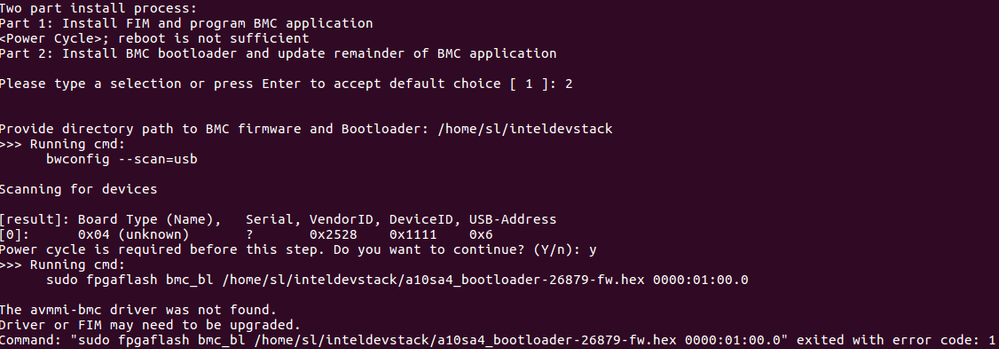

      Besides, when I came to the second part of installation using same script, there was a new error occurred as shown in following screenshot

      Here is the result using sudo fpgainfo fme command. It seems the card is now on 1.0 beta version according to the Pr Interface Id number, which made me confused. And still, the FW version is not available.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Since your PAC card is from 1.0Beta version, you will need to update it to 1.1 version before proceeding to 1.2.


    So you will need to update the board to 1.1 PV before updating to 1.2 PV. Sorry for the inconvenience.


    Follow the "Identifying and Updating FIM" section of the 1.1PV version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA to first update to 1.1PV FIM (dcp_1_1.rpd).

    Note: • It is acceptable to leverage the 1.2 OPAE packages when following the FIM update instructions from the 1.1PV version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA.

    • 1.1PV runtime download package can be located here. For access to the previous version of the Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA, refer to the "Intel Acceleration Stack Quick Start Guide for Intel Programmable Acceleration Card with Intel Arria 10 GX FPGA Archives" section.

    2. Follow the instructions in the "Updating FPGA Flash and BMC Firmware" section in the current version of this document


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Thanks for the advice. I've successfully upgraded the card to 1.2 version.

      Well, the new problem is when I moved on to the next part, Running FPGA Diagnostics, in the user guide and run the command sudo fpgabist $OPAE_PLATFORM_ROOT/hw/samples/nlb_mode_3/bin/\
      nlb_mode_3.gbs it gave the result of Unknown AFU for available BIST Modes: /hw/samples/dma_afu/bin/dma_afu.gbs rather than the sample output.

      What does this mean? Was I missing something?

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    May I know if you have configure the FPGA using bitstream from 1.2? Could you provide me the step that you used?


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

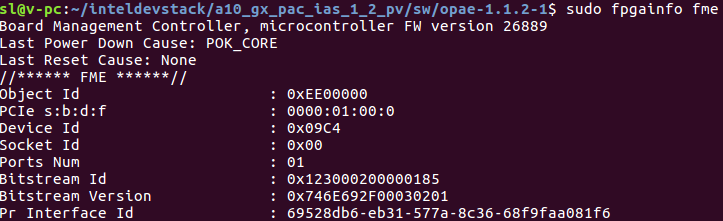

      So first of all, after the update, I ran sudo fpgainfo fme to check FIM and BMC version

      After that, I ran

      sudo sh -c "echo 20 > /sys/kernel/mm/hugepages/hugepages-\2048kB/nr_hugepages"

      to configure the number of system hugepages the FPGA fpgadiag utility requires.

      Then I ran
      sudo fpgabist $OPAE_PLATFORM_ROOT/hw/samples/nlb_mode_3/bin/\nlb_mode_3.gbs

      to configure and run diagnostics with NLB_3 AFU image and get the result of screenshot in previous reply.

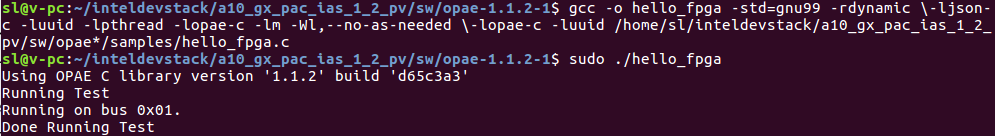

      On top of that, I ignored this issue and ran the hello_fpga example getting the result as shown in following screenshot:

      Does it mean I've already brought up the card?

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    It looks like you are able to run Hello World without any issue. Could you retry with the nlb design?


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Not working, the AFU is still unknown for available BIST Modes: /hw/samples/dma_afu/bin/dma_afu.gbs the same as before when I ran sudo fpgabist $OPAE_PLATFORM_ROOT/hw/samples/nlb_mode_3/bin/\
      nlb_mode_3.gbs.

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    How about other bitstream? Or are you facing issue on nlb bitstream?


    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      I don't know about other bitstream. I just want to configure and run diagnostics with NLB_3 AFU image because in section 5 of quick start guide saying current AFUs accepted are nlb_mode_3 and dma_afu.

      If this step doesn't complete, will it affect the future design?

    • FL's avatar
      FL
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi,

      I've already fixed this issue by rerunning the command in related section of user guide.

      By now, I only have the problem of compiling the hello_afu example which we discussed in another post.

      Thanks!

  • JohnT_Altera's avatar
    JohnT_Altera
    Icon for Regular Contributor rankRegular Contributor
    5 years ago

    Hi,


    Could you provide the step you used to performed the testing?
