./pac_hssi_e10: error while loading shared libraries: fpga_hssi.so: cannot open shared object file: No such file or directory when I was following the 10Gbps Ethernet Accelerator Functional Unit Design Example user guide

Dear Sir/Madam,

I am having a software error issue when I was running the example based on the 10Gbps Ethernet Accelerator Functional Unit Design Example user guide.

error was this

./pac_hssi_e10: error while loading shared libraries: fpga_hssi.so: cannot open shared object file: No such file or directory.

I just list what I have done here ,any suggestion is welcome.

There are two PAC CARD inserted in my server

[root@fig01 bin]# ls -lrt /sys/class/fpga/intel-fpga-dev.*/

/sys/class/fpga/intel-fpga-dev.0/:

total 0

-rw-r--r--. 1 root root 4096 Feb 27 12:59 uevent

drwxr-xr-x. 12 root root 0 Feb 27 12:59 intel-fpga-fme.0

drwxr-xr-x. 4 root root 0 Feb 27 12:59 intel-fpga-port.0

lrwxrwxrwx. 1 root root 0 Feb 27 12:59 subsystem -> ../../../../../../class/fpga

drwxr-xr-x. 2 root root 0 Feb 27 13:00 power

lrwxrwxrwx. 1 root root 0 Feb 27 13:32 device -> ../../../0000:3b:00.0

/sys/class/fpga/intel-fpga-dev.1/:

total 0

-rw-r--r--. 1 root root 4096 Feb 27 12:59 uevent

drwxr-xr-x. 4 root root 0 Feb 27 12:59 intel-fpga-port.1

drwxr-xr-x. 12 root root 0 Feb 27 12:59 intel-fpga-fme.1

lrwxrwxrwx. 1 root root 0 Feb 27 12:59 subsystem -> ../../../../../../class/fpga

drwxr-xr-x. 2 root root 0 Feb 27 13:00 power

lrwxrwxrwx. 1 root root 0 Feb 27 13:32 device -> ../../../0000:d8:00.0

You have new mail in /var/spool/mail/root

Check further information including Pr Interface Id and BMC version

[root@fig01 bin]# fpgainfo fme

Board Management Controller, microconetroller FW version 26889

Last Power Down Cause: POK_CORE

Last Reset Cause: None

//****** FME ******//

Object Id : 0xED00001

PCIe s:b:d:f : 0000:D8:00:0

Device Id : 0x09C4

Socket Id : 0x00

Ports Num : 01

Bitstream Id : 0x123000200000185

Bitstream Version : 0x562800030201

Pr Interface Id : 69528db6-eb31-577a-8c36-68f9faa081f6

Board Management Controller, microcontroller FW version unavailable

Last Power Down Cause: unavailable

Last Reset Cause: unavailable (can't open)

//****** FME ******//

Object Id : 0xED00000

PCIe s:b:d:f : 0000:3B:00:0

Device Id : 0x09C4

Socket Id : 0x00

Ports Num : 01

Bitstream Id : 0x123000200000185

Bitstream Version : 0x562800030201

Pr Interface Id : 69528db6-eb31-577a-8c36-68f9faa081f6

Check hssi information as needed as below

root@fig01 sw]# ls /sys/class/fpga

intel-fpga-dev.0 intel-fpga-dev.1

[root@fig01 sw]# ls /sys/class/fpga/intel-fpga-dev.0/

device intel-fpga-fme.0 intel-fpga-port.0 power subsystem uevent

[root@fig01 sw]# ls /sys/class/fpga/intel-fpga-dev.0/intel-fpga-fme.0/

altr-asmip2.0.auto bitstream_id cache_size dperf emif_mgmt fpga_manager modalias power revision subsystem uevent

avmmi-bmc.2.auto bitstream_metadata dev driver errors intel-pac-hssi.1.auto ports_num pr socket_id thermal_mgmt version

[root@fig01 sw]# ls /sys/class/fpga/intel-fpga-dev.1/

device intel-fpga-fme.1 intel-fpga-port.1 power subsystem uevent

[root@fig01 sw]# ls /sys/class/fpga/intel-fpga-dev.1/intel-fpga-fme.1/

altr-asmip2.3.auto bitstream_id cache_size dperf emif_mgmt fpga_manager modalias power revision subsystem uevent

avmmi-bmc.5.auto bitstream_metadata dev driver errors intel-pac-hssi.4.auto ports_num pr socket_id thermal_mgmt version

So we can summary as below

PAC Card 0

3B:00:00

intel-fpga-dev.0

intel-fpga-fme.0

intel-fpga-port.0

intel-pac-hssi.1.auto

PAC Card 1

D8:00:00

intel-fpga-dev.1

intel-fpga-fme.1

intel-fpga-port.1

intel-pac-hssi.4.auto

and further operation will based on above information.

[root@fig01 build_synth]# sudo fpgaconf -B 0xd8 -D 0 -F 0 eth_e2e_e10.gbs

[root@fig01 build_synth]# pwd

/root/inteldevstack/a10_gx_pac_ias_1_2_pv/hw/samples/eth_e2e_e10/build_synth

[root@fig01 build_synth]# cd ..

[root@fig01 eth_e2e_e10]# ls

bin build_synth hw README sw

[root@fig01 eth_e2e_e10]# cd sw

[root@fig01 sw]# make

make: Nothing to be done for 'all'.

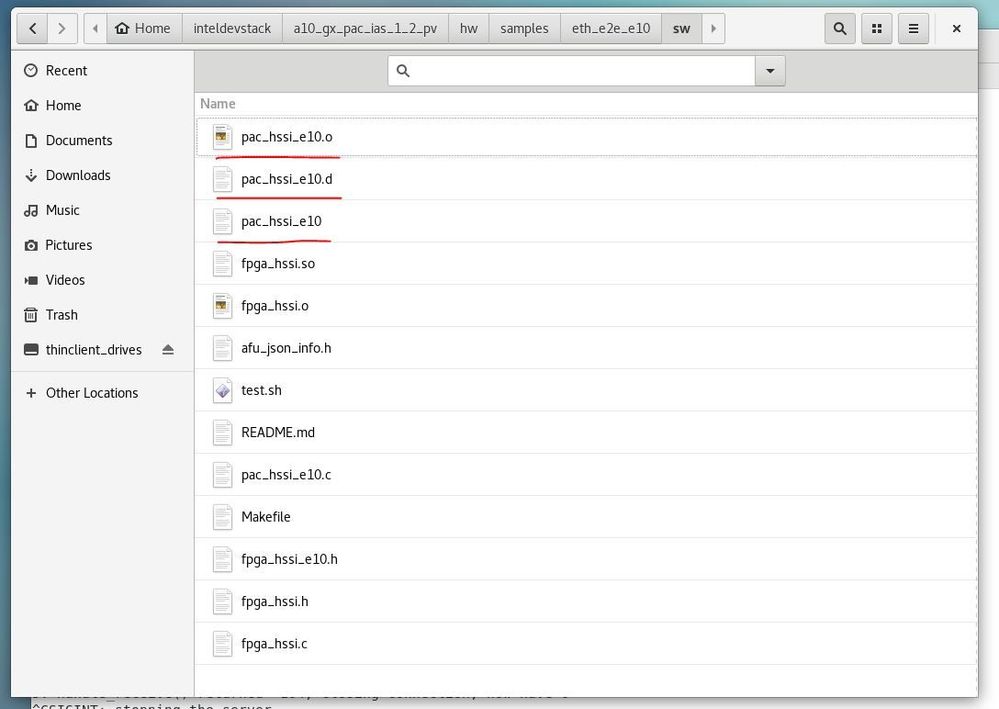

the reason was I have done make before, but I can confirm relavant files was generated as below

[root@fig01 sw]# sudo sh -c "echo 10 > /sys/class/fpga/intel-fpga-dev.1/intel-fpga-fme.1/intel-pac-hssi.4.auto/hssi_mgmt/config"

[root@fig01 sw]# sudo chmod 666 /dev/intel-fpga-port.1

[root@fig01 sw]# export LD_LIBRARY_PATH='pwd':$LD_LIBRARY_PATH

[root@fig01 sw]# ./pac_hssi_e10 -b 0xd8 -d 00 -f 00 --action=loopback_enable

./pac_hssi_e10: error while loading shared libraries: fpga_hssi.so: cannot open shared object file: No such file or directory

[root@fig01 sw]#

would you please any other test I can try?

thanks

Jim
