Why isn’t a programming (SOF) file generated for the F-Tile Dynamic Reconfiguration Suite IP available for Example Designs when using the Quartus® Prime Pro Edition software versions 25.3 and earlier?

Description

Due to starting from the Quartus® Prime Pro Edition software version 25.3 and earlier, it is compulsory to connect all the I/O ports to the correct PIN location. If any of the design I/O ports are floating and not properly connected, Quartus software will not be able to generate the programming file for the design compiled. This is mentioned in the Quartus Prime Pro Edition User Guide version 25.1.1 in 1.2. Generating Secondary Programming Files and provide the guidelines to the user on how to fix the Quartus software critical warning and successfully create the programming file for your design. Why don’t I get a programming file when I compile with the....

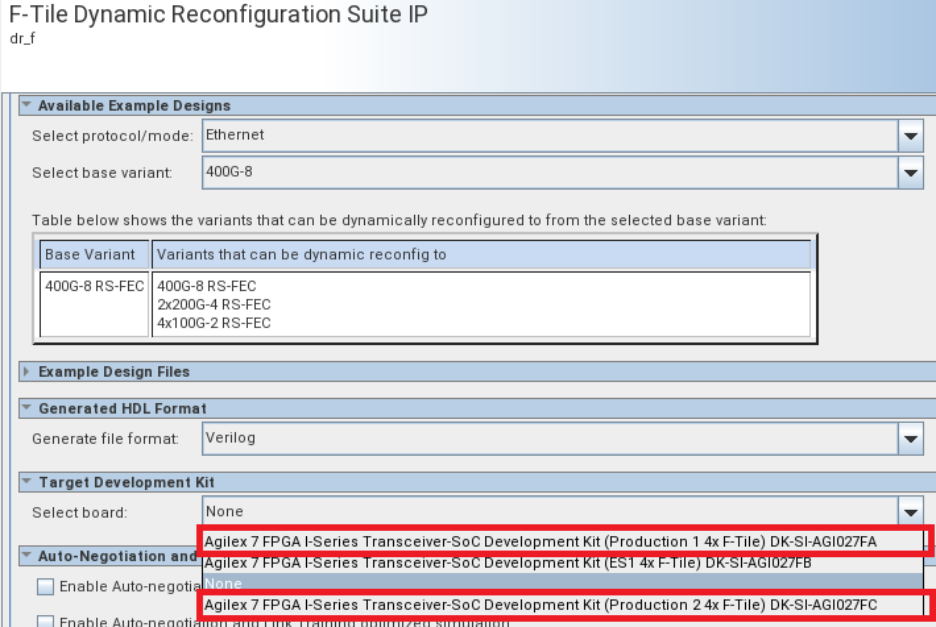

Similar programming (SOF) file generation problem you may observe when you generate the F-Tile Dynamic Reconfiguration Suite IP Example Designs by selecting Target Development Kit with option 1) Agilex™ 7 FPGA I-Series Transceiver-SoC Development Kit (Production 1 4xF-Tile) DK-SI-AGI027FA or 2) Agilex 7™ FPGA I-Series Transceiver-SoC Development Kit (Production 2 4xF-Tile) DK-SI-AGI027FC. As shown in the figure below.



Resolution

As a workaround, generate the F-Tile Dynamic Reconfiguration Suite IP Example Designs by selecting the Target Development Kit with the option you want and compiling the design. Review the I/O Assignment Warnings report, found in the Place sub-section of the Fitter section of the compilation report. Alternatively, review the <revision>.fit.plan.rpt report file. For any pins in the I/O Assignment Warnings report that are reported as “Missing location assignment” or “Missing I/O standard,” add the appropriate location or I/O standard assignment. For help making these assignments, refer to Assigning I/O Pins. After adding any required assignments, recompile the design to generate a programming file.



This problem is scheduled to be fixed in a future release of the Quartus® Prime Pro Edition software.
