drivers/src/altera_s10_mailbox_client.c:32:59: error: 'OS_FLAG_SET' undeclared (first use in this function); did you mean 'ALT_FLAG_SET'?
Description Due to a problem in Quartus® Prime Pro Edition Software, you might see an error when compiling Nios® V software with the Mailbox Client IP or 16550 Compatible UART Core driver, in FreeRTOS environment. This is because the driver software of the IP is using “MicroC/OS-II”-specific OS_* macros. Resolution The recommended macros are the OS-independent ALT_* macros. MicroC/OS-II Real-Time Operating System - Thread-Safe HAL Drivers FreeRTOS Real-Time Operating System - Thread-Safe HAL Drivers Replace the OS_* accordingly. MicroC/OS-II Macros Replace to OS_FLAG_SET ALT_FLAG_SET OS_FLAG_CLEAR ALT_FLAG_CLEAR OS_FLAG_WAIT_SET_ALL ALT_FLAG_WAIT_SET_ALL_WO_CONSUME (OS_FLAG_WAIT_SET_ALL + OS_FLAG_CONSUME) ALT_FLAG_WAIT_SET_ALL_WITH_CONSUME OS_FLAG_WAIT_SET_ANY ALT_FLAG_WAIT_SET_ANY_WO_CONSUME (OS_FLAG_WAIT_SET_ANY + OS_FLAG_CONSUME) ALT_FLAG_WAIT_SET_ANY_WITH_CONSUME OS_FLAG_GRP* group ALT_FLAG_GRP(group)
Why are Vectored Interrupt Controller IP and Trace Interface IP for Lauterbach missing from Quartus® Prime Pro software IP Catalog?
Description Due to a problem in the Quartus ® Prime Pro Edition Software version 25.3.1 and 26.1, Vectored Interrupt Controller IP and Trace Interface IP for Lauterbach are missing from IP Catalog. It is due to a bug in the IP Catalog. Refer to Embedded Peripherals IP User Guide - Device Support (PDF) for the Vectored Interrupt Controller IP device support. Refer to Nios® II – Lauterbach Trace32 Debug system for more information about Trace Interface IP for Lauterbach. Resolution A patch is available to fix this problem for the Quartus ® Prime Pro Edition Software version 26.1. Download and install patch 0.11 below. Quartus® Prime Pro Edition Software v26.1 Patch 0.11 This problem is currently scheduled to be resolved in a future release of the Quartus ® Prime Pro Edition Software.Why does Board Support Package (BSP) Editor in Quartus® Prime Pro Embedded Edition fails to generate Nios® V processor BSP project from .vds file?
Description Due to a problem in the Quartus® Prime Pro Embedded Edition Software version 26.1 and 26.1.1, the BSP Editor fails to generate Nios® V processor BSP project from .vds file. This issue is not affecting BSP project generation: From .qsys file using BSP Editor in Quartus® Prime Pro Embedded Edition software, or Using BSP Editor in Quartus® Prime Pro Edition software. This issue is caused by a software bug in the BSP Editor of Quartus® Prime Pro Embedded Edition software. Refer to Nios V Embedded Processor Design Handbook - Recommended Tools from Quartus Prime Installer (PDF) for more information on the difference between Quartus® Prime Pro Edition and Quartus® Prime Pro Embedded Edition software. Resolution To work around this problem in the Quartus® Prime Pro Embedded Edition Software version 26.1 and 26.1.1, apply either one of the workarounds below: Switch from .vds to .qsys file Use BSP Editor in Quartus® Prime Pro Edition software version 26.1 or 26.1.1 This problem is currently scheduled to be resolved in a future release of the Quartus® Prime Pro Embedded Edition Software.Error: Unknown option: -port_type while execute set_instance_assignment with the option
Description Due to a problem in the Quartus® Prime Pro Edition Software version 25.3 and 25.1.1, you might see this error when running a "set_instance_assignment" with -port_type option e.g. Error:Unknown option: -port_type Error:--------------------------------------------------------------------------- Error:Usage: set_instance_assignment [-h] [-help] [-long_help] [-comment <comment>] [-disable] [-entity <entity_name>] [-fall] [-from <source>] -name <name> [-remove] [-rise] [-section_id <section id>] [-tag <data>] [-to <destination>] [<value>] Error: -h: Quick usage Error: -help: Short help Error: -long_help: Long help with examples and possible return values Error: -comment <comment>: Comment Error: -disable: Option to disable assignment Error: -entity <entity_name>: Entity to which to add assignment Error: -fall: Option applies to falling edge Error: -from <source>: Source of assignment Error: -name <name>: Assignment name Error: -remove: Option to remove assignment Error: -rise: Option applies to rising edge Error: -section_id <section id>: Section id Error: -tag <data>: Option to tag data to this assignment Error: -to <destination>: Destination of assignment Error: <value>: Assignment value Error:--------------------------------------------------------------------------- Error: while executing Error:"set_instance_assignment -name DUPLICATE_SYNC_FANIN …" Resolution A patch is available to fix this problem in the Quartus Prime Pro Edition Software version 25.3. Download and install patch 0.24 below. A patch is available to fix this problem in the Quartus Prime Pro Edition Software version 25.1.1. Download and install patch 1.49 below. The problem has been fixed starting with Quartus® Prime Pro Edition software version 26.1.
Can I perform multiple compilations at the same time on one computer with a single-seat license?
Description You cannot perform multiple simultaneous compilations using the Quartus® Prime Software if you have a floating license with a single license seat. The number of concurrent compilations that can be run on a single computer cannot exceed the number of available license seats. If you have one fixed (node-locked) license, you can run multiple simultaneous compilations on that machine. Resolution See the related solution below for details on when the Quartus® Prime Software checks for available licenses. Related Articles When is a license checked out by the Quartus II software, IP cores and ModelSim-Altera Edition software?Fatal Error: RUNTIME_0181 Calling undefined DPI 'simsf_constra3' routine

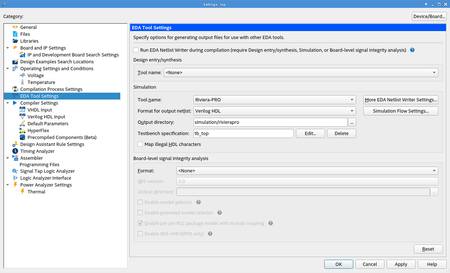

Description Due to a problem in the Quartus® Prime Pro Edition Software version 24.3 for Windows, you might see this error when automating simulation with the Run Simulation feature. The error only occurs when the selected EDA simulator in Settings > EDA Tool Settings > Simulation > Tool name is Riviera-PRO. This error can happen in one of the following two ways: If the 'Simulation scripts generation only' option in Settings > EDA Tool Settings > Simulation Flow Settings is On (default) and the following commands are executed in Quartus® Prime Tcl Console: execute_flow -simulation cd ./simulation/rivierapro/rtlsim exec run_sim_command.bat If the 'Simulation scripts generation only' option is Off and the following command is executed in Quartus® Prime Tcl Console: execute_flow -simulation Resolution To work around this problem: Set the 'Simulation scripts generation only' option to On (default). Execute the following command in Quartus® Prime Tcl Console: execute_flow -simulation Execute the following commands in the Command Prompt window: cd ./simulation/rivierapro/rtlsim run_sim_command.bat The problem has been fixed starting with Quartus® Prime Pro Edition software version 25.1.Why is my IP license checked out and not released after using the Signal Tap Logic Analyzer?
Description Due to a problem in the Quartus® Prime Pro Edition Software version 25.3, you might see that an IP license is checked out and not released when using the Signal Tap Logic Analyzer. Resolution To work around this problem, use the standalone version of the Signal Tap Logic Analyzer. This problem is fixed beginning with version 26.1 of the Quartus® Prime Pro Edition SoftwareError: Tcl error: DVR_API: List of error MSGs are {list element in braces followed by "]" instead of space
Description Due to a problem in the Quartus® Prime Pro Edition Software version 25.3.1, you might see this error when compiling your design in Design Space Explorer II. Error: Tcl error: DVR_API: List of error MSGs are {list element in braces followed by "]" instead of space (Command was: lmap panel_name [::qed_lib::rdb_util::get_report_panel_names_matching -panel_name {} -string_match {Synthesis||Logic Synthesis Stage||Partition*||*Optimization Results||Multiplier Implementations||Multiplier Implementation Report} -regexp_match {}] {::qed_lib::rdb_util::get_report_panel_str -panel_name $panel_name})} Resolution To work around this problem in the Quartus® Prime Pro Edition Software version 25.3.1, download and install patch 1.21 This problem is fixed beginning with version 26.1 of the Quartus® Prime Pro Edition Software.Why does my Quartus® Prime Installation fail with certificate error: SSL certificate problem: unable to get local issuer certificate (curlcode 60)?
Description Due to a problem in the Quartus® Prime Installer Software, you might see the error message shown below when you click Download & Install. This happens because the certificate bundled with the Quartus® Prime Installer Software is no longer accepted by the Altera® Content Delivery Network (CDN). As a result, secure downloads initiated during the installation process cannot be verified using the outdated certificate. The issue impacts the Installer for the following versions of Quartus software: Operating System Quartus Prime Pro Installer Version(s) Quartus Std/Lite Installer Version(s) Microsoft Windows* 23.3 to 25.3.1 23.1std to 25.1std Linux* 23.3 to 23.4 23.1std The KDB workaround provided below applies to the following versions of Quartus software: Quartus Prime Pro Installer Version(s) Quartus Std/Lite Installer Version(s) KDB workaround applies to 24.3 to 25.3.1 24.1std to 25.1std Note that for all other affected versions not covered by the KDB, you cannot use the installer workaround and must download Quartus software package files individually without using the installer. Separate packages can be found in the Individual Files tab of the Quartus Software Download pages. Resolution To work around this problem, follow these steps: 1. Download and unzip the cacert.zip, which contains the cacert.pem certificate file. 2. Specify the new certificate using one of the following methods: i) Command Line Interface (CLI): Open a command prompt or terminal and run the installer with the--cacert option, pointing to the new certificate file. Windows*: qinst_<version>.exe -sp"--cacert <full path to cacert.pem>" Linux*: qinst_<version>.run -- --cacert <full path to cacert.pem> ii) Graphical User Interface (GUI): - Open the Quartus® Prime Installer, navigate to Settings, locate the CA Certificate Path, and specify the full path to the cacert.pem certificate file. - Then, click Apply > OK. This problem is scheduled to be resolved in a future release of the Quartus® Prime Installer Software.Error: invalid command name "else"
Description Due to a problem in the Quartus® Prime Pro Edition Software version 25.3.1 and earlier, you might see the error messages below when generating a VHDL simulation model in Platform Designer that includes the Remote Update IP. Error: invalid command name "else" Info: while executing Info: "else { Info: do_vhdl_sim_cbx altera_remote_update_core Info: }" Info: (procedure "do_vhdl_sim" line 8) Info: invoked from within Info: "do_vhdl_sim altera_remote_update_core" Error: Generation stopped, 1 or more modules remaining Resolution To work around this problem, generate Verilog Simulation Model for Remote Update IP. This problem is fixed beginning with the Quartus ® Prime Pro Edition Software version 26.1.
