Questions about mSGDMA

Hi, all!

I'm currently learning how to implement data transfer using mSGDMA and have created a Qsys project for simulation verification. However, the simulation results show that the mSGDMA isn't functioning properly, and I need some assistance.

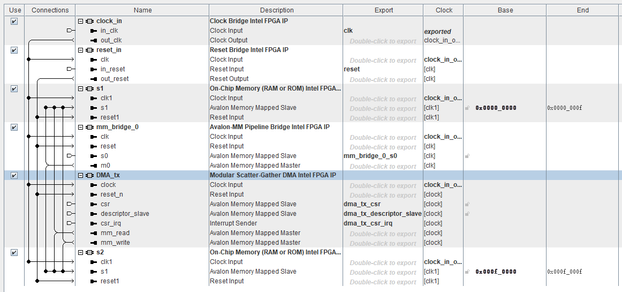

Below is my system view (with mSGDMA mode set to MM->MM):

During simulation, I performed the following steps:

1. Wrote data to address 0 of mem_s1 (32-bit data width), corresponding to the Avalon-MM address 20'b0.

2. Configured the mSGDMA descriptor with: Read address: 20'b0. Write address: 20'hF0000 (address 0 of mem_s2) .Transfer length: 4 bytes.

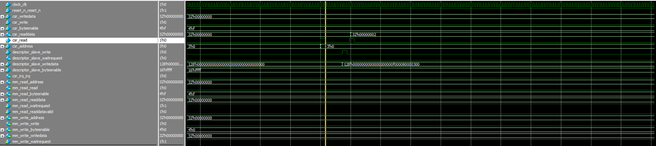

However, the data transfer did not occur. Below are the simulation results:

Anpeng

Platform
Simulation

4 Replies

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    7 months ago

    Hi


    Is it possible if you could share me your project and the steps of running the simulation.

    So that I could reproduce it on my end.


    Regards

    Jingyang, Teh


  • whitepau_altera's avatar
    whitepau_altera
    Icon for Contributor rankContributor
    7 months ago

    Hello Anpeng, thanks for posting.

    In Chapter 31 of the Embedded Peripherals IP User Guide, there is a section that mentions that you need to commit the descriptor information using the 'go' bit in the control field (bit 127).
    31.4.6. Control Field

    In your modelsim screenshot, I can see that bit 127 is clear, can you try setting it?
