hps-fpga problems with makefile error: #error You must define soc_cv_av or soc_a10 before compiling with HwLibs

Have you checked out the example projects included with your Demo Board? It may be a simple syntax error.

According to the documentation, the makefile should contain:

#

TARGET = my_first_hps-fpga

#

ALT_DEVICE_FAMILY ?= soc_cv_av

Hi,

Thank you for your reply.

​I was suspicious of a typo myself at first. Fortunately my demo board (de0 nano SOC) provides a make file and main.c file which I have been using so I don't think that I have any typos.

​

I'm wondering if it has something to do with the version of EDS that I am using. I think the de0 nano board came out on version 13.1 so I might try downloading that to see if it helps any. But I feel like there must be a way to make it work for EDS version 18.1 (and later). Do you have any other suggestions?

Thank you,

James

Hi ,

Can you please try to use the sample make file given in the answer in the below forum post, change it as per your needs and let us know the results.

https://forum.rocketboards.org/t/soc-cv-av-or-soc-a10-before-compiling-with-hwlibs/1956/2

Thanks and Regards

Anil

Hello,

Thank you for your reply AnilA.

So I did see that forum post in the past and when I tried it, it did not work for me. However, this time whenever I tried it, I moved my make file and main.c file into the directory structure of my 18.1 EDS and now it seems to work. I still need to load the executable into the fpga to verify results. Does this seem reasonable to you? I would think that I should be able to run makefiles in any folder that I can navigate EDS into. What are your thoughts?

C:\intelFPGA\18.1\embedded\ is where the Embedded_Command_Shell.bat

C:\intelFPGA\18.1\embedded\hps-c is where my make file and main.c fileare

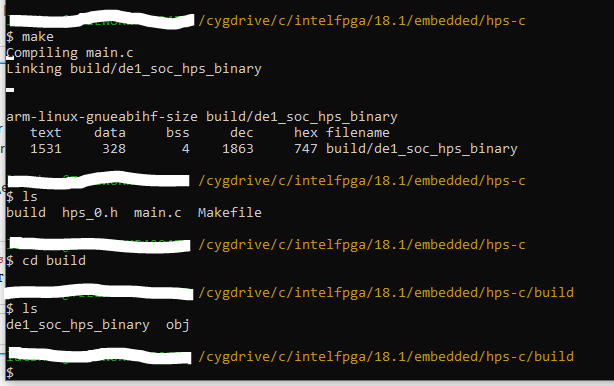

see the below screen shot:

copy of my make file (for whoever it may help):

Best Regards,

James

# This is the name of the binaries that will be generated
TARGET                  = de1_soc_hps_binary

# The device family (soc_cv_av = Cyclone V   ;   soc_a10 = Aria 10)
ALT_DEVICE_FAMILY       = soc_cv_av

# Some paths (Default should work)
HWLIBS_ROOT             = ${SOCEDS_DEST_ROOT}/ip/altera/hps/altera_hps/hwlib

# Here we add all *.c files that we want to compile
CSRCS                   = main.c

# Here we add all *.cpp files that we want to compile
CPPSRCS                 =

# Here we add the paths to all include directories
INCS                    =

# Parameters for SCP upload. Set up SSH keys to bypass password prompt
SCP_TARGET_IP           = 192.168.1.100
SCP_USER                = root
SCP_TARGET_PATH         = /home/root
SCP                     = SCP
SCP_FLAGS               =

# Compiler settings
ARCH                    = arm-linux-gnueabihf
LD                      = $(ARCH)-g++
CC                      = $(ARCH)-gcc
CPPC                    = $(ARCH)-g++
SIZE                    = $(ARCH)-size
CFLAGS                  = -g -std=gnu99 -Wall
CPPFLAGS                = -g -std=c++11 -Wall
LDFLAGS                 = -g -Wall

################################################################################
# Don't change anything below this line                                        #
################################################################################

# Some directory and file magic
BUILDDIR                = build
OBJDIR                  = $(BUILDDIR)/obj

# Generate the object names
OBJS                    = $(addprefix $(OBJDIR)/,$(addsuffix .o,$(basename $(CSRCS:%.c=%.o))))
OBJS                    += $(addprefix $(OBJDIR)/,$(addsuffix .o,$(basename $(CPPSRCS:%.cpp=%.o))))

# Add some paths
CFLAGS                  += $(INCS:%=-I%) -I$(HWLIBS_ROOT)/include -I$(HWLIBS_ROOT)/include/$(ALT_DEVICE_FAMILY) -D$(ALT_DEVICE_FAMILY)
CPPFLAGS                += $(INCS:%=-I%) -I$(HWLIBS_ROOT)/include -I$(HWLIBS_ROOT)/include/$(ALT_DEVICE_FAMILY) -D$(ALT_DEVICE_FAMILY)
LDFLAGS                 += $(INCS:%=-I%)

# This is the default target if the user does just calls 'make'
all: build size

# Build all the files
build: builddirs $(BUILDDIR)/$(TARGET)

# Create the required directories (if not already existing)
builddirs:
	@mkdir -p $(BUILDDIR)
	@mkdir -p $(OBJDIR)

# Link everything together
$(BUILDDIR)/$(TARGET): $(OBJS)
	@echo Linking $@
	@$(LD) $(LDFLAGS) -o $(BUILDDIR)/$(TARGET) $(OBJS)

# Compile c files
$(OBJDIR)/%.o: %.c
	@mkdir -p $(dir $@)
	@echo Compiling $^
	@$(CC) $(CFLAGS) -c -o $@ $^

# Compile cpp files
$(OBJDIR)/%.o: %.cpp
	@mkdir -p $(dir $@)
	@echo Compiling $^
	@$(CPPC) $(CPPFLAGS) -c -o $@ $^

# Print size information
size: $(BUILDDIR)/$(TARGET)
	@echo
	@echo
	$(SIZE) $^

# Clean up
clean:
	@rm -rf $(BUILDDIR) $(OBJS) $(TARGET) $(TARGET).* *.a *.o *~
	@echo Done

# Clean must be a phony target so make knows this never exists as a file
.PHONY: clean

# Upload to target
upload:
	$(SCP) $(SCP_FLAGS) $(BUILDDIR)/$(TARGET) $(SCP_USER)@$(SCP_TARGET_IP):$(SCP_TARGET_PATH)

Just a follow up, I was able to load the binary onto the de0 soc board and control the FPGA LEDS from the HPS (so cool!).

I have no idea whey the EDS is so picky, but maybe this is just one of those 'tips and tircks' to keep in mind.

Thanks,

James

Hi ,

Glad to know that the issue is resolved.

Thanks and Regards

Anil
