Agilex 5 with HPS Cryptographic services and bootflow

Hi I have a question regarding boot flow on agilex 5 with HPS with security in mind. I am aware how this is typically implemented on other SoCs like NXP but as for the Agilex - I just started working on this SoC

From what I understand (based on the docs and tf-a source code in particular VAB part) the flow is the following:

  • SDM verfies fsbl signature and loads it
  • SDM releses HPS from reset
  • Fsbl loads next stages (BL31 BL33) each time communicating with SDM through mailbox asking SDM to verify the image signaturure

Then we can be sure that we only use legitimate binaries. Am I right?

I have found in the agilex 5 product table that some variants are equipped with Cryptographic services and some not.

Are these Cryptographic services needed to perform the above flow?

If the variant I have is not equipped with such IP is there any other way to securely boot all boot chain up to Linux?

Arm Processor
embedded peripheral
Hps Arch
Hps Boot

22 Replies

  • SueC_Altera's avatar
    SueC_Altera
    Icon for Contributor rankContributor
    2 months ago

    Yes - we have Black Key Provisioning available. All of the security documentation is available on RDC if you have an NDA with Altera.

    Sue

  • tehjingy_Altera's avatar
    tehjingy_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 months ago

    Hi rdrr



    The SDM handles the secure boot chain and authenticate the FSBL,BL31and BL33.

    The Cryptographic service is not needed for the  secure boot, it mainly support added feature such as Key mangement, SHA2/3 hashing functions and others.





    • rdrr's avatar
      rdrr
      Icon for Occasional Contributor rankOccasional Contributor
      2 months ago

      Thanks.

      So to sum, the secure boot looks roughly as follows:

      • SDM verifies FSBL
      • FSBL laods BL31 and verifies its signature using  VAB AUTHENTICATION (implemented in TF-A), that uses mailobx to communicate with SDM
      • FSBL loads BL33 and verifies its signature using  VAB AUTHENTICATION (implemented in TF-A), that uses mailobx to communicate with SDM

      All the above is possible WITHOUT Cryptographic services, am I right?

      Assuming all the above - there is one more thing. On other platforms like NXP Layerscape, the SoC features CAAM (Cryptographic Acceleration and Assurance Module). On of the functionality of this is that it allows to deploy and use so called black keys and black blobs. In a nutshell - black keys and black blobs are keys and data encrypted with the SoC’s hardware-fused root key, so they can be stored or transmitted only in encrypted form and can be decrypted exclusively inside the secure hardware module (e.g., CAAM).

      We use such functionality on our NXP based board to encrypt and decrypt kernel image as well as keys used to setup dm-crypt (enc/dec rootfs).

      Is something like this available on Agilex 5? If so - on variant with or without Cryptographic services?

      • tehjingy_Altera's avatar
        tehjingy_Altera
        Icon for Regular Contributor rankRegular Contributor
        1 month ago

        Dear Customer,



        Since no further clarification is needed on this thread, it will be transitioned to community support for further help on doubts in this thread.

        Please login to the Altera Community Forum and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

        Thank you for the questions and as always pleasure having you here.



        Best Wishes

        tehjingy

  • SueC_Altera's avatar
    SueC_Altera
    Icon for Contributor rankContributor
    2 months ago

    Hi rdrr,

    Your replies disappeared - I don't know why.  I will alert the forum team.  But I got the emails.

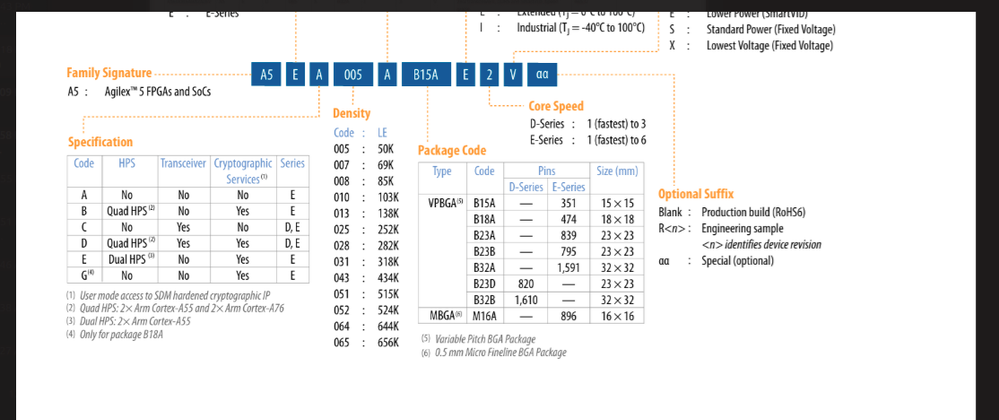

    I'm so sorry you are confused! The part number decoder shows this, in part:
