Trouble programming 10M02 with .pof

I was wondering if someone could help me with an issue I'm having when trying to program my 10M02DCV36 FPGA. When I program the chip with the .sof file everything is fine. However, when I try and program with the .pof file the process starts and then fails at ~5%.

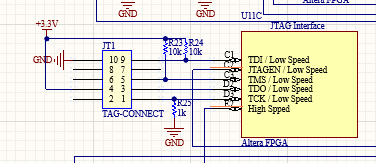

Below are my JTAG connections

Any help would be much appreciated!

7 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    How did you generate the .pof? Did you convert it from the .sof? Is the flash in that device large enough for the .pof you've created?

  • ShaneRock's avatar
    ShaneRock
    Icon for New Contributor rankNew Contributor
    3 years ago

    The .pof is auto generated. I also tried generating it manually using the File>Convert Programming Files, but neither method worked. The .pof file is 83KB.

    • ShaneRock's avatar
      ShaneRock
      Icon for New Contributor rankNew Contributor
      3 years ago
      So I was able to get this to work. I'm still not sure exactly why this made it work but, I was probing the JTAG lines and when I had the probe on the TCK line it programmed just fine
  • Farabi's avatar
    Farabi
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hello,


    Could you please share the scope shot of the JTAG signals?


    regards,

    Farabi


  • ShaneRock's avatar
    ShaneRock
    Icon for New Contributor rankNew Contributor
    3 years ago

    Is there something specific you are looking for, like the beginning of the process or the end, it is quite lengthy in terms of scope traces so if I show all of it, I'm afraid you won't really see anything relevant. I also only have easy access to the TCK, TMS, and TDI signals.

  • FakhrulA_altera's avatar
    FakhrulA_altera
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi ShaneRock,


    As we have not heard from you for a while, this Case is idling. It is not recommended to idle for too long. Therefore, following our support policy, I have to put this case in close status. My apologies if any inconvenience caused. Hence, This thread will be transitioned to community support.


    If you have a new question, feel free to open a new thread to get support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you


    Regards,

    Fakhrul
