Occasional Contributor1.How to simulate Atx pll and native Phy and reset controller in modelsim(arria 10 10GBPS)?

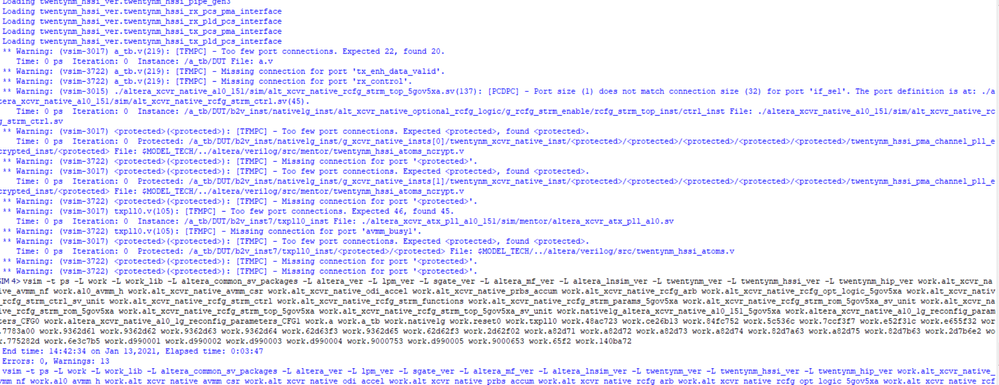

2.while simulating Atx pll and native phy IP, tool is showing supported files Protected, then How to simulate that protected files?
still I am getting the same error even after updating the modelsim tool
Thank you
Regular ContributorHi,
As I understand it, you have some inquiries related to simulating a design with ATX PLL and Native PHY. For your information, I have attached a simple simulation example previous from wiki for your reference. This design consist of ATX PLL + Native PHY.
To run the simulation, do the following:
1. Unzip and change Modelsim working directory to the folder
2. Type "source simulation_setup.tcl"
3. Type "ld" to compile the required files
4. Type "simulate" to populate the waveforms and run the simulation
This example is intended for dynamic reconfiguration. You may ignore the dynamic reconfiguration steps in test bench and focus on how to setup and simulate with Native PHY.
Please let me know if there is any concern. Thank you.
Best regards,
Chee Pin
Occasional Contributor

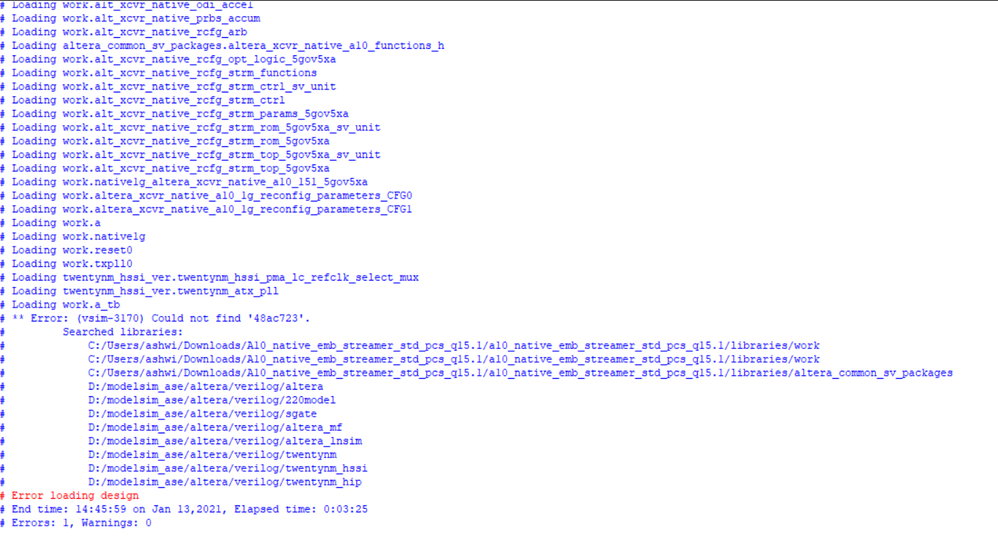

please check this SNAP SHOT, this obesrvation captured from example project. same issue i am facing in my project
Regular ContributorHi,
As I understand it, this simulation example was created for Q15.1. Just to check what is your Quartus version?
Thank you.
Regular ContributorHi,
As I understand it, it has been some time since I last heard from you. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
Occasional Contributorstill I am getting the same error even after updating the modelsim tool
Thank you
