Setup time violation on HBMC clock Domain

Hi

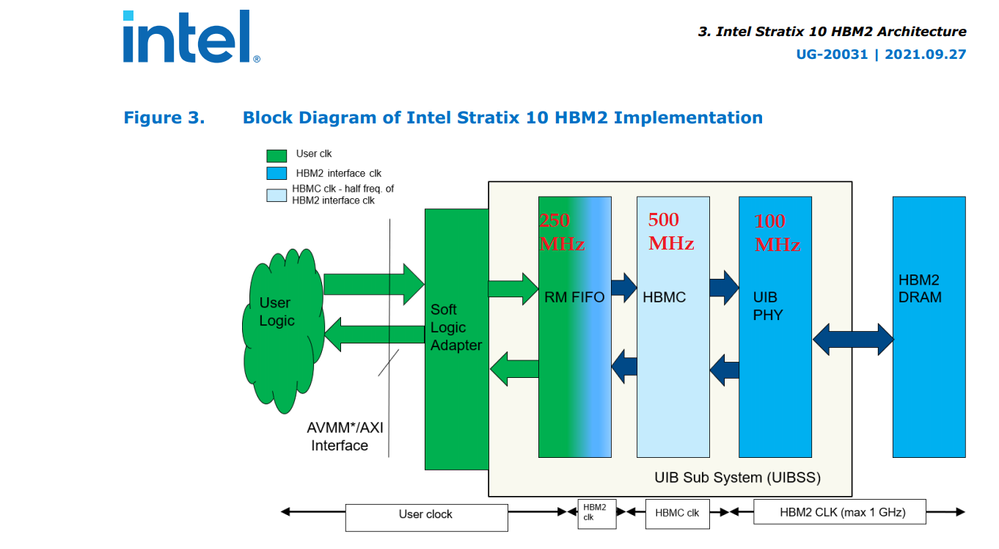

I am getting Setup Time violations on HBMC clock Domain (500MHz) due to Long Routing paths.

Type : Setup 'hbm_top_inst|iopll_t|iopll_t_outclk0'
Slack : -1.109
TNS : -863.275
Corner: Slow 900mV 100C Model

Type : Setup 'hbm_bottom_inst|iopll_b|iopll_b_outclk0'
Slack : -1.021
TNS : -1141.048
Corner: 1 Slow vid1 100C Model

Could you please suggest a fix for this issue?

Regards

Siva Kona

3 Replies

  • SivaKona's avatar
    SivaKona
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    Hi Richard Tan,

    Thanks for your reply!

    Setup Time Violation is in Intel IP (Quartus generated HBM IP)

    My idsid is snkona, Could you please share your idsid on Teams IM, so that I can share my VNC and the Build reports.

    Regards

    Siva Kona

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi Siva,

    Following our discussion offline, problem has been root caused: HBMC IP & Quartus tool version mismatch

    I’m glad that your problem has been solved. I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.

    Regards,
    Nurina

    P/S: If you like my comment, feel free to give Kudos. If my comment solved your problem, feel free to accept my comment as solution!
