Quartus/Platform designer instantiate my custom IP HDL as a new_component_cmp and results in error

Hi,

Each time I build my Quartus project that contains a .qsys with my custom IP used, it results in a syntax error where instead of using my custom entity name it uses new_component_cmp for the HDL generated by my system design (platform design). So, each time I have to replace/correct it manually and then it passes the syntesis.

Is there a ways around this silly issue?

Example: in auto-generated file soc_system_avalon_custom_leds_0.vhd this line is wrong:

avalon_custom_leds_0 : component new_component_cmp

The correct one should be:

avalon_custom_leds_0 : component avalon_custom_leds

Thank you in advance

Khalid.

Platform
  • Khalidov's avatar
    Khalidov
    2 years ago

    Yes, the issue seems to be in the _hw.tcl, this line:

    set_fileset_property QUARTUS_SYNTH TOP_LEVEL new_component.

    Solution:

    1- change it manually to use top entity name:

    set_fileset_property QUARTUS_SYNTH TOP_LEVEL avalon_custom_leds

    2- I noticed in the editor, if you click Analyze HDL bouton, it fixes it:

    Thank you for you help and time @ShengN_Intel

    Khalid

4 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,

    In the component editor, you probably have to change the Name and Display Name for custom ip. Check screenshot

    Thanks,

    Best Regards,

    Sheng

    • Khalidov's avatar
      Khalidov
      Icon for New Contributor rankNew Contributor
      2 years ago

      Hi Sheng,

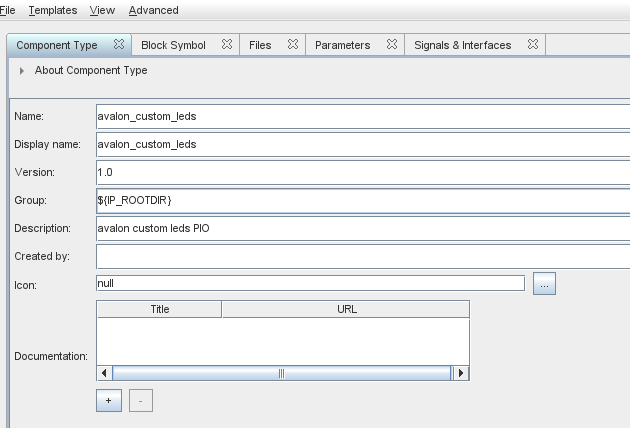

      I did change that while creating my custom IP the first time. Also, I just locked everywhere in the editor and all looks good. See my screenshot below:

      Thanks

      Khalid

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,


    Have you check does the _hw.tcl correct? If not may be can modify that.


    • Khalidov's avatar
      Khalidov
      Icon for New Contributor rankNew Contributor
      2 years ago

      Yes, the issue seems to be in the _hw.tcl, this line:

      set_fileset_property QUARTUS_SYNTH TOP_LEVEL new_component.

      Solution:

      1- change it manually to use top entity name:

      set_fileset_property QUARTUS_SYNTH TOP_LEVEL avalon_custom_leds

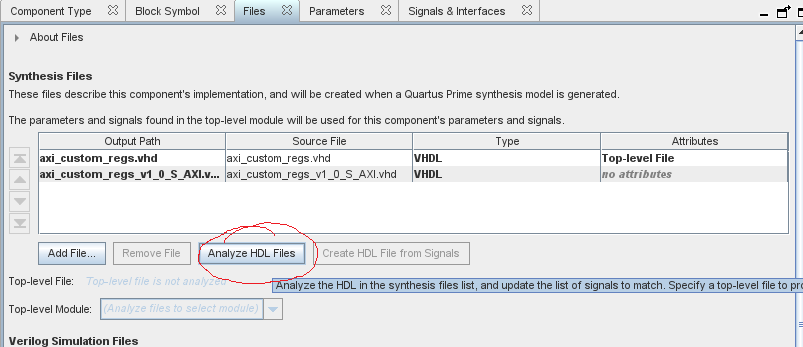

      2- I noticed in the editor, if you click Analyze HDL bouton, it fixes it:

      Thank you for you help and time @ShengN_Intel

      Khalid
