Quartus 20.1 - tri state output bad generated code

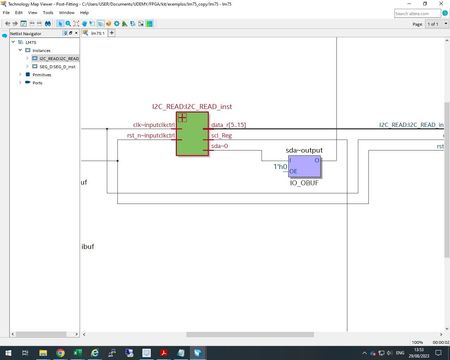

Hi, I'm new in FPGA world. To learn a bit more fast, I bought one kit with Cyclone IV E EP4CE6E22C8. I've found some software examples for that kit, but the programming language is Verilog. A...
Hdl
  • sstrell's avatar
    sstrell
    2 years ago

    The extra signal in there does not synthesize to a tri-state I/O correctly. It depends on the device architecture, but assigning the Z directly like you do in the second example is required for Quartus to interpret it correctly, setting sda_link, in this case, as the OE.

sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
2 years ago

The extra signal in there does not synthesize to a tri-state I/O correctly. It depends on the device architecture, but assigning the Z directly like you do in the second example is required for Quartus to interpret it correctly, setting sda_link, in this case, as the OE.

lusant's avatar
lusant
Icon for New Contributor rankNew Contributor
2 years ago

Thanks for the clarification @sstrell .

I know there is a lot to learn in this stuff, but I was expecting less tricky things.
