PFL configuration Arria ii GX

Hello
I m Newbie

I am trying to configure EP2AGX Arria® II GX using EPM240 Max ii CPLD and on board CFI Flash js28f256m29ewh using PFL IP.

In my case our custom Board flash Address bus 24bit bus and Data 8bit Bus from FPGA conected as per PFL requirement

but in case of CPLD only connected with 24bit Addresses to Flash and Data bus is not contected between CPLD and CFI Flash

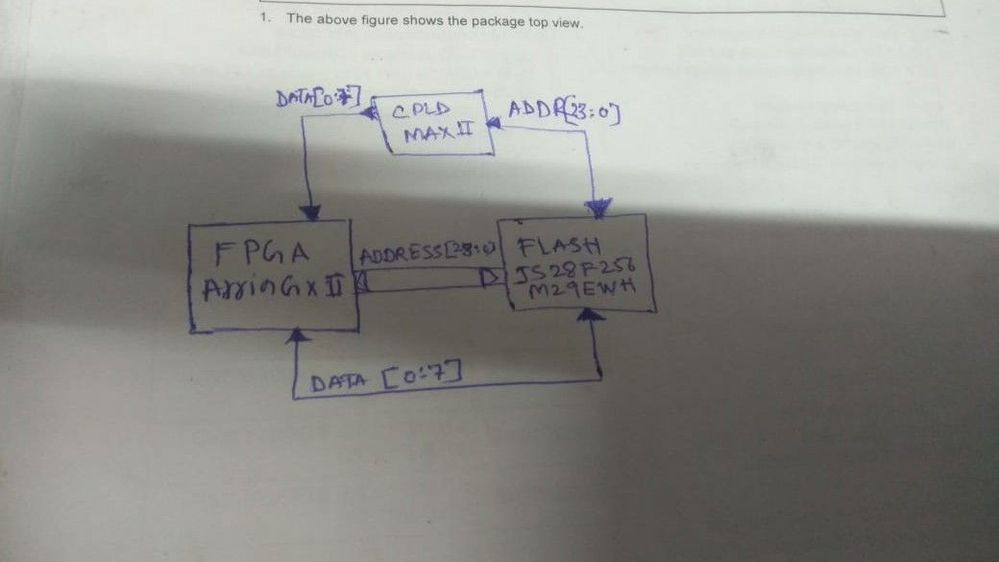

below picture as shown

my question is
1.how configure PFL for CFI flash program from CPLD ?

2.can i program by using PFL from FPGA ?

What will the best option for me please help us.

Nome
Thanks

6 Replies

    • nome's avatar
      nome
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago

      Hi

      Sir

      Thanks for your reply

      In my case I wrote my above post our custom board doesn't have directly CPLD to CFI data port there

      thats why I am confused how to define PFL_flash_data [0] to PFL_flash_data[7] in PFL? CFI flash D15 also connected with CPLD.

      PFL_flash_addr[0] to PFL_flash_addr[24] CPLD to CFI connected there

      all require another pin connected between CPLD and CFI Flash like nce,we,oe etc

      Thanks

      Nome

      • nome's avatar
        nome
        Icon for Occasional Contributor rankOccasional Contributor
        5 years ago
        Hello
        i have found 10 more pins between cpld and fpga
        i am totally confused
        how configure PFL

        as in ug_pfl. pdf i couldn't find out how configure if we don't have data bus between cfi and cpld
        please help me

        thank
        nome
  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    Hi Nome,


    No connection is needed between Arria II and flash, this is because it will be control by PFL and CPLD(Max 10) to load in Arria II.


    Regards,

    Aiman



    • nome's avatar
      nome
      Icon for Occasional Contributor rankOccasional Contributor
      5 years ago
      Hello
      Thanks for your reply
      sir i am not talking about connection between Arria fpga and flash.
      I am talking about data bus between cpld max II and flash
      if we doesn't have physically data bus between Max II and flash how pfl will work?
      Thanks
      nome
  • nome's avatar
    nome
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    Hello

    I m new in parallel Flashing

    I want to know Regarding NIOS processor Flashing How to make Boot by using PFL?

    what will Roll of CPLD?

    How to Flashing Boot Area after it will able to using NIOS Flashing

    I am totally confused

    Our hardware is Arria II GX and and CPLD MAX II js28f256m29ewh Flash

    Thanks

    Nome
