Integration with DSP Builder

Question

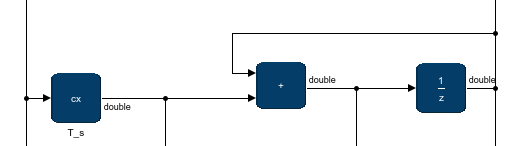

Hello,I am building a PI-controller for an FPGA with the Intel DSP Builder Advanced Blockset. Therefore, I use the forward/backward Euler approach.I have not enough insights yet in the different clock frequencies and sampling times. What value is used for the sampling time T_s?I suppose it is not the Clock Frequency in the FPGA. What is it else?Is there any other possibility to implement an integrator with DSP Builder Blocksets?Thank you for your support

fvm · Answer

Hello,T_s isn't a sampling time, it's a factor. Because the integrator input value is added to the integrator once per clock cycle, the factor is scaled with clock frequency.

seb_ · Answer

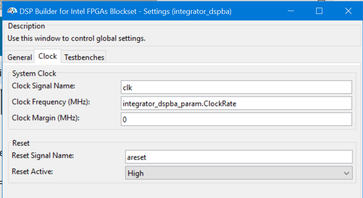

Thank you. Yeah I understand that T_s is a factor. But is in my example T_s=1/integrator_dspa_param.ClockRate*1e-6? (1e-6 because the clockrate is in MHz)

I am confused because during simulation, it sometimes depends on the simulink step size

fvm · Answer

Hello,hardware-wise, time discrete integrator has clearly defined behaviour. 1/z is a single clock cycle delay, e.g. 1 us with 1 MHz clock. Question is if it's correctly modelled in your simulation? I would expect a fixed time step.RegardsFrank

kshitij_intel · Answer

Hi,Can you please explore the example design available for PI Controller. Sharing the link below. Yes, PI controller can be designed using dsp builder.https://www.intel.com/content/www/us/en/docs/programmable/683337/23-1/position-speed-and-current-control-for-97844.htmlhttps://www.intel.com/content/www/us/en/docs/programmable/683466/current/tuning-the-pi-controller-gains.htmlThank youKshitij Goel

kshitij_intel · Answer

Hi,As we do not receive any response from you on the previous answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.Thank youKshitij Goel
