If the logic of an Output pin in the design is set to LOW, and the pin is set to Assignment Editor/Weak Pull-Up Resistor = On in QuartusII, what happens to the I/O pin?

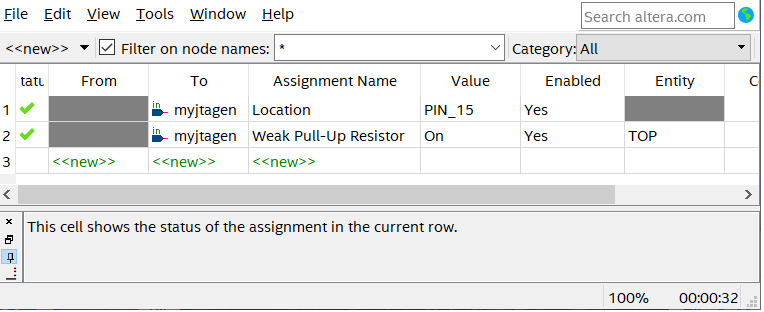

Please refer to the attached file.

1 Reply

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Output pin in the design is set to LOW, and the pin is set to Assignment Editor/Weak Pull-Up Resistor

    >>output is logic Logic LOW.

    Output pin in the design is set to HIGH, and the pin is set to Assignment Editor/Weak Pull-Up Resistor

    >>output is logic Logic HIGH

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    regards

    Anand.
