How to properly connect signals in schematic project for QUARTUS II

Question

Hi,

I'm forced to use schematic approach for a project (instead of VHDL). My problem is the following: I have two buses, for istance BUS_A[3..0] and BUS_B[2..0], I would like to connect BUS_A[3] signal with BUS_B[2] signal. How can I realize such an assignment?

Thanks everybody

vicky1 · Answer

Hi,

In this case, bus need to be split like (BUS_A[3..1],BUS_A[0]) or (BUS_A[3],BUS_A[2],BUS_A[1],BUS_A[0])

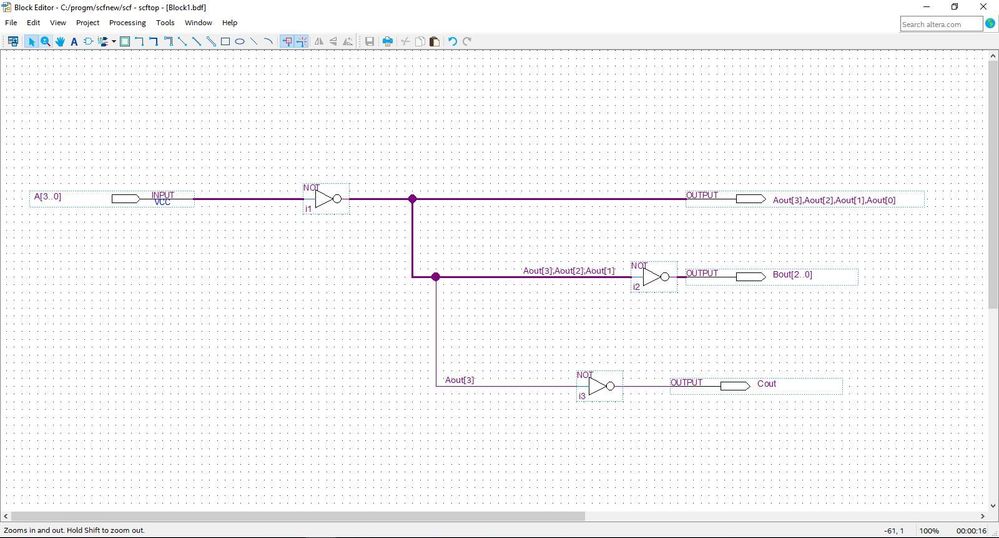

Refer the below old thread & screenshot for your reference,

https://forums.intel.com/s/question/0D50P00003yyG8bSAE/how-to-extract-1bit-from-a-bus-in-a-block-diagramschematic-file

please provide screenshot of your bdf file for better support.

Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

Best Regards

Vikas Jathar

(This message was posted on behalf of Intel Corporation)
