How to not display individual signals on a memory bus in the RTL Viewer?

Hi,

Do you mean to group from the first screenshot to the second screenshot? You may click on the '-' sign on the top left of the block.

Thanks.

Best regards,

KhaiY

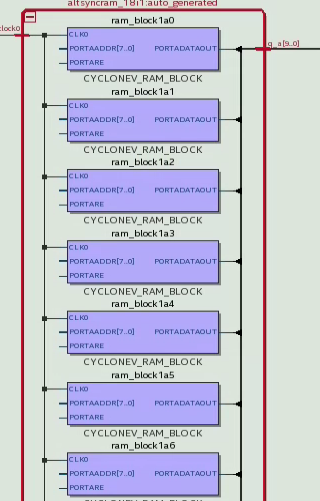

I am talking situations where the block is collapsed like your second screenshot, but the bus interface is expanded to show every signal. For example, all signals in the q_a bus are expanded and shown, which is unnecessary. Please see the attached image. All signals are on the same bus, but I want the bus to show up as a single bus line, instead of showing all signals, such as [14] through [22] in the attached screenshot.

Hi,

The signals on a bus are normally grouped together in the RTL viewer. May I see the destination of these signals?

Thanks.

Best regards,

KhaiY

Hi,

Do you have any updates?

Thanks.

Best regards,

KhaiY
