How can I use altera_avalon_sc_fifo in a VHDL simulation?

I use altera_avalon_sc_fifo (Avalon_ST Single Clock FIFO) in qsys. When I generate HDL I select VHDL for simulation I get <qsys_name>/altera_avalon_sc_fifo_161/sim/altera_avalon_sc_fifo.v and <qsys_name>/<subsystem_name>/sim/<qsys_name><subsystem_name>_<gibberish>_sc_fifo_<instance_name>.vhd.

altera_avalon_sc_fifo.v compiles in Modelsim, but the vhd file does not.

If I comment out these lines it compiles.

	for sc_fifo_n0 : altera_avalon_sc_fifo
		use entity jesd204b_ed_qsys_altera_avalon_sc_fifo_161.altera_avalon_sc_fifo;

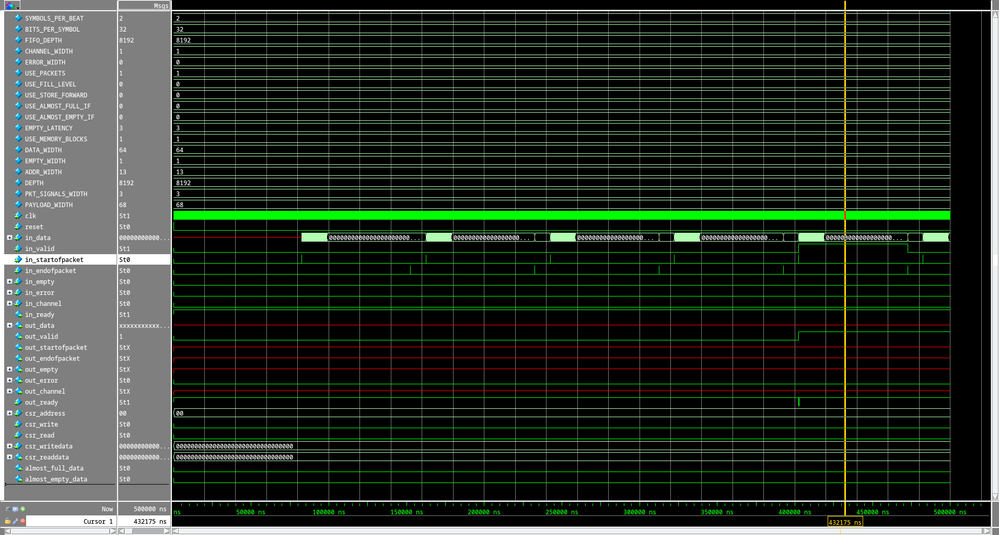

Now I can instantiate the fifo in my testbench and compile the testbench. In modelsim I can see the sc_fifo componet under the sim tab as an instance of the design unit altera_avalon_sc_fifo. I can look into the hierarchy of the instance and I see the Verilog parameters as I expect them to be, I see the nets and registers. However the instance does nothing. I see a valid packet coming in but nothing going out, except for valid. The same FIFO works in hardware.

1 Reply

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,

    If possible can you share the project ?

    Issue may be due to bench.

    Best Regards,

    Anand Raj Shankar

    (This message was posted on behalf of Intel Corporation)
