Help Moore | Moove

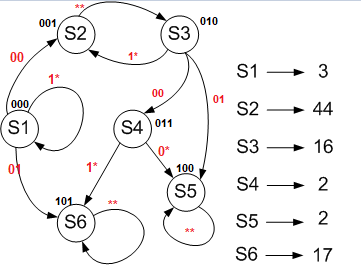

Are you asking about the basics of how to write a state machine in an HDL (like Verilog or VHDL)? Or do you not understand the diagram? For the former, Google is your friend. For the latter, each state is represented by 3 bits (S1 is 000, for example). The red numbers seem to represent a 2 bit input indicating when to move to the destination state, with * being a wildcard. And the list on the right represents what the output should be in each state. It's not clear how many bits are used to represent the output because there is no indication if those output bits are decimal or possibly hex (most likely decimal but you never know).

Hi,

Does above comment help?

Regards,

Nurina

Hello,

We do not receive any response from you on the previous reply provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

p/s: If any answer from community or Intel support are helpful, please feel free to mark as solution, give Kudos and rate 4/5 survey

Regards,

Nurina
