New Contributorerror in .VWF if using IP
Hi below is my code, it simulated perfectly but when i want to check the outputs using the .VWF file i am getting the following errors which are listed at the bottom. i am using Altera Stratix® V GX FPGA (5SGXEA7N2F45C2) and quartus 16.1 version
code:
module data_transfer(
input clk,
output [0:0] tx_serial_data
);
reg [79:0] tx_pma_parallel_data = 80'h2451BE17A3;
reg reset = 0;
wire [139:0] reconfig_to_xcvr;
wire [91:0] reconfig_from_xcvr;
wire reconfig_busy;
wire [31:0] reconfig_mgmt_readdata;
wire reconfig_mgmt_waitrequest;
wire clkout;
wire pll_powerdown;
wire tx_analogreset;
wire tx_digitalreset;
wire tx_ready;
wire tx_cal_busy;
/*trans_rec tx_transrec (
.pll_powerdown(pll_powerdown), // low
.tx_analogreset(tx_analogreset), // off and add Transceiver PHY Reset Controller
.tx_digitalreset(tx_digitalreset), // off and add Transceiver PHY Reset Controller
.tx_pll_refclk(clk), // refclk
.tx_pma_clkout(clkout), // clkout
.tx_serial_data(tx_serial_data), // data
.tx_pma_parallel_data(tx_pma_parallel_data), // tx_pma_parallel_data.tx_pma_parallel_data
.pll_locked(), // low
.tx_cal_busy(tx_cal_busy), // out_busy
.reconfig_to_xcvr(reconfig_to_xcvr), // reconfig_to_xcvr.reconfig_to_xcvr
.reconfig_from_xcvr(reconfig_from_xcvr) // reconfig_from_xcvr.reconfig_from_xcvr
);*/
trans_reconfig recofig (
.reconfig_busy(), // reconfig_busy.reconfig_busy
. mgmt_clk_clk(clk), // mgmt_clk_clk.clk
.mgmt_rst_reset(), // low
.reconfig_mgmt_address(), // reconfig_mgmt.address
.reconfig_mgmt_read(), // .read
.reconfig_mgmt_readdata(), // .readdata
.reconfig_mgmt_waitrequest(), // .waitrequest
.reconfig_mgmt_write(), // .write
.reconfig_mgmt_writedata(reconfig_mgmt_writedata), // .writedata
.reconfig_to_xcvr(reconfig_to_xcvr), // reconfig_to_xcvr.reconfig_to_xcvr
.reconfig_from_xcvr(reconfig_from_xcvr) // reconfig_from_xcvr.reconfig_from_xcvr
);
reset_cont reset_controller (
.clock(clk), // clock.clk
.reset(reset), // reset.reset
.pll_powerdown(pll_powerdown), // pll_powerdown.pll_powerdown
.tx_analogreset(tx_analogreset), // tx_analogreset.tx_analogreset
.tx_digitalreset(tx_digitalreset), // tx_digitalreset.tx_digitalreset
.tx_ready(tx_ready), // tx_ready.tx_ready
.pll_locked(), // pll_locked.pll_locked
.pll_select(), // pll_select.pll_select
.tx_cal_busy(tx_cal_busy), // tx_cal_busy.tx_cal_busy
.rx_analogreset(), // rx_analogreset.rx_analogreset
.rx_digitalreset(), // rx_digitalreset.rx_digitalreset
.rx_ready(), // rx_ready.rx_ready
.rx_is_lockedtodata(), // rx_is_lockedtodata.rx_is_lockedtodata
.rx_cal_busy() // rx_cal_busy.rx_cal_busy
);
endmodule

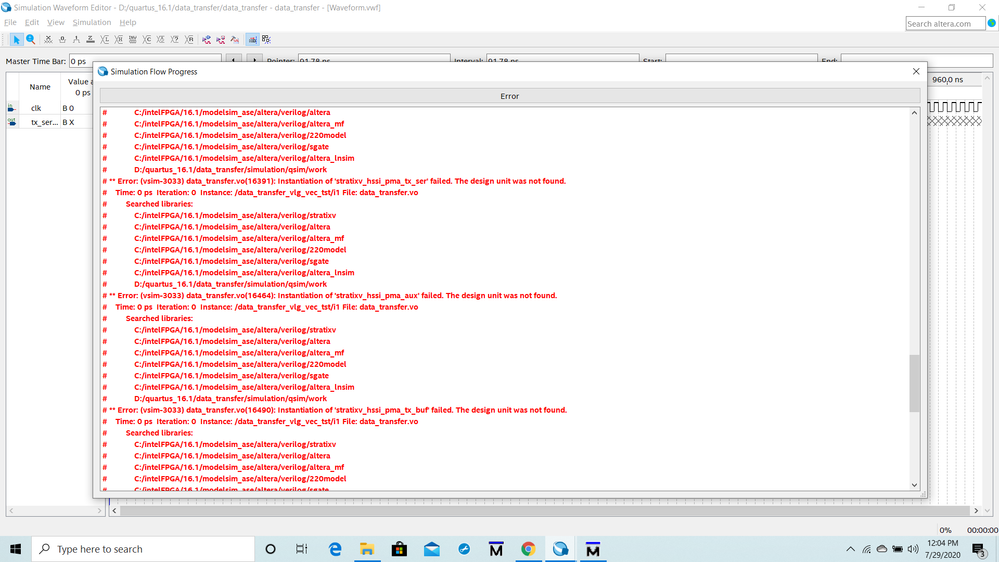

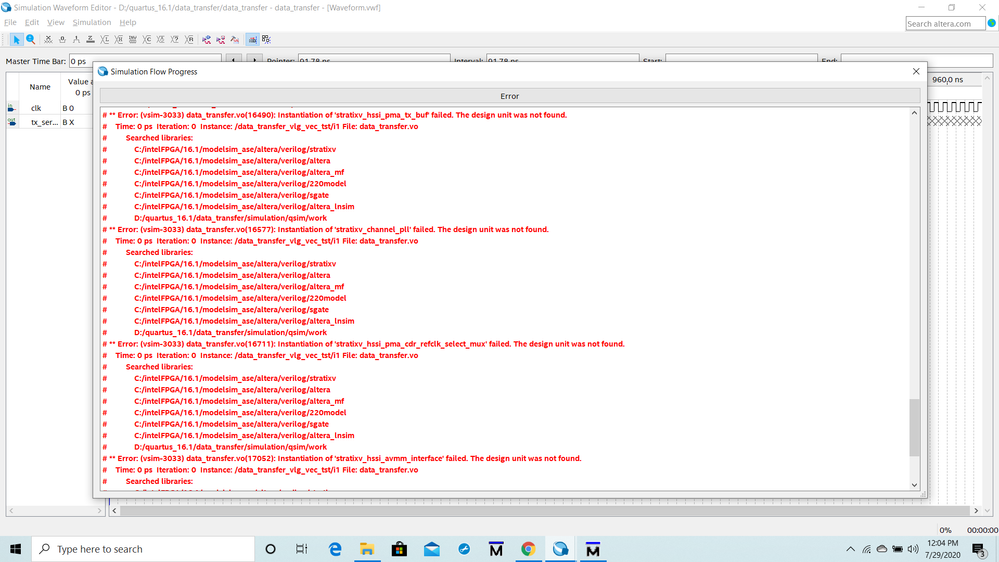

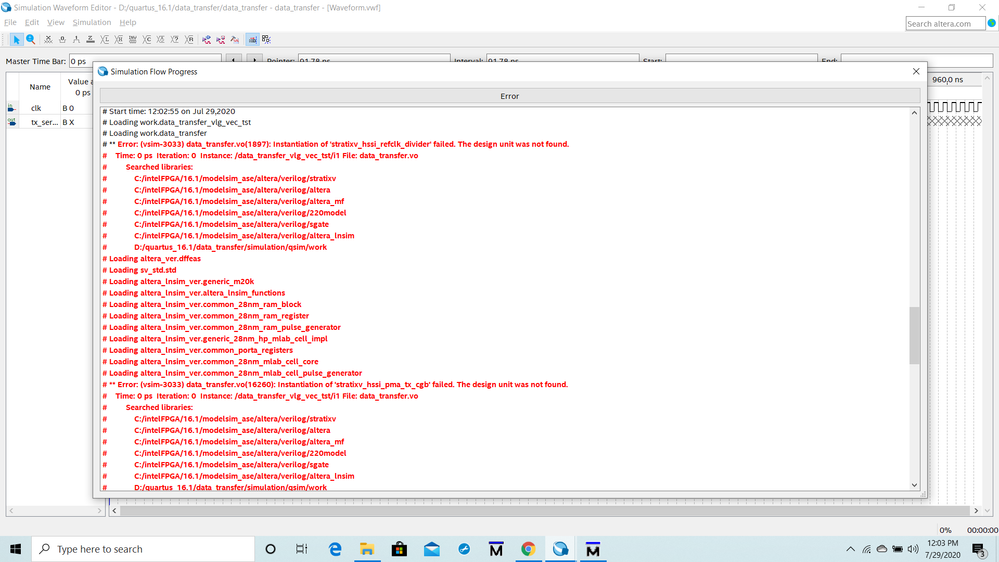

error:
Completed successfully.
**** Running the ModelSim simulation ****
C:/intelFPGA/16.1/modelsim_ase/win32aloem/vsim -c -do data_transfer.do
Reading C:/intelFPGA/16.1/modelsim_ase/tcl/vsim/pref.tcl
# 10.5b
# do data_transfer.do
# ** Warning: (vlib-34) Library already exists at "work".
# Model Technology ModelSim - Intel FPGA Edition vlog 10.5b Compiler 2016.10 Oct 5 2016
# Start time: 12:02:55 on Jul 29,2020
# vlog -work work data_transfer.vo
# -- Compiling module data_transfer
#
# Top level modules:
# data_transfer
# End time: 12:02:55 on Jul 29,2020, Elapsed time: 0:00:00
# Errors: 0, Warnings: 0
# Model Technology ModelSim - Intel FPGA Edition vlog 10.5b Compiler 2016.10 Oct 5 2016
# Start time: 12:02:55 on Jul 29,2020
# vlog -work work Waveform.vwf.vt
# -- Compiling module data_transfer_vlg_vec_tst
#
# Top level modules:
# data_transfer_vlg_vec_tst
# End time: 12:02:55 on Jul 29,2020, Elapsed time: 0:00:00
# Errors: 0, Warnings: 0
# vsim -novopt -c -t 1ps -L stratixv_ver -L altera_ver -L altera_mf_ver -L 220model_ver -L sgate_ver -L altera_lnsim_ver work.data_transfer_vlg_vec_tst
# Start time: 12:02:55 on Jul 29,2020
# Loading work.data_transfer_vlg_vec_tst
# Loading work.data_transfer
# ** Error: (vsim-3033) data_transfer.vo(1897): Instantiation of 'stratixv_hssi_refclk_divider' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# Loading altera_ver.dffeas
# Loading sv_std.std
# Loading altera_lnsim_ver.generic_m20k
# Loading altera_lnsim_ver.altera_lnsim_functions
# Loading altera_lnsim_ver.common_28nm_ram_block
# Loading altera_lnsim_ver.common_28nm_ram_register
# Loading altera_lnsim_ver.common_28nm_ram_pulse_generator
# Loading altera_lnsim_ver.generic_28nm_hp_mlab_cell_impl
# Loading altera_lnsim_ver.common_porta_registers
# Loading altera_lnsim_ver.common_28nm_mlab_cell_core
# Loading altera_lnsim_ver.common_28nm_mlab_cell_pulse_generator
# ** Error: (vsim-3033) data_transfer.vo(16260): Instantiation of 'stratixv_hssi_pma_tx_cgb' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(16391): Instantiation of 'stratixv_hssi_pma_tx_ser' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(16464): Instantiation of 'stratixv_hssi_pma_aux' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(16490): Instantiation of 'stratixv_hssi_pma_tx_buf' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(16577): Instantiation of 'stratixv_channel_pll' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(16711): Instantiation of 'stratixv_hssi_pma_cdr_refclk_select_mux' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# ** Error: (vsim-3033) data_transfer.vo(17052): Instantiation of 'stratixv_hssi_avmm_interface' failed. The design unit was not found.
# Time: 0 ps Iteration: 0 Instance: /data_transfer_vlg_vec_tst/i1 File: data_transfer.vo
# Searched libraries:
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/stratixv
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_mf
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/220model
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/sgate
# C:/intelFPGA/16.1/modelsim_ase/altera/verilog/altera_lnsim
# D:/quartus_16.1/data_transfer/simulation/qsim/work
# Error loading design
Error loading design
# End time: 12:02:56 on Jul 29,2020, Elapsed time: 0:00:01
# Errors: 8, Warnings: 0
Error.
