Forum Discussion

gazel's avatar
gazel
Icon for New Contributor rankNew Contributor
4 years ago

Error (171011): Can't assign node "led" to location PIN_AA24 -- node is type Combinational cell

I'm trying to implement a multiplication program using file I/O written in C++ on FPGA using intelhlscompiler.
I have completed the high-level synthesis and implemented it on 5CSXFC6D6F31C6, but the calculation results were not output to file, so I decided to turn on the led at the end of the verilog to test if the circuit is working.
When I tried to place the pins, I got the error Error (171011): Can't assign node "led" to location PIN_AA24 -- node is type Combinational cell.
How can I solve this problem?

Translated with www.DeepL.com/Translator (free version)

---------------------------------------------C++program------------------------------------------

#include "HLS/hls.h"
#include <stdio.h>

using namespace ihc;

component int calc(int a,int b){
return a*b;
}

int main(void)
{
FILE * fp=NULL;
int seisuu=0; // 数字1
int seisuu2=0; // 数字2
int ans=0;
fp = fopen("input.txt", "r");
if(fp == NULL) {
printf("ファイルを開くことが出来ませんでした.¥n");
}while (fscanf(fp, "%d,%d", &seisuu,&seisuu2) != EOF)
{
//printf("%d %d\n", seisuu,seisuu2);
printf("%d*%d=%d",seisuu,seisuu2,calc(seisuu,seisuu2));
}
ans = calc(seisuu,seisuu2);fp = fopen("output.txt", "w");
fprintf(fp,"%d",ans);

fclose(fp);

return 0;
}

----------------------------------------------------------------------------------------------------------

----------------------------------------HLS Generated files--------------------------------------------

module quartus_compile (
input logic resetn
, input logic clock
, input logic [0:0] calc_start
, output logic [0:0] calc_busy
, output logic [0:0] calc_done
, input logic [0:0] calc_stall
, output logic [31:0] calc_returndata
, input logic [31:0] calc_a
, input logic [31:0] calc_b
, output led
);

logic [0:0] calc_start_reg;
logic [0:0] calc_busy_reg;
logic [0:0] calc_done_reg;
logic [0:0] calc_stall_reg;
logic [31:0] calc_returndata_reg;
logic [31:0] calc_a_reg;
logic [31:0] calc_b_reg;


always @(posedge clock) begin
calc_start_reg <= calc_start;
calc_busy <= calc_busy_reg;
calc_done <= calc_done_reg;
calc_stall_reg <= calc_stall;
calc_returndata <= calc_returndata_reg;
calc_a_reg <= calc_a;
calc_b_reg <= calc_b;
end


reg [2:0] sync_resetn;
always @(posedge clock or negedge resetn) begin
if (!resetn) begin
sync_resetn <= 3'b0;
end else begin
sync_resetn <= {sync_resetn[1:0], 1'b1};
end
end


calc calc_inst (
.resetn(sync_resetn[2])
, .clock(clock)
, .start(calc_start_reg)
, .busy(calc_busy_reg)
, .done(calc_done_reg)
, .stall(calc_stall_reg)
, .returndata(calc_returndata_reg)
, .a(calc_a_reg)
, .b(calc_b_reg)


);

endmodule

-----------------------------------------------------------------------------------------------------------

7 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor

    I don't know much about HLS, but in your Verilog code, you create led as an output but don't connect it to anything.

    • gazel's avatar
      gazel
      Icon for New Contributor rankNew Contributor

      I see.
      How should I rewrite it?

      • sstrell's avatar
        sstrell
        Icon for Super Contributor rankSuper Contributor

        led <= ?

        You have to make an assignment to it, just like you make assignments to other signals in the code.

  • gazel's avatar
    gazel
    Icon for New Contributor rankNew Contributor

    Thank you for your kindness.
    led <= calc_returndata;
    and I was able to implement it.
    However, the LED did not light up and there was no file output.

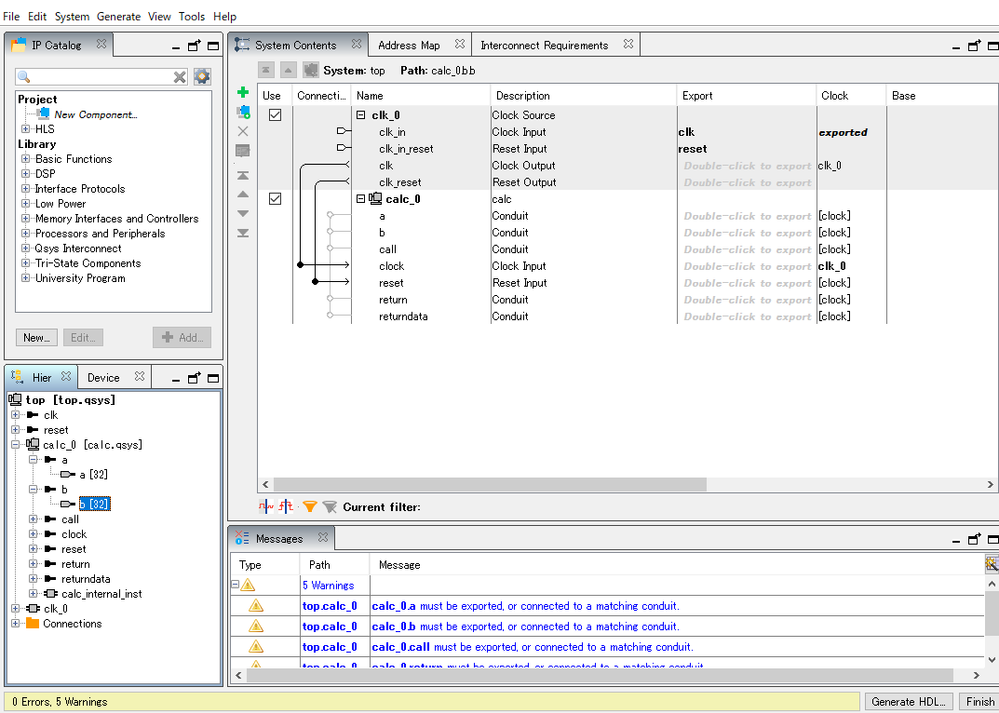

    If there is any concern, it is related to qsys. I have the following connection, is it correct?

    • sstrell's avatar
      sstrell
      Icon for Super Contributor rankSuper Contributor

      I am presuming that you want returndata in the Platform Designer system to appear on the LED. You need to export the returndata interface (double-click in the Export column and give it a name) and instantiate the system, connecting the exported interface (single signal interface, I presume) to the led output. You can see the instantiation template you'll need in the Generate menu in Platform Designer. You'd need to recompile the design of course.

      Again, I don't know how this fits into HLS, but for normal FPGA design, this is what would be required.

  • Hi @gazel,

    Thank you for posting in Intel community forum, hope this message find you well.
    Please do let us know if you are still facing the difficulties mention and we would get back to you as soon as possible.

    Best Wishes
    BB

  • Hi @gazel,

    Good day, as we do not receive any further clarification on what is provided, we would assume challenge are resolved. Hence thread will no longer monitor this thread. For new queries, please feel free to open a new thread and we will be right with you. Pleasure having you here.

    Best Wishes
    BB
