Development board outputs clock signal

Question

I have encountered some problems in the process of learning. I sincerely hope you can spare time to guide me.

Objective: To obtain 50MHz clock signal by using CycloneV (5CGTFD9E5F35) to output onboard crystal oscillator through phase-locked loop.
 Problems encountered at present: the phase-locked loop was called, pins were allocated and burned into the development board, but the crystal clock signal could not be obtained.
 General process:

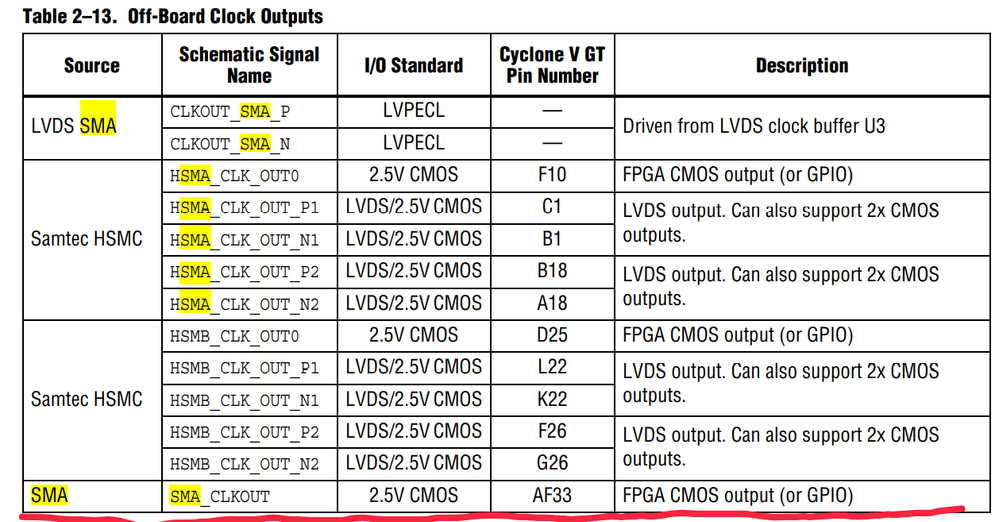

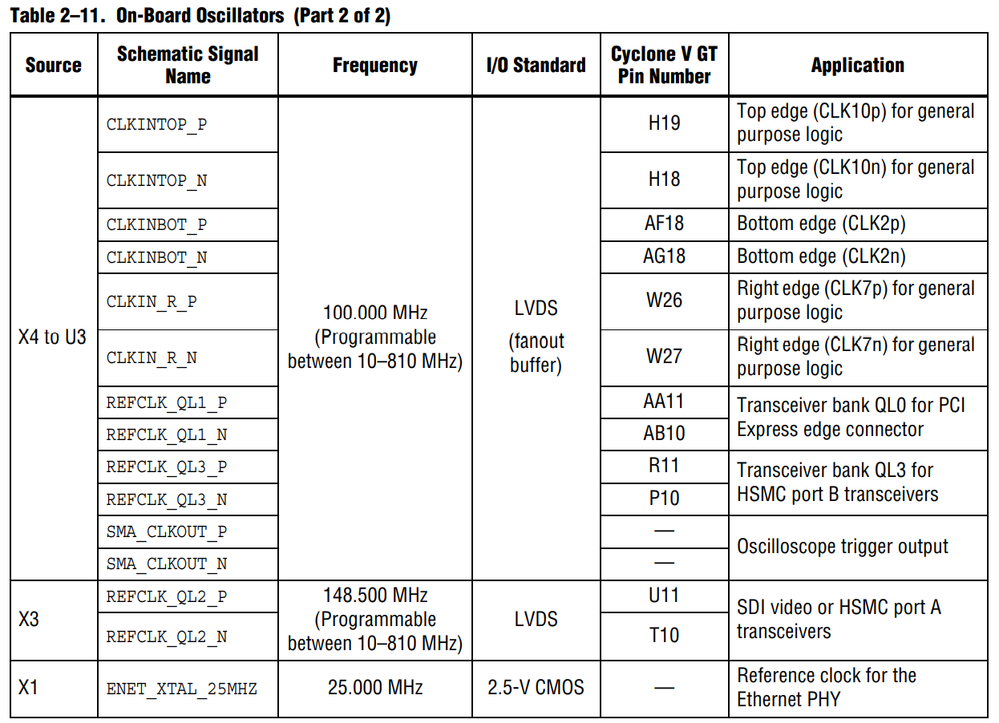

(1) Input pin information found in the manual:

(2) Output pin:

Output position of the corresponding development board:

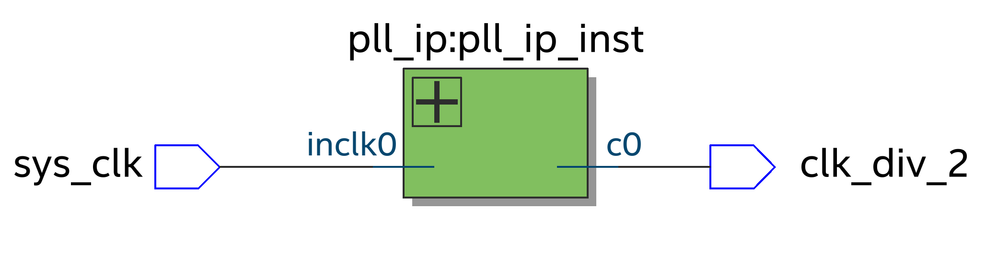

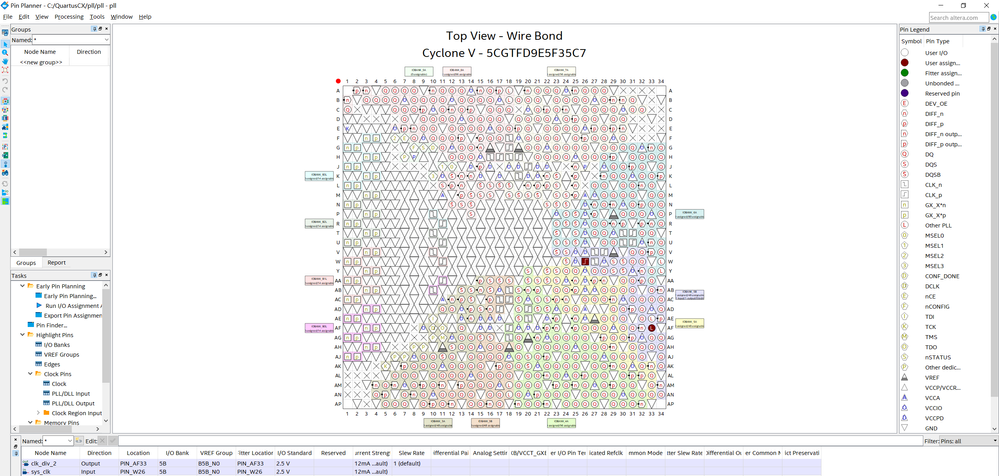

(3) RTL view and pin allocation

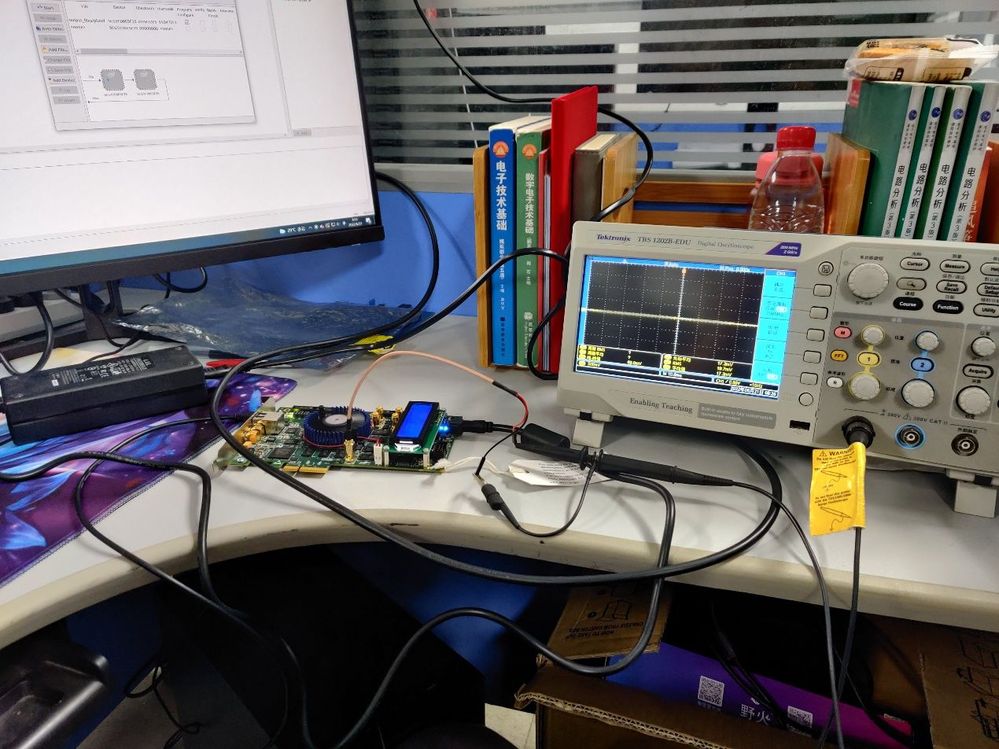

(4) After the program is burned into the development board, the output is connected to the oscilloscope, and the signal can not be obtained.

sstrell · Answer

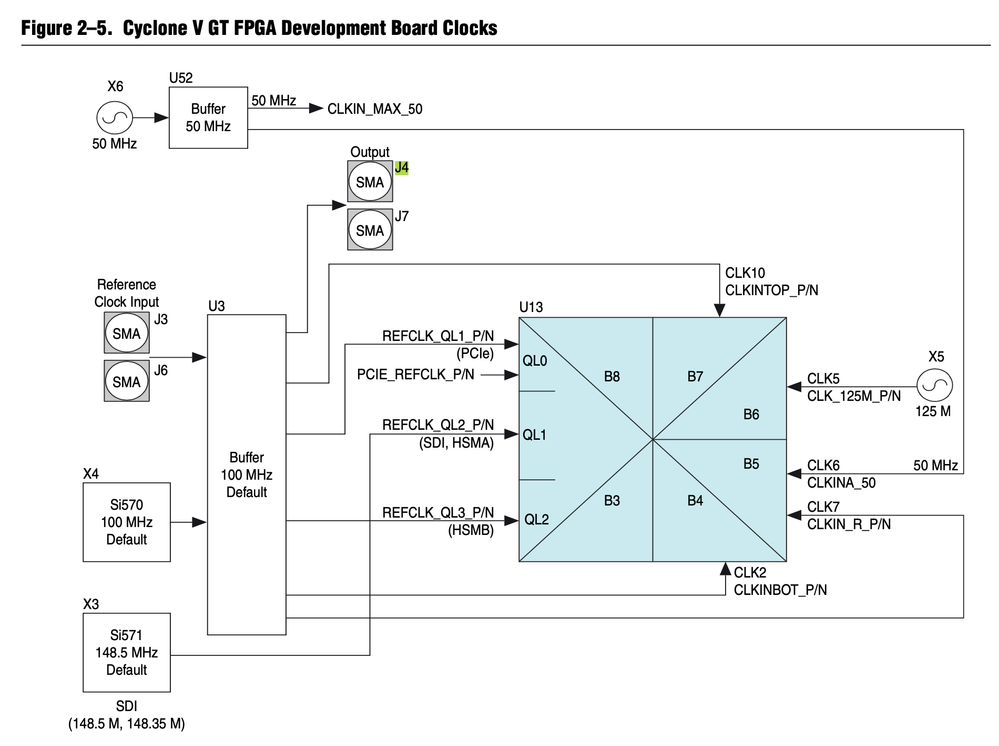

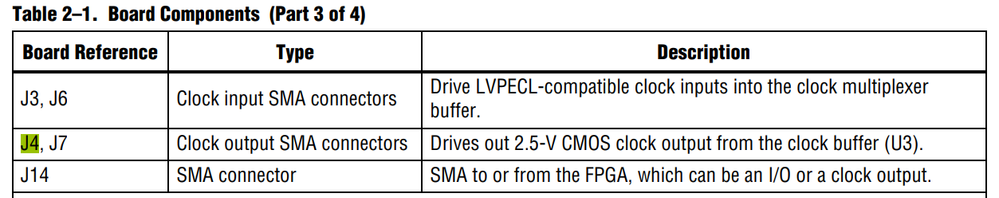

Assuming this is the board you are using (https://www.intel.com/content/www/us/en/products/details/fpga/development-kits/cyclone/v-gt.html), J4 connects to U3, not the FPGA.

fvm · Answer

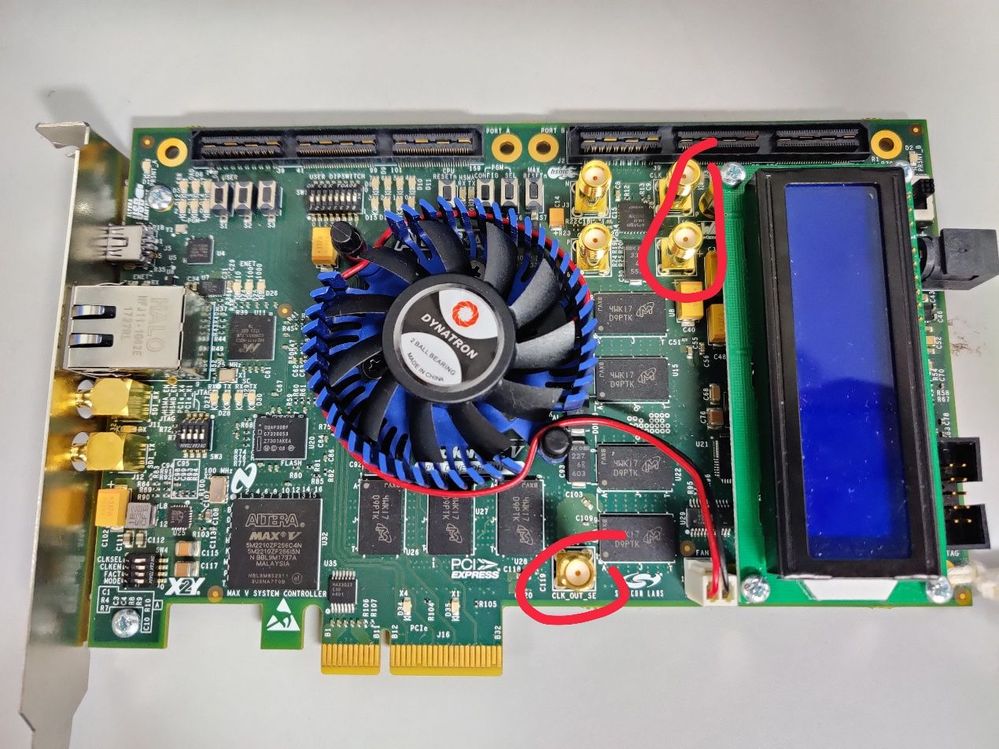

Helloaccording to the photo, the OP is connecting J14 (SMA_OUT) to the oscilloscope, it is in fact driven by FPGA pin AF33. Not sure why the configuration doesn't work.Frank

ash_r_intel · Answer

Hi,The input clock of 50MHz should be taken from V28 pin of FPGA and connect to sys_clk of your pll instance. IO standard should be 1.5V CMOS.Regards
