Cyclone 10GX design Simulation Error

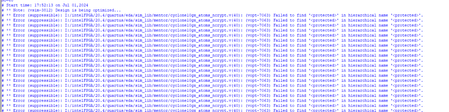

I have generated simulation library files from Quartus Prime Pro 2020.4 Tool. In my project I have remote update IP. When i try to run netlist simulation with Modelsim 2020.4 and QuestaSim 2021....
Simulation
Sumanth's avatar
Sumanth
Icon for Occasional Contributor rankOccasional Contributor
2 years ago


I am using the script generated by Quartus as reference.

I have resolved the issue now.

The issue is resolved after removing the below files during simulation library generation.

eval vlog $USER_DEFINED_VERILOG_COMPILE_OPTIONS $USER_DEFINED_COMPILE_OPTIONS "$QUARTUS_INSTALL_DIR/eda/sim_lib/mentor/cyclone10gx_atoms_ncrypt.v" -work cyclone10gx

eval vlog $USER_DEFINED_VERILOG_COMPILE_OPTIONS $USER_DEFINED_COMPILE_OPTIONS "$QUARTUS_INSTALL_DIR/eda/sim_lib/mentor/cyclone10gx_atoms_ncrypt.v" -work cyclone10gx_ver



Thanks for the support.
