Custom Library Unavailable in ModelSim after creating project

My custom library "cbgb" becomes unavailable in ModelSim as soon as I create a ModelSim project. This causes my project source code files to fail compilation because ModelSim cannot find the library I reference in the source code. All the files in the custom library compile w/o errors. The project compiles fine in Quartus and works in HW. The project compiles fine and simulates in another simulator. I start ModelSim from command line. Updating the library does nothing. Refreshing the library changes it from unavailable to empty.

modelsim_compile_errors_1.png shows the compilation errors

source_lib_declare_1.png shows the lines of code in question

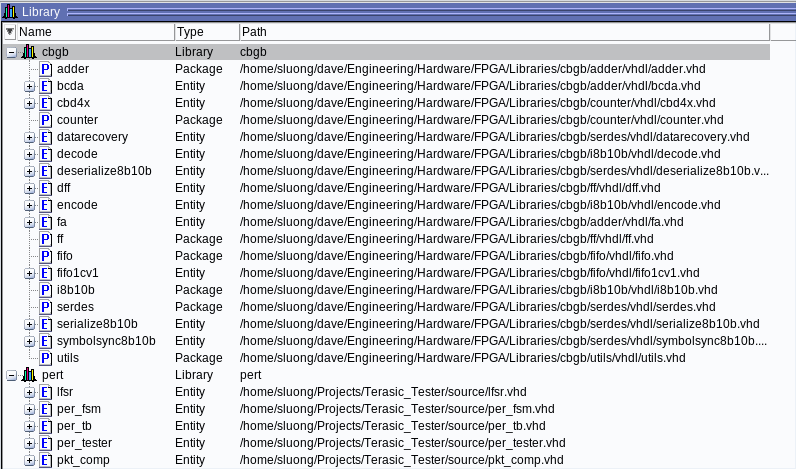

modelsim_libs_before_project_1.png shows the libraries before creating a project

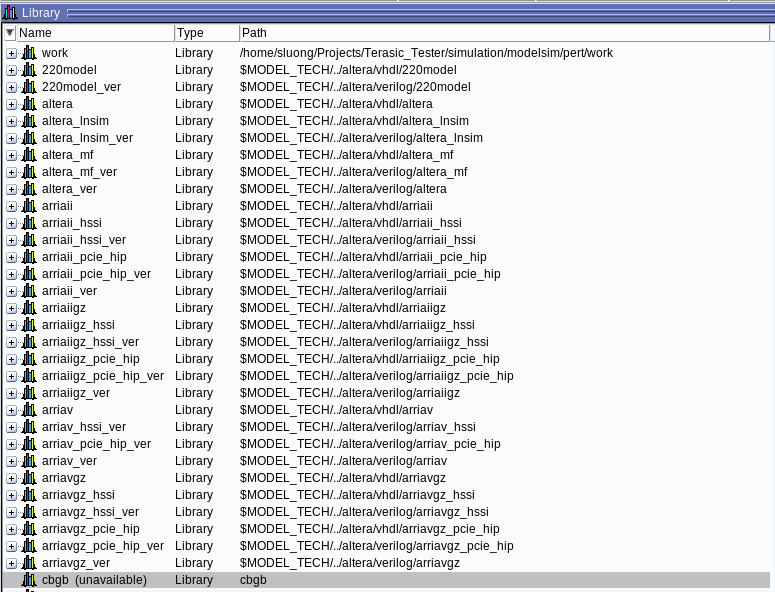

modelsim_libs_after_project_1.png shows the libraries after creating a project

ModelSim Intel FPGA Starter Edition 2020.1

Quartus Prime Version 20.1.0 Lite Edition

CentOS Stream release 8

Linux RedHat Enterprise kernel 5.9.2

  • shaunee's avatar
    shaunee
    5 years ago

    Thanks for your help, ShyanYewT_Intel. I got my ModelSim project to compile following your suggestions, though not exactly. The steps:

    1. Started ModelSim from command line from my Linux installation directory (../modelsim_ase/linuxaloem).

    2. Created new library "cbgb" and mapping to it.

    3. Compiled files into "cbgb" from personal repository directory (../libraries/cbgb/..). "cbgb" appears in Library window with all its compiled files.

    4. Created new project "pert" in personal project directory (../projects/../modelsim). Copied settings from (../modelsim_ase/linuxaloem/modelsim.ini) since there was no modelsim.ini in my project directory. This file is different from the read-only master modelsim.ini found in (../modelsim_ase). It got created sometime during the previous steps. "cbgb" library changes to empty "cbgb (unavailable)" in Library window.

    5. Added files to project directory (../project/../modelsim/pert).

    6. Edited "cbgb (unavailable)" library's Pathname to point to existing library (../modelsim_ase/linuxaloem/cbgb). "cbgb" library appears in Library window with all its compiled files.

    7. Compiled my project.

5 Replies

  • RichardT_altera's avatar
    RichardT_altera
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    I don't see any picture attached here.

    Since you are using Quartus lite edition, I would suggest that you use the Nativelink feature that automatically help to compile your design, Altera IP, simulation model libraries, and testbench.

    You may checkout the webpage below.

    https://www.intel.com/content/www/us/en/programmable/documentation/aym1499789502823.html

    If you would like to run without Nativelink, you could refer to the simulation flow here.

    https://www.intel.com/content/www/us/en/programmable/support/support-resources/design-examples/design-software/simulation/modelsim/simulation-manual-howto.html

    Hope it helps.

    • shaunee's avatar
      shaunee
      Icon for New Contributor rankNew Contributor
      5 years ago

      I did attach the 4 pictures to my original post, but they didn't show up. I couldn't find the Edit button for my original post either. So I'm attaching the pictures again, hoping they'll show up this time. If not, the ModelSim compilation errors are like:

      ../per_fsm.vhd : (vcom-1598) Library "cbgb" not found.

      ../per_fsm.vhd : (vcom-1136) Unknown identifier "cbgb".

      Here are the relevant lines of code from per_fsm.vhd:

      library ieee;
      use ieee.std_logic_1164.all;
      use ieee.numeric_std.all;
      library cbgb;
      use cbgb.i8b10b.all;
      use cbgb.utils.all;

      ModelSim cannot find my custom library "cbgb" since it appears as Unavailable as soon as I create a project. I had already successfully created the library "cbgb" and compiled all the files in it. The library and all its compiled files show up in the Library browser before I create a project, but then shows up as "cbgb (unavailable)" as soon as I create a project. I've followed the Intel and ModelSim simulation flows, tutorials, and examples, but they are not clear on how to work with multiple libraries. I need to use the "cbgb" library to compile the files inside my "work" library.

      • RichardT_altera's avatar
        RichardT_altera
        Icon for Super Contributor rankSuper Contributor
        5 years ago

        As you create a new project, when a window pop up, you will see a section calls "Copy Setting from".
        By default, the Modelsim will direct to the modelsim.ini from the installation directory.

        <install_dir>/modelsim_ae/modelsim.ini

        Try to change it by browsing to the modelsim.ini in your project directory. See if the cbgb library still available.

        If the above does not work, in your current project, you could try to add new library, mapping back to the existing cbgb library.

        I hope it helps.
