Miller,

In that case, you should use with the -entity option. This will implements an output enable register in an I/O cell with a fast, direct connection to an I/O pin more accurate according to the hierarchy.

May I know if there is any update?

My code includes the follow lines :

reg [9:0] cnt ='b0;
reg en ='b0;
always @(posedge clk10 )
begin
cnt = cnt + 1'b1 ;
if (cnt == 10'b1111111111 )
en = !en ;
end
assign A = en ? 1'bz : 1'b0 ;

In addition , my qsf file include the line :

set_instance_assignment -name FAST_OUTPUT_ENABLE_REGISTER ON -to *

this code should implement other drive each 1ms

1ms - high Z

1ms- '1b0

when I test I in the lab - the scope show steady 1'b0 ( I use pull up transistor to recognize 1'b0 / 1'bz )

Then - I found out warnings in the fit.plan.rpt

Warning (176225): Can't pack node en_Z~_Duplicate_1 to I/O pin File: /tmp/ymiller/Premier/snj_mrp_bt_1_2_RTL49_1_RST_fpga_22ww06_01_083417/rev_MX/par_1/premier_fpga_top.vqm Line: 840
Warning (176260): Can't pack node en_Z~_Duplicate_1 and I/O node en_RNO -- one node must be a logic cell and one must be an I/O cell File: /tmp/ymiller/Premier/snj_mrp_bt_1_2_RTL49_1_RST_fpga_22ww06_01_083417/rev_MX/par_1/premier_fpga_top.vqm Line: 840

Can you explain what is wrong in my simple code ? what should I change in the code in order to prevent from this warning

Mybe when I fix it - my high Z implemetation will work

Yishay

Yishay,

I am checking this internally and will back with some findings

Hi Yishay,

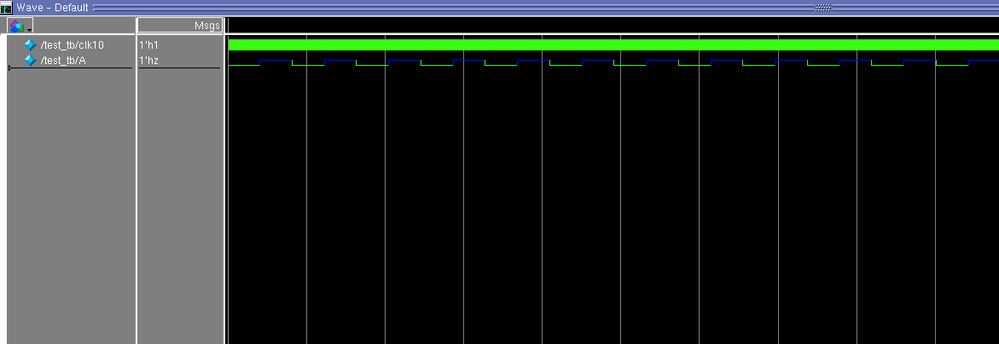

There is nothing wrong with your code and settings in .qsf file. The .qsf file is just a setting file generated by Quartus so nothing will affect simulation if you make changes to .qsf file because that file is internally generated by Quartus. I try to simulate your code with modelsim and your code seems to work fine.

Just you have to zoom out a bit because you got a big counter.

Thanks,

Best regards,
Sheng

Yishay,

The simulation seem to work fine but not in hardware. Do you have any timing violation? May need to check and fix that first before running or hardware.

Yishay,

There is KDB related to your issue with reason as link below. May see if applicable or not.

https://www.intel.com/content/www/us/en/support/programmable/articles/000081521.html

Yishay,

Let me know if there is any other concern on this.

Since there is no update regarding this, thus I will put this case to close pending. Please post a response in the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you with your follow-up questions.
