Clocking Block not working correctly?

Hello,

I am having a problem and want to make sure its not user error before chalking it up to a bug.

I am designing a testbench and checking the status of a set of signals that are contained in an interface using a class and accessed by a method in that class. That interface contains a clocking block that is used to access them.

My interface looks like this:

interface interface_name (
    input logic clk,
    input logic in0, in1, in2, in3;
);

default clocking cb @(posedge clk);
    input in0;
    input in1;
    input in2;
    input in3;
endclocking

endinterface

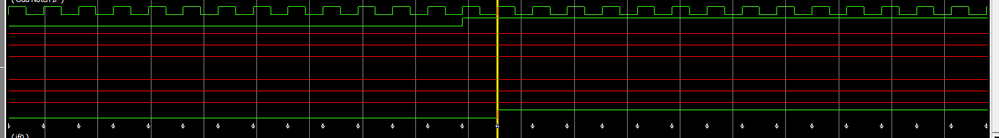

When I simulate in Questa Intel FPGA Edition, I get the following screenshot. The clock is at the top. Followed by one of the non-clocked interface signals. The very bottom signal is the same signal inside of the clocking block.

The cursor shows where the posedge of the clock is and where the error occurs. The input sampling of the clocking block should mean that the value of the signal is sampled in the preponed region of that time slot. That value (1) should be used for any following statements executed in that time slot but the old value (0) is still being used.

The code that uses the clock blocking signals looks like this:

@ (posedge clk);
if (interface_name.cb.in0 == '0)    return '0;
else return '1;

The above code is executing the if branch instead of the else branch.

Am I not understanding something?

6 Replies

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Assuming I understand correctly what you are doing, in your code snippet, you're using the clocking block signal interface_name.cb.in0 inside the @ (posedge clk) block. However, the clocking block signal is not guaranteed to have its value updated until the end of the clocking block. This means that if you're using the signal inside the @ (posedge clk) block, you may be getting the old value of the signal.


    You can move the signal access outside of the clocking block and into a separate always block that triggers on the clock edge. For example:


    always @(posedge clk) begin

    if (interface_name.in0 == 1'b0) begin

    // Do something if in0 is low

    end else begin

    // Do something else if in0 is high

    end

    end


    By doing this, you're ensuring that you're sampling the signal at the correct time (on the clock edge) and not relying on the timing of the clocking block.


    • TuckerZ's avatar
      TuckerZ
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      When exactly does the end of the clocking block occur?

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    When exactly does the end of the clocking block occur?

    - clocking block remains active until the end of the block is reached which is 'endclocking' keyword


    Note: Clocking block is only used to define the timing of the signals within the block. It does not actually sample or modify the signals themselves. The signal values are still sampled on the edges of the clock signal outside of the clocking block.


    • TuckerZ's avatar
      TuckerZ
      Icon for Occasional Contributor rankOccasional Contributor
      2 years ago

      And you suggest to just remove the clocking block entirely from the code to avoid this race condition?

  • SyafieqS's avatar
    SyafieqS
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    No, I'm not suggesting that you remove the clocking block entirely from your code. Clocking blocks are a powerful construct that can help ensure that signals are synchronized to the clock edge and can help prevent race condition

    However, in some cases, you may want to use signals outside of the clocking block to avoid issues with signal updates. You can still use the clocking block to define the timing of the signals, but you can read the values of the signals outside of the block to ensure that you are getting the updated values.
