Chip planner

Hi I'd like to know how can I know how many resources exist in region lock that I choosen ? The property tab includes wrong values of DSP / M20K Do you have any user guide for it ?
Hdl
ymiler's avatar
ymiler
Icon for Contributor rankContributor
2 years ago

Hi

I'd like to understand what size of LL I should select. Is there an option in the "Chip Planner" tool to determine whether my selection (logic lock) is smaller or larger?

My design includes a lot of logic elements, I don't want to wait 10 hours to know if there is enough space in the LL area.

sstrell's avatar
sstrell
Icon for Super Contributor rankSuper Contributor
2 years ago

Again, you can use the compilation without LL regions as a guide. You could also create your LL region as unlocked/floating, allowing the Fitter to select a size and location for the region. You can then customize the resulting Fitter-created region based on this result (which you would want to do because the Fitter will only make it big enough to contain the assigned logic).

  • ymiler's avatar
    ymiler
    Icon for Contributor rankContributor
    2 years ago

    OK

    Thank you.

    what about my previous question:

    I get information about the region lock from the chip planner, but it seems that something wrong with the data.

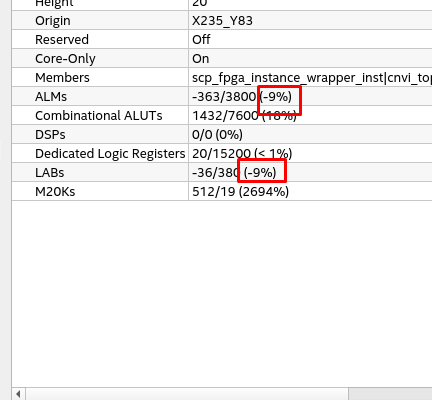

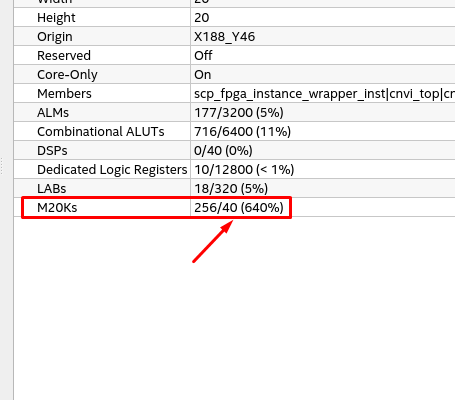

    can you explain the info about the M20K below:

    and what about another screenshot:

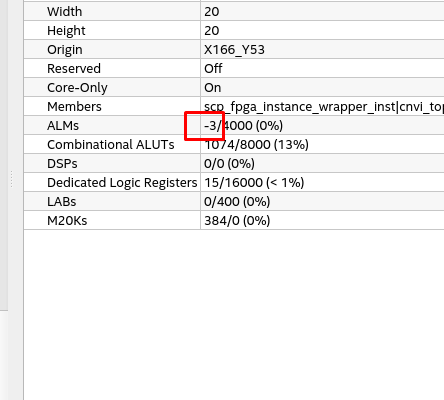

    How can I have -3 ALM ???

    same question about the percentage:

    Quartus version 22.3
